Projet actuel
| Détroit de Davis/Plate-forme du Groenland occidental: DW-08 | |||
|---|---|---|---|
| Entreprise: | HUSKY OIL | Contractor: | WAVEFIELD INSEIS ASA |
| Latitude minimale et maximale: |
66.8 69.3 | Longitude minimale et maximale: |
-60.1 -55.7 |
| Année | 2008 | Description: | 7000 KM 2-D SURVEY DONE ON THE WEST GREENLAND KANGERLUK & IKERMIUT BLOCKS |
Pour obtenir de plus amples renseignements, veuillez nous contacter:
Service géologique du Danemark et du Groenland
Øster Voldgade 10, DK-1350
Copenhaque K, Danemark
téléphone: +45 38 14 20 00
télécopieur: +45 38 14 20 50
courriel: ghexis@geus.dk
communiquer avec:
titre:
Site web: http://www.geus.dk/geuspage-fr.htm

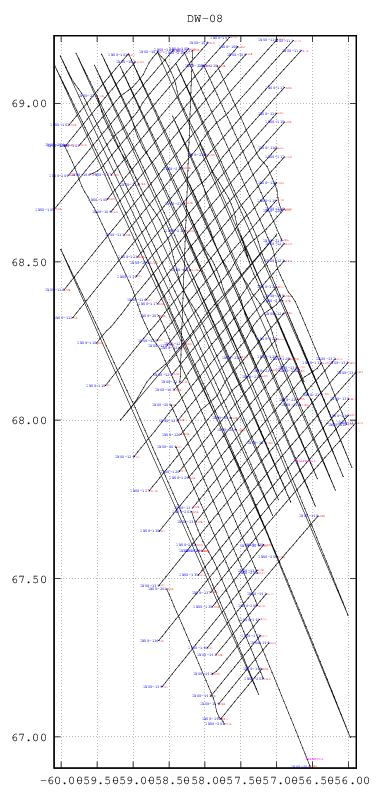

Carte et tableau des données
number of wells on plot: 2
Téléchargez cette parcelle de terrain dedans: Postscript format. Cliquetez la parcelle de terrain pour une grande version de JPEG.
66 rangées de données ont été retournées
(Toutes les coordonnées | Précision des données)Exporter vers Excel | Version imprimable (format grand tableau)
| Ligne | Distance linéaire (kilomètres) | Début des points de tir | Latitude du début des points de tir | Longitude du début des points de tir | Fin des points de tir | Latitude de la fin des points de tir | Longitude de la fin des points de tir |
|---|---|---|---|---|---|---|---|
| DW08-101 | 40.65 | 1001 | 68.93 | -59.89 | 2627 | 69.15 | -59.08 |
| DW08-102 | 48.45 | 10795 | 68.87 | -59.93 | 12733 | 69.13 | -58.97 |
| DW08-103 | 54.9 | 1060 | 68.87 | -59.75 | 3256 | 69.16 | -58.65 |
| DW08-104 | 73.17 | 1001 | 68.77 | -59.9 | 3928 | 69.17 | -58.44 |
| DW08-105 | 93.97 | 1001 | 68.67 | -60.1 | 4760 | 69.17 | -58.23 |
| DW08-106 | 80.38 | 1945 | 68.78 | -59.6 | 5158 | 69.19 | -57.96 |
| DW08-107 | 81.85 | 1390 | 68.77 | -59.3 | 4664 | 69.21 | -57.66 |
| DW08-108 | 90.55 | 1080 | 68.7 | -59.36 | 4702 | 69.18 | -57.54 |
| DW08-109 | 93.78 | 2540 | 68.66 | -59.31 | 6291 | 69.16 | -57.43 |
| DW08-110 | 148.7 | 1001 | 68.41 | -59.96 | 6949 | 69.2 | -56.99 |
| DW08-111 | 116.8 | 1001 | 68.58 | -59.12 | 5673 | 69.2 | -56.77 |
| DW08-112 | 159.4 | 795 | 68.32 | -59.84 | 7171 | 69.17 | -56.66 |
| DW08-113 | 101.98 | 1001 | 68.51 | -58.94 | 5080 | 69.05 | -56.89 |
| DW08-114 | 97.77 | 795 | 68.45 | -58.95 | 4706 | 68.97 | -57 |
| DW08-115 | 132 | 1001 | 68.24 | -59.51 | 6281 | 68.94 | -56.89 |
| DW08-116 | 91.28 | 795 | 68.38 | -58.82 | 4446 | 68.86 | -57 |
| DW08-117 | 88.67 | 1001 | 68.37 | -58.66 | 4548 | 68.83 | -56.89 |
| DW08-118 | 121.1 | 795 | 68.11 | -59.38 | 5639 | 68.75 | -57 |
| DW08-119 | 84.07 | 795 | 68.25 | -58.66 | 4158 | 68.69 | -57 |
| DW08-120 | 82.27 | 1001 | 68.24 | -58.53 | 4292 | 68.67 | -56.9 |
| DW08-121 | 110.9 | 2500 | 68.23 | -58.35 | 12600 | 68.58 | -57 |
| DW08-122 | 78.98 | 1001 | 68.14 | -58.46 | 4160 | 68.56 | -56.9 |
| DW08-123 | 77.78 | 1001 | 68.1 | -58.43 | 4112 | 68.5 | -56.9 |
| DW08-124 | 101.77 | 795 | 67.89 | -58.99 | 4866 | 68.42 | -57 |
| DW08-125 | 75.27 | 1001 | 68 | -58.38 | 4012 | 68.39 | -56.9 |
| DW08-126 | 73.38 | 11001 | 67.95 | -58.34 | 13936 | 68.34 | -56.9 |
| DW08-127 | 91.27 | 20795 | 67.78 | -58.77 | 24446 | 68.26 | -57 |
| DW08-128 | 69.48 | 795 | 67.84 | -58.35 | 3574 | 68.2 | -57 |
| DW08-129 | 72.18 | 1001 | 67.82 | -58.23 | 13888 | 68.19 | -56.82 |
| DW08-130 | 98.98 | 795 | 67.65 | -58.63 | 4754 | 68.17 | -56.72 |
| DW08-131 | 90.69 | 1001 | 67.72 | -58.17 | 4628 | 68.18 | -56.38 |
| DW08-132 | 99.38 | 1001 | 67.68 | -58.12 | 4976 | 68.19 | -56.19 |
| DW08-133 | 135.7 | 795 | 67.48 | -58.64 | 6223 | 68.18 | -56.01 |
| DW08-134 | 109.8 | 1001 | 67.59 | -58.04 | 5393 | 68.15 | -55.9 |
| DW08-135 | 108 | 795 | 67.51 | -58.09 | 5115 | 68.07 | -56 |
| DW08-136 | 137.31 | 795 | 67.3 | -58.64 | 6287 | 68.02 | -56 |
| DW08-137 | 104.3 | 1001 | 67.46 | -57.92 | 5173 | 67.99 | -55.9 |
| DW08-138 | 37.68 | 1001 | 67.41 | -57.9 | 2508 | 67.61 | -57.18 |
| DW08-139 | 70.17 | 795 | 67.16 | -58.6 | 3602 | 67.53 | -57.27 |
| DW08-140 | 80.57 | 795 | 67.28 | -57.97 | 4018 | 67.7 | -56.42 |
| DW08-141 | 36.85 | 1001 | 67.26 | -57.84 | 2475 | 67.45 | -57.15 |
| DW08-142 | 34.42 | 2290 | 67.2 | -57.9 | 3666 | 67.37 | -57.24 |
| DW08-143 | 36.55 | 795 | 67.13 | -57.92 | 2257 | 67.32 | -57.23 |
| DW08-144 | 36.95 | 1001 | 67.1 | -57.8 | 2479 | 67.3 | -57.11 |
| DW08-145 | 30.38 | 1001 | 67.21 | -57.21 | 2216 | 67.06 | -57.78 |
| DW08-201 | 58.75 | 1001 | 67.47 | -58.53 | 3351 | 67.04 | -57.73 |
| DW08-202 | 194.93 | 6000 | 67.61 | -58.13 | 16100 | 68.54 | -60.01 |
| DW08-203 | 72.78 | 1001 | 67.71 | -58.19 | 3912 | 67.18 | -57.19 |
| DW08-204 | 138 | 795 | 67.91 | -58.4 | 6315 | 66.91 | -56.54 |
| DW08-205 | 87.08 | 795 | 68.05 | -58.47 | 4278 | 67.41 | -57.27 |
| DW08-206 | 187.5 | 795 | 68.87 | -59.96 | 8295 | 67.52 | -57.27 |
| DW08-207 | 99.95 | 1001 | 68.33 | -58.64 | 4999 | 67.6 | -57.24 |
| DW08-208 | 292.15 | 9600 | 67.57 | -56.99 | 34500 | 69.12 | -60.09 |
| DW08-209 | 202.13 | 7200 | 68.01 | -57.64 | 17400 | 69.15 | -60.01 |
| DW08-210 | 195 | 1560 | 69.02 | -59.5 | 13117 | 67.75 | -56.98 |
| DW08-211 | 190.32 | 7600 | 67.93 | -57.15 | 24600 | 69.12 | -59.54 |
| DW08-212 | 243.15 | 6100 | 68.2 | -57.5 | 23900 | 69.16 | -59.44 |
| DW08-213 | 190.73 | 6400 | 68.14 | -57.22 | 33400 | 69.12 | -59.18 |
| DW08-214 | 184.23 | 6300 | 68.16 | -57.07 | 22800 | 69.16 | -59.06 |
| DW08-215 | 161.35 | 6800 | 68.07 | -56.71 | 16900 | 68.96 | -58.45 |
| DW08-216 | 183.23 | 6300 | 68.15 | -56.71 | 32600 | 69.16 | -58.66 |
| DW08-217 | 173.73 | 6700 | 68.08 | -56.37 | 25100 | 69.12 | -58.4 |
| DW08-218 | 160.1 | 795 | 69.16 | -58.29 | 7199 | 67.99 | -56.03 |
| DW08-219 | 75.57 | 1001 | 69.12 | -58.01 | 4024 | 68.57 | -56.93 |
| DW08-220 | 62.38 | 11001 | 69.12 | -57.83 | 13496 | 68.66 | -56.93 |
| DW08-221 | 116.95 | 1001 | 69.17 | -58.17 | 5679 | 68.12 | -58.35 |
