| Détroit de Davis/Plate-forme du Groenland occidental: GREEN-00 | |||
|---|---|---|---|
| Entreprise: | TGS-NOPEC | Contractor: | GECO-PRAKLA |
| Latitude minimale et maximale: |
62.9 66.7 | Longitude minimale et maximale: |
-58.5 -53 |
| Année | 2000 | Description: | 4526 KM NON-EXCLUSIVE 2-D SEISMIC SURVEY - BETWEEN THE FYLLA AND SISIMIUT WEST AREAS |
Pour obtenir de plus amples renseignements, veuillez nous contacter:
TGS
Suite 720 335 8e avenue SW
Calgary, Alberta
téléphone: (403) 781 1710
télécopieur: (403) 781 1700
courriel:
communiquer avec:
titre:
Site web: http://www.tgs.com

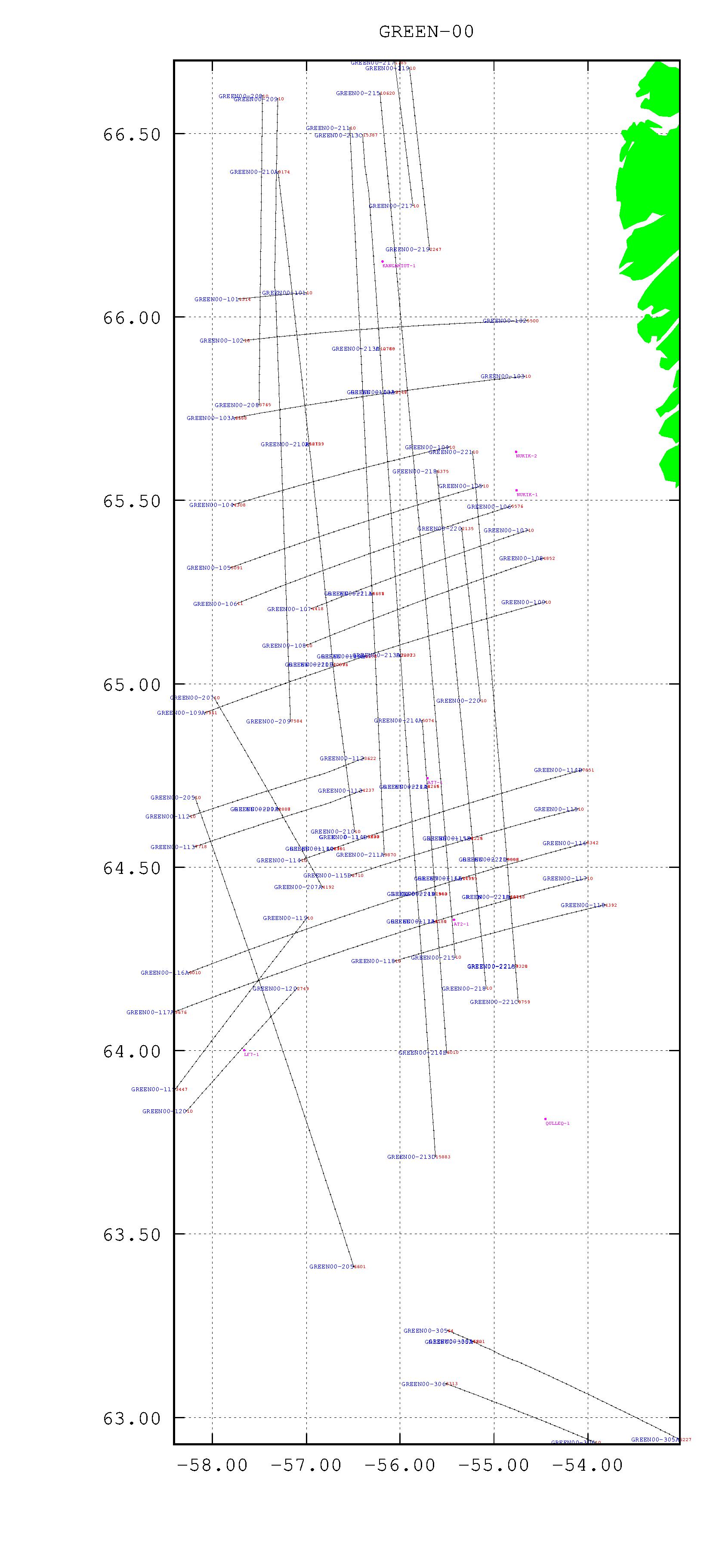

Carte et tableau des données
number of wells on plot: 7
Téléchargez cette parcelle de terrain dedans: Postscript format. Cliquetez la parcelle de terrain pour une grande version de JPEG.
53 rangées de données ont été retournées
(Toutes les coordonnées | Précision des données)Exporter vers Excel | Version imprimable (format grand tableau)
| Ligne | Distance linéaire (kilomètres) | Début des points de tir | Latitude du début des points de tir | Longitude du début des points de tir | Fin des points de tir | Latitude de la fin des points de tir | Longitude de la fin des points de tir |
|---|---|---|---|---|---|---|---|
| GREEN00-101 | 32.6 | 10 | 66.07 | -57 | 1314 | 66.05 | -57.72 |
| GREEN00-102 | 137.25 | 10 | 65.94 | -57.67 | 5500 | 65.99 | -54.65 |
| GREEN00-103 | 63.43 | 10 | 65.84 | -54.67 | 2547 | 65.8 | -56.06 |
| GREEN00-103A | 78.5 | 3548 | 65.8 | -56.06 | 6688 | 65.73 | -57.76 |
| GREEN00-104 | 107.45 | 10 | 65.65 | -55.48 | 4308 | 65.49 | -57.77 |
| GREEN00-105 | 127.02 | 10 | 65.54 | -55.12 | 5091 | 65.32 | -57.8 |
| GREEN00-106 | 139.12 | 11 | 65.22 | -57.74 | 5576 | 65.48 | -54.82 |
| GREEN00-107 | 110.2 | 10 | 65.42 | -54.64 | 4418 | 65.2 | -56.95 |
| GREEN00-108 | 121.05 | 10 | 65.1 | -57 | 4852 | 65.34 | -54.48 |
| GREEN00-109 | 91.68 | 10 | 65.22 | -54.45 | 3677 | 65.07 | -56.38 |
| GREEN00-109A | 82.08 | 4678 | 65.07 | -56.38 | 7961 | 64.92 | -58.08 |
| GREEN00-112 | 90.27 | 10 | 64.64 | -58.24 | 3622 | 64.8 | -56.39 |
| GREEN00-113 | 87.01 | 4237 | 64.71 | -56.4 | 7718 | 64.56 | -58.19 |
| GREEN00-114 | 17.23 | 10 | 64.52 | -57.06 | 699 | 64.55 | -56.71 |
| GREEN00-114B | 111.27 | 3400 | 64.58 | -56.35 | 7851 | 64.77 | -54.06 |
| GREEN00-114C | 17.45 | 8701 | 64.55 | -56.71 | 9399 | 64.58 | -56.35 |
| GREEN00-115 | 55.37 | 10 | 64.66 | -54.1 | 2225 | 64.58 | -55.25 |
| GREEN00-115B | 62.1 | 4226 | 64.58 | -55.25 | 6710 | 64.48 | -56.52 |
| GREEN00-116 | 64.65 | 5756 | 64.47 | -55.34 | 8342 | 64.57 | -54.01 |
| GREEN00-116A | 143.63 | 9010 | 64.21 | -58.25 | 14755 | 64.47 | -55.34 |
| GREEN00-117 | 79.25 | 10 | 64.47 | -54.01 | 3180 | 64.35 | -55.63 |
| GREEN00-117A | 137.38 | 4181 | 64.35 | -55.63 | 9676 | 64.11 | -58.4 |
| GREEN00-118 | 109.55 | 10 | 64.24 | -56.05 | 4392 | 64.4 | -53.82 |
| GREEN00-119 | 85.92 | 10 | 64.36 | -56.99 | 3447 | 63.9 | -58.39 |
| GREEN00-120 | 68.48 | 10 | 63.84 | -58.28 | 2749 | 64.17 | -57.1 |
| GREEN00-205 | 164.77 | 10 | 64.69 | -58.19 | 6601 | 63.41 | -56.5 |
| GREEN00-207 | 46.93 | 10 | 64.96 | -57.98 | 1887 | 64.66 | -57.3 |
| GREEN00-207A | 32.6 | 2888 | 64.66 | -57.3 | 4192 | 64.45 | -56.83 |
| GREEN00-208 | 93.87 | 10 | 66.6 | -57.47 | 3765 | 65.76 | -57.5 |
| GREEN00-209 | 189.27 | 10 | 66.59 | -57.3 | 7584 | 64.9 | -57.17 |
| GREEN00-210 | 51.96 | 10 | 64.6 | -56.48 | 2089 | 65.05 | -56.72 |
| GREEN00-210A | 84.05 | 5812 | 65.65 | -56.97 | 9174 | 66.4 | -57.3 |
| GREEN00-210B | 68.08 | 10076 | 65.05 | -56.72 | 12799 | 65.65 | -56.97 |
| GREEN00-211 | 141.9 | 10 | 66.52 | -56.54 | 5686 | 65.25 | -56.3 |
| GREEN00-211A | 79.57 | 6687 | 65.25 | -56.3 | 9870 | 64.53 | -56.17 |
| GREEN00-213A | 93.57 | 7037 | 65.08 | -56 | 10780 | 65.91 | -56.22 |
| GREEN00-213C | 65.48 | 12768 | 65.91 | -56.22 | 15387 | 66.5 | -56.4 |
| GREEN00-213D | 153.5 | 15883 | 63.71 | -55.62 | 22023 | 65.08 | -56 |
| GREEN00-214 | 32.87 | 1950 | 64.43 | -55.63 | 3265 | 64.72 | -55.71 |
| GREEN00-214A | 20.2 | 4266 | 64.72 | -55.71 | 5074 | 64.9 | -55.76 |
| GREEN00-214B | 48.48 | 6010 | 64 | -55.51 | 7949 | 64.43 | -55.63 |
| GREEN00-215 | 265.25 | 10 | 64.25 | -55.41 | 10620 | 66.61 | -56.22 |
| GREEN00-217 | 44.38 | 10 | 66.3 | -55.86 | 1785 | 66.69 | -56.06 |
| GREEN00-218 | 159.12 | 10 | 64.17 | -55.08 | 6375 | 65.58 | -55.61 |
| GREEN00-219 | 55.92 | 10 | 66.68 | -55.9 | 2247 | 66.18 | -55.69 |
| GREEN00-220 | 53.13 | 10 | 64.95 | -55.15 | 2135 | 65.42 | -55.34 |
| GREEN00-221 | 124.95 | 10 | 65.63 | -55.23 | 5008 | 64.52 | -54.86 |
| GREEN00-221A | 21.23 | 6471 | 64.42 | -54.83 | 7320 | 64.23 | -54.77 |
| GREEN00-221C | 10.95 | 9321 | 64.23 | -54.77 | 9759 | 64.13 | -54.74 |
| GREEN00-221D | 11.55 | 9996 | 64.52 | -54.86 | 10458 | 64.42 | -54.83 |
| GREEN00-305 | 13.89 | 64 | 63.24 | -55.49 | 620 | 63.21 | -55.23 |
| GREEN00-305A | 115.15 | 1621 | 63.21 | -55.22 | 6227 | 62.94 | -53.02 |
| GREEN00-306 | 82.58 | 10 | 62.93 | -53.92 | 3313 | 63.09 | -55.51 |
