Production
| Current Wells | Production | |||||
| Location | Drilling | Testing | Reports | E-logs | Samples | |
| Pressure | Geochem | Temperature | Maturity | Lithostrat | Biostrat | |
Current well
| HMDC HIBERNIA B-16 45 | |
|---|---|
| Unique Well ID: | 345 B16 46500 48450 |
| GSC#: | N256 |
| Spud Date: | 26-FEB-2004 |
| Area: | Grand Banks |
| Well Class: | DEVELOPMENT |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | GAS |
| Oil: | OIL |
| RT: | 76 M |
| WD: | 80 M |
| Field: | HIBERNIA |
| TD: | 4617 M |
| TVD: | 3982.3 M |
| Status: | ABAND |
Yearly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Yearly Volume | Cumulative Volume | Units | Data Source |
|---|---|---|---|---|---|
| 2004 | GAS | 3780.5 | 3780.5 | 1000 M3 | CNLOPB |
| 2005 | GAS | 99648 | 103428.5 | 1000 M3 | CNLOPB |
| 2006 | GAS | 30952.1 | 134380.6 | 1000 M3 | CNLOPB |
| 2007 | GAS | 38393.8 | 172774.4 | 1000 M3 | CNLOPB |
| 2008 | GAS | 83738.2 | 256512.6 | 1000 M3 | CNLOPB |
| 2009 | GAS | 61380.2 | 317892.8 | 1000 M3 | CNLOPB |
| 2010 | GAS | 51676.3 | 369569.1 | 1000 M3 | CNLOPB |
| 2011 | GAS | 28233 | 397802.1 | 1000 M3 | CNLOPB |
| 2012 | GAS | 4638.4 | 402440.5 | 1000 M3 | CNLOPB |
| 2004 | OIL | 16644.4 | 16644.4 | M3 | CNLOPB |
| 2005 | OIL | 416266.4 | 432910.8 | M3 | CNLOPB |
| 2006 | OIL | 113877.6 | 546788.4 | M3 | CNLOPB |
| 2007 | OIL | 144293.1 | 691081.5 | M3 | CNLOPB |
| 2008 | OIL | 316638.2 | 1007719.7 | M3 | CNLOPB |
| 2009 | OIL | 227140.8 | 1234860.5 | M3 | CNLOPB |
| 2010 | OIL | 196244.1 | 1431104.6 | M3 | CNLOPB |
| 2011 | OIL | 105075.2 | 1536179.8 | M3 | CNLOPB |
| 2012 | OIL | 17441.6 | 1553621.4 | M3 | CNLOPB |
| 2004 | WATER | 107.9 | 107.9 | M3 | CNLOPB |
| 2005 | WATER | 239861.8 | 239969.7 | M3 | CNLOPB |
| 2006 | WATER | 447835.6 | 687805.3 | M3 | CNLOPB |
| 2007 | WATER | 41.7 | 687847 | M3 | CNLOPB |
| 2008 | WATER | 529069.5 | 1216916.5 | M3 | CNLOPB |
| 2009 | WATER | 780089.9 | 1997006.4 | M3 | CNLOPB |
| 2010 | WATER | 734615.08 | 2731621.48 | M3 | CNLOPB |
| 2011 | WATER | 335942.42 | 3067563.9 | M3 | CNLOPB |
| 2012 | WATER | 41883.1 | 3109447 | M3 | CNLOPB |
Monthly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | Units | Data Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2004 | GAS | 2190.1 | 0 | 1590.4 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB | |||||
| 2004 | OIL | 9602.3 | 0 | 7042.1 | 0 | 0 | 0 | 0 | M3 | CNLOPB | |||||
| 2004 | WATER | 82.2 | 0 | 25.7 | 0 | 0 | 0 | 0 | M3 | CNLOPB | |||||
| 2005 | GAS | 0 | 5155.1 | 13046.3 | 16731.5 | 8508.5 | 11201.3 | 18324.2 | 14755.5 | 7818 | 4107.6 | 1000 M3 | CNLOPB | ||
| 2005 | OIL | 0 | 21461.3 | 58976.5 | 75038 | 36624.9 | 44719.3 | 74360.4 | 61928.5 | 29205.6 | 13951.9 | M3 | CNLOPB | ||
| 2005 | WATER | 0 | 61.3 | 145.6 | 187.4 | 79.9 | 79.9 | 8446.9 | 51949.4 | 79367.4 | 99544 | M3 | CNLOPB | ||
| 2006 | GAS | 2685.5 | 2397.2 | 2347.5 | 2300.1 | 1936.9 | 2842 | 2726 | 3582.1 | 3674 | 3218.4 | 3242.4 | 1000 M3 | CNLOPB | |
| 2006 | OIL | 10403.7 | 8813.8 | 8544.3 | 6401.8 | 5621.8 | 9786.8 | 11060.7 | 13907 | 13803.8 | 12844.4 | 12689.5 | M3 | CNLOPB | |
| 2006 | WATER | 69057.8 | 80786.1 | 94910.7 | 74148.9 | 75054.6 | 53764.4 | 22.4 | 30.4 | 22 | 20.5 | 17.8 | M3 | CNLOPB | |
| 2007 | GAS | 1988.6 | 1448.3 | 2388.2 | 3192.4 | 3494.5 | 2887.3 | 5337.9 | 3422.9 | 2902.7 | 7297.3 | 525.6 | 3508.1 | 1000 M3 | CNLOPB |
| 2007 | OIL | 6474.8 | 4926.6 | 9194.9 | 12636.9 | 13741.8 | 12483.5 | 19934.5 | 13567.8 | 10671.5 | 26560.6 | 1801.2 | 12299 | M3 | CNLOPB |
| 2007 | WATER | 4.9 | 0 | 4.2 | 6.7 | 0 | 0 | 0 | 0 | 4.6 | 17.6 | 2 | 1.7 | M3 | CNLOPB |
| 2008 | GAS | 2857 | 12560.4 | 14967.1 | 10194.6 | 9815.5 | 7462.9 | 5251.8 | 3864.3 | 5038.8 | 5525.1 | 2259.1 | 3941.6 | 1000 M3 | CNLOPB |
| 2008 | OIL | 11964.4 | 52669.3 | 63281.6 | 40243.1 | 33955.8 | 26874.9 | 18555.3 | 12681.2 | 16380.3 | 20754.5 | 6481.9 | 12795.9 | M3 | CNLOPB |
| 2008 | WATER | 9.4 | 98 | 8853.1 | 38595 | 62853.2 | 49923.9 | 41486.4 | 48529.5 | 61023 | 63623.6 | 55028.5 | 99045.9 | M3 | CNLOPB |
| 2009 | GAS | 5290.9 | 5900.1 | 5137.1 | 6539.3 | 1247.8 | 2985 | 7077.8 | 5322.2 | 3625.4 | 6072.4 | 5615.1 | 6567.1 | 1000 M3 | CNLOPB |
| 2009 | OIL | 21147.7 | 22134.1 | 18360.4 | 23629.6 | 5045.6 | 11506.3 | 25074.9 | 21711 | 20367.4 | 18840.7 | 15751.5 | 23571.6 | M3 | CNLOPB |
| 2009 | WATER | 70314.3 | 69573.8 | 66301.6 | 75404 | 22883.2 | 47186.8 | 60682.7 | 60545 | 61032.3 | 87417 | 74120.4 | 84628.8 | M3 | CNLOPB |
| 2010 | GAS | 5013.5 | 4206.5 | 4707.4 | 4255.8 | 5220.9 | 4313.7 | 3153.8 | 3057.9 | 4566.8 | 3573.7 | 4318.6 | 5287.7 | 1000 M3 | CNLOPB |
| 2010 | OIL | 18548.2 | 14231.1 | 21020.9 | 14638.1 | 25944.5 | 15794.5 | 11955.5 | 11751.2 | 18307 | 11310.3 | 13764.5 | 18978.3 | M3 | CNLOPB |
| 2010 | WATER | 61560.1 | 60111 | 63032.1 | 70386.2 | 62492.8 | 57625.7 | 59100.07 | 59123.87 | 57987.49 | 62540.75 | 54265.1 | 66389.9 | M3 | CNLOPB |
| 2011 | GAS | 5488.6 | 1725.9 | 4686.4 | 4965.7 | 3326.8 | 94.7 | 1067.7 | 2414 | 1443.1 | 1808.8 | 1211.3 | 0 | 1000 M3 | CNLOPB |
| 2011 | OIL | 19893 | 5473.7 | 17577.5 | 20498.9 | 12815.6 | 367.4 | 3391 | 7410.1 | 6506.8 | 6163.8 | 4977.4 | 0 | M3 | CNLOPB |
| 2011 | WATER | 54096.59 | 38508.02 | 26252.37 | 32077.85 | 25528.19 | 1323.5 | 9130.2 | 20240.4 | 46327.1 | 48779.3 | 33678.9 | 0 | M3 | CNLOPB |
| 2012 | GAS | 0 | 0 | 0 | 0 | 0 | 4638.4 | 0 | 0 | 0 | 1000 M3 | CNLOPB | |||
| 2012 | OIL | 0 | 0 | 0 | 0 | 0 | 17441.6 | 0 | 0 | 0 | M3 | CNLOPB | |||
| 2012 | WATER | 0 | 0 | 0 | 0 | 0 | 41883.1 | 0 | 0 | 0 | M3 | CNLOPB |

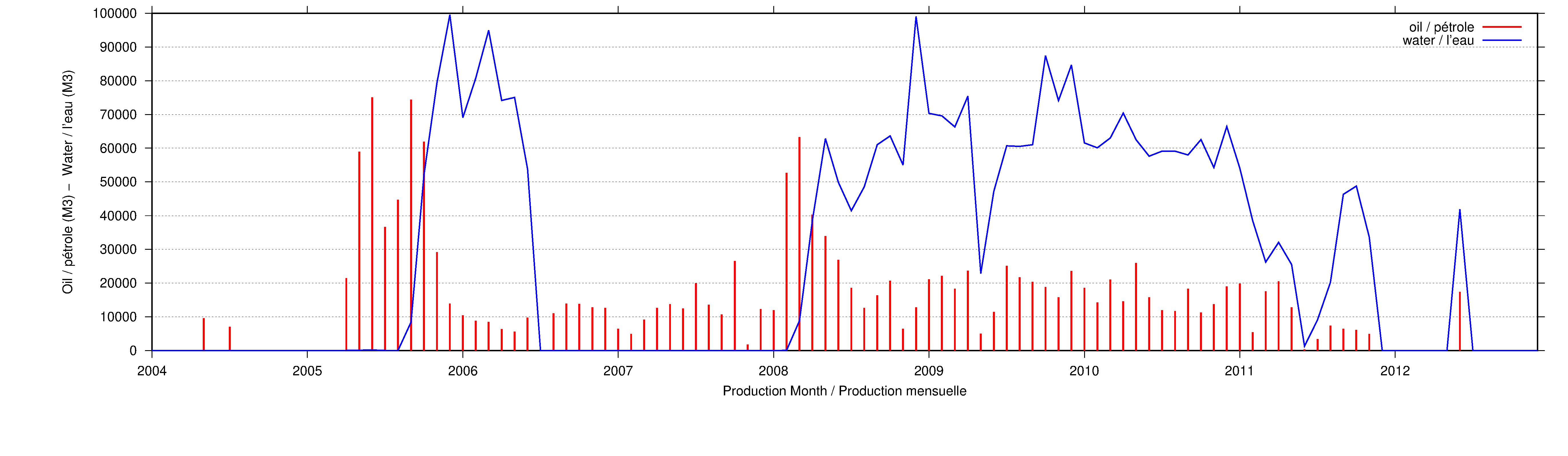

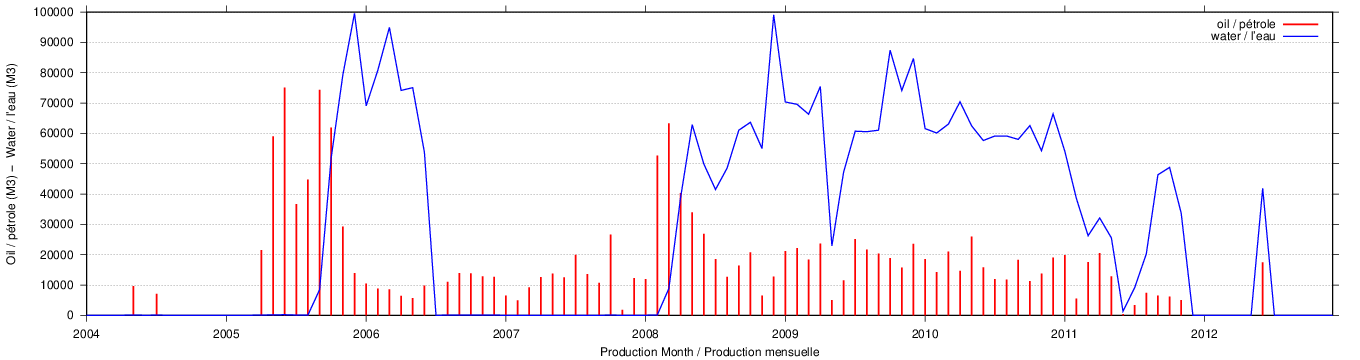

Oil & Water Production
Please note that the oil units and the water units are both cubic metres
Download this plot in Postscript format. Click the plot for a large JPEG version.
