Production
| Current Wells | Production | |||||
| Location | Drilling | Testing | Reports | E-logs | Samples | |
| Pressure | Geochem | Temperature | Maturity | Lithostrat | Biostrat | |
Current well
| PETRO-CANADA ET AL TERRA NOVA G-90 9 | |
|---|---|
| Unique Well ID: | 309 G90 46300 48150 |
| GSC#: | N291 |
| Spud Date: | 29-SEP-2005 |
| Area: | Grand Banks |
| Well Class: | DEVELOPMENT |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | GAS |
| Oil: | OIL |
| RT: | 21.15 M |
| WD: | 94 M |
| Field: | TERRA NOVA |
| TD: | 3863 M |
| TVD: | M |
| Status: | PROD |
Yearly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Yearly Volume | Cumulative Volume | Units | Data Source |
|---|---|---|---|---|---|
| 2011 | GAS | 65833.4 | 65833.4 | 1000 M3 | CNLOPB |
| 2012 | GAS | 42505.2 | 108338.6 | 1000 M3 | CNLOPB |
| 2013 | GAS | 44374.9 | 152713.5 | 1000 M3 | CNLOPB |
| 2014 | GAS | 35076 | 187789.5 | 1000 M3 | CNLOPB |
| 2015 | GAS | 16534.3 | 204323.8 | 1000 M3 | CNLOPB |
| 2016 | GAS | 3128.2 | 207452 | 1000 M3 | CNLOPB |
| 2017 | GAS | 5524.5 | 212976.5 | 1000 M3 | CNLOPB |
| 2019 | GAS | 7929 | 220905.5 | 1000 M3 | CNLOPB |
| 2024 | GAS | 2892.5 | 223798 | 1000 M3 | CNLOPB |
| 2025 | GAS | 12047.4 | 235845.4 | 1000 M3 | CNLOPB |
| 2026 | GAS | 8031 | 243876.4 | 1000 M3 | CNLOER |
| 2011 | OIL | 462476.8 | 462476.8 | M3 | CNLOPB |
| 2012 | OIL | 302311.9 | 764788.7 | M3 | CNLOPB |
| 2013 | OIL | 339494.2 | 1104282.9 | M3 | CNLOPB |
| 2014 | OIL | 267949.8 | 1372232.7 | M3 | CNLOPB |
| 2015 | OIL | 131512.9 | 1503745.6 | M3 | CNLOPB |
| 2016 | OIL | 25322.2 | 1529067.8 | M3 | CNLOPB |
| 2017 | OIL | 43066.8 | 1572134.6 | M3 | CNLOPB |
| 2019 | OIL | 58325.2 | 1630459.8 | M3 | CNLOPB |
| 2024 | OIL | 26972.8 | 1657432.6 | M3 | CNLOPB |
| 2025 | OIL | 80971.5 | 1738404.1 | M3 | CNLOPB |
| 2026 | OIL | 57350.1 | 1795754.2 | M3 | CNLOER |
| 2011 | WATER | 80904.6 | 80904.6 | M3 | CNLOPB |
| 2012 | WATER | 281189.6 | 362094.2 | M3 | CNLOPB |
| 2013 | WATER | 509178.3 | 871272.5 | M3 | CNLOPB |
| 2014 | WATER | 686927.7 | 1558200.2 | M3 | CNLOPB |
| 2015 | WATER | 410313.5 | 1968513.7 | M3 | CNLOPB |
| 2016 | WATER | 105821.8 | 2074335.5 | M3 | CNLOPB |
| 2017 | WATER | 200473.5 | 2274809 | M3 | CNLOPB |
| 2019 | WATER | 247732.7 | 2522541.7 | M3 | CNLOPB |
| 2024 | WATER | 45981 | 2568522.7 | M3 | CNLOPB |
| 2025 | WATER | 166382.9 | 2734905.6 | M3 | CNLOPB |
| 2026 | WATER | 144263.5 | 2879169.1 | M3 | CNLOER |
Monthly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | Units | Data Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2011 | GAS | 8716.3 | 12921.5 | 18147.1 | 8235.4 | 9015 | 8798.1 | 1000 M3 | CNLOPB | ||||||
| 2011 | OIL | 59761.9 | 90808.3 | 123839.1 | 59110.9 | 65167.6 | 63789 | M3 | CNLOPB | ||||||
| 2011 | WATER | 0 | 0 | 1226.2 | 3516.9 | 28636.6 | 47524.9 | M3 | CNLOPB | ||||||
| 2012 | GAS | 8877.6 | 8996.5 | 8799.8 | 7990.3 | 6613.1 | 1227.9 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2012 | OIL | 64662.2 | 62489.6 | 63029.9 | 55757.4 | 47111.8 | 9261 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2012 | WATER | 60155 | 43873.8 | 43489.7 | 60051.8 | 57458.5 | 16160.8 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2013 | GAS | 0 | 5301.4 | 6659.5 | 3287.2 | 4592.6 | 5217.6 | 5771.9 | 5589.2 | 4070.4 | 0 | 0 | 3885.1 | 1000 M3 | CNLOPB |
| 2013 | OIL | 0 | 40121.4 | 48941.4 | 23451.1 | 34189.8 | 40350 | 45660.4 | 43505.6 | 32264.8 | 0 | 0 | 31009.7 | M3 | CNLOPB |
| 2013 | WATER | 0 | 43702.8 | 52425.6 | 34055.4 | 63137.8 | 74589.8 | 68287.5 | 62616 | 55325.1 | 0 | 0 | 55038.3 | M3 | CNLOPB |
| 2014 | GAS | 3842.5 | 2263.9 | 3964.3 | 3005.4 | 3137.1 | 3295.2 | 4093.7 | 872.2 | 3492.6 | 2212.7 | 2208.3 | 2688.1 | 1000 M3 | CNLOPB |
| 2014 | OIL | 29405.9 | 17632.6 | 29471.3 | 22166.6 | 24326.8 | 24828.6 | 30783.4 | 6381.8 | 26988.7 | 17648.7 | 17262.6 | 21052.8 | M3 | CNLOPB |
| 2014 | WATER | 65869.2 | 60713.7 | 71907.6 | 49955.1 | 71926.8 | 61757.9 | 70737.4 | 13950.4 | 71323.9 | 48461.6 | 46741.3 | 53582.8 | M3 | CNLOPB |
| 2015 | GAS | 2675.9 | 2559.7 | 2784.6 | 1862.3 | 1029.7 | 0 | 386.2 | 2070.4 | 1854.3 | 617.8 | 693.4 | 0 | 1000 M3 | CNLOPB |
| 2015 | OIL | 21850.1 | 19788.9 | 21900.3 | 15277.4 | 7990.7 | 0 | 3109.7 | 16263.4 | 14702.5 | 4960.2 | 5669.7 | 0 | M3 | CNLOPB |
| 2015 | WATER | 59854.1 | 44857.1 | 61401.1 | 47382 | 24925.7 | 0 | 12008.9 | 61156.6 | 54037.6 | 18682.2 | 26008.2 | 0 | M3 | CNLOPB |
| 2016 | GAS | 0 | 0 | .1 | 0 | 0 | 0 | 0 | 353.6 | 232.6 | 856.9 | 934 | 751 | 1000 M3 | CNLOPB |
| 2016 | OIL | 0 | 0 | .5 | 0 | 0 | 0 | .2 | 2951.5 | 1927 | 6922.2 | 7498.3 | 6022.5 | M3 | CNLOPB |
| 2016 | WATER | 0 | 0 | .4 | 0 | 0 | 0 | .1 | 12499.7 | 7594.6 | 23288.8 | 27891.2 | 34547 | M3 | CNLOPB |
| 2017 | GAS | 1125.5 | 895.5 | 959.4 | 598.1 | 556.6 | 673.6 | 715.8 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2017 | OIL | 8735.7 | 7083.2 | 7624 | 4543.6 | 4436.1 | 5379 | 5265.2 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2017 | WATER | 42772.8 | 37536.4 | 37317.6 | 21586.3 | 19397 | 21652.6 | 20210.8 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2018 | GAS | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2018 | OIL | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2018 | WATER | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2019 | GAS | 0 | 0 | 0 | 0 | 0 | 0 | 255.7 | 914.4 | 3090.5 | 890.8 | 1481.2 | 1296.4 | 1000 M3 | CNLOPB |
| 2019 | OIL | 0 | 0 | 0 | 0 | 0 | 0 | 2016.6 | 6840.8 | 22539.1 | 5843.2 | 11262.1 | 9823.4 | M3 | CNLOPB |
| 2019 | WATER | 0 | 0 | 0 | 0 | 0 | 0 | 4667.8 | 23624.4 | 88622.6 | 28892.7 | 59199.5 | 42725.7 | M3 | CNLOPB |
| 2020 | GAS | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2020 | OIL | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2020 | WATER | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2021 | GAS | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2021 | OIL | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2021 | WATER | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2022 | GAS | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2022 | OIL | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2022 | WATER | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2023 | GAS | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2023 | OIL | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2023 | WATER | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2024 | GAS | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1.1 | 0 | .6 | 2890.8 | 1000 M3 | CNLOPB |
| 2024 | OIL | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 9.4 | 0 | 7.4 | 26956 | M3 | CNLOPB |
| 2024 | WATER | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 26.1 | 0 | 9.6 | 45945.3 | M3 | CNLOPB |
| 2025 | GAS | 2546.1 | 1004.2 | 1536.5 | 703 | 1343.3 | 70 | 0 | 0 | 0 | 1775.4 | 1176.3 | 1892.6 | 1000 M3 | CNLOPB |
| 2025 | OIL | 18280.2 | 7012.5 | 9549.4 | 3870.1 | 9278.9 | 456.6 | 0 | 0 | 0 | 12441.7 | 7466.2 | 12615.9 | M3 | CNLOPB |
| 2025 | WATER | 40964.2 | 15087.6 | 20534.5 | 7193.5 | 16917.7 | 728.8 | 0 | 0 | 0 | 19652.5 | 16720.2 | 28583.9 | M3 | CNLOPB |
| 2026 | GAS | 1962.9 | 1668.9 | 1273.8 | 1524.3 | 1302.6 | 298.5 | 1000 M3 | CNLOER | ||||||
| 2026 | OIL | 13880.2 | 12402.5 | 9184.9 | 10444.2 | 9180.9 | 2257.4 | M3 | CNLOER | ||||||
| 2026 | WATER | 31097.5 | 27148.1 | 23015 | 32776.7 | 25002.5 | 5223.7 | M3 | CNLOER |

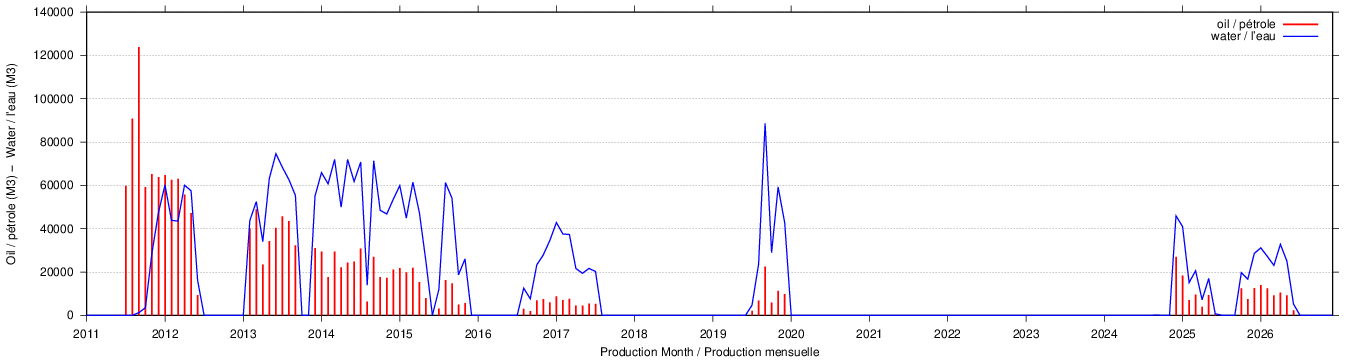

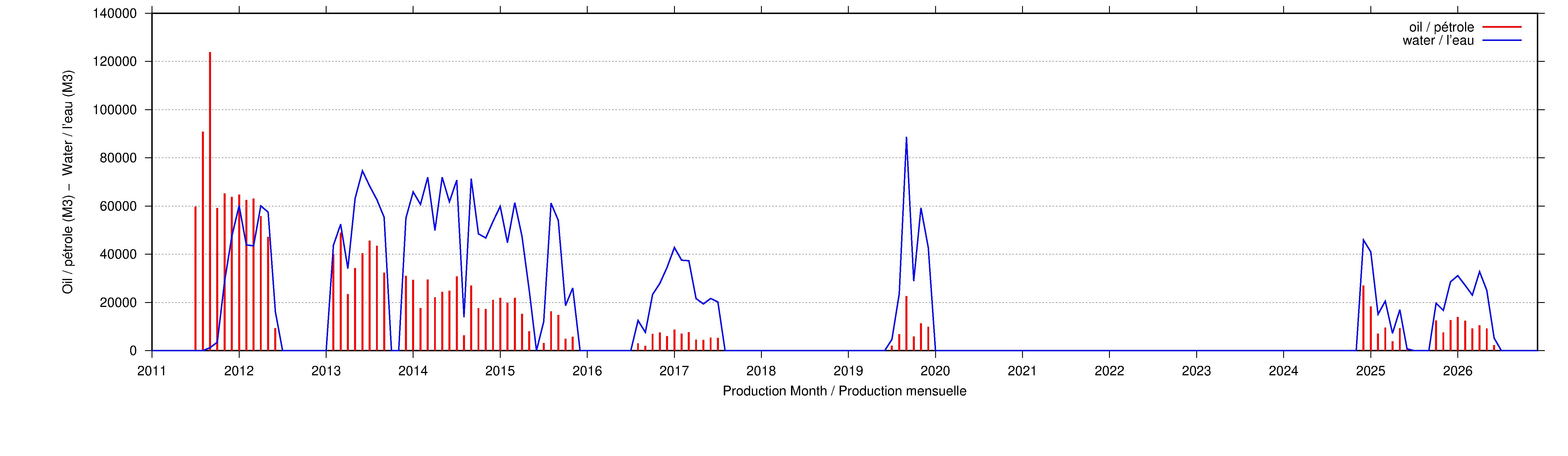

Oil & Water Production
Please note that the oil units and the water units are both cubic metres
Download this plot in Postscript format. Click the plot for a large JPEG version.
