Current well
| HMDC HIBERNIA B-16 13 | |
|---|---|
| Unique Well ID: | 313 B16 46500 48450 |
| GSC#: | N293 |
| Spud Date: | 28-OCT-2005 |
| Area: | Grand Banks |
| Well Class: | DEVELOPMENT |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | GAS |
| Oil: | OIL |
| RT: | 76 M |
| WD: | 80 M |
| Field: | HIBERNIA |
| TD: | 6240 M |
| TVD: | 4187.37 M |
| Status: | ABAND |
Yearly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Yearly Volume | Cumulative Volume | Units | Data Source |
|---|---|---|---|---|---|
| 2006 | GAS | 5997.1 | 5997.1 | 1000 M3 | CNLOPB |
| 2007 | GAS | 10017.6 | 16014.7 | 1000 M3 | CNLOPB |
| 2008 | GAS | 5541.7 | 21556.4 | 1000 M3 | CNLOPB |
| 2009 | GAS | 7706.1 | 29262.5 | 1000 M3 | CNLOPB |
| 2010 | GAS | 4203.5 | 33466 | 1000 M3 | CNLOPB |
| 2011 | GAS | 1641.8 | 35107.8 | 1000 M3 | CNLOPB |
| 2006 | OIL | 30897 | 30897 | M3 | CNLOPB |
| 2007 | OIL | 35020.7 | 65917.7 | M3 | CNLOPB |
| 2008 | OIL | 35301.9 | 101219.6 | M3 | CNLOPB |
| 2009 | OIL | 42180 | 143399.6 | M3 | CNLOPB |
| 2010 | OIL | 15561.7 | 158961.3 | M3 | CNLOPB |
| 2011 | OIL | 10835.6 | 169796.9 | M3 | CNLOPB |
| 2006 | WATER | 4367.8 | 4367.8 | M3 | CNLOPB |
| 2007 | WATER | 174 | 4541.8 | M3 | CNLOPB |
| 2008 | WATER | 37.3 | 4579.1 | M3 | CNLOPB |
| 2009 | WATER | 95 | 4674.1 | M3 | CNLOPB |
| 2010 | WATER | 43.76 | 4717.86 | M3 | CNLOPB |
| 2011 | WATER | 124.44 | 4842.3 | M3 | CNLOPB |
Monthly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | Units | Data Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2006 | GAS | 891.7 | 949.5 | 869.8 | 135.6 | 1302.7 | 926.9 | 570.4 | 350.5 | 1000 M3 | CNLOPB | ||||
| 2006 | OIL | 5423.5 | 2538.6 | 5199.5 | 932.3 | 7826.5 | 4667.5 | 2680.8 | 1628.3 | M3 | CNLOPB | ||||
| 2006 | WATER | 66.6 | 4188.3 | 19.6 | 1.6 | 51.2 | 26 | 8.9 | 5.6 | M3 | CNLOPB | ||||
| 2007 | GAS | 2616.7 | 1800.6 | 2057 | 1705.2 | 109.8 | 0 | 0 | 600.6 | 774.1 | 121.9 | 231.7 | 0 | 1000 M3 | CNLOPB |
| 2007 | OIL | 7866 | 5186.6 | 6389.5 | 5666.3 | 467.6 | 0 | 0 | 3177.9 | 4257.5 | 706 | 1303.3 | 0 | M3 | CNLOPB |
| 2007 | WATER | 49.2 | 35.4 | 39.7 | 38.9 | .6 | 0 | 0 | 3.6 | 4.4 | .8 | 1.4 | 0 | M3 | CNLOPB |
| 2008 | GAS | 640.9 | 689.7 | 281.6 | 0 | 2071.2 | 42.3 | 1198.5 | 0 | 0 | 0 | 29.7 | 587.8 | 1000 M3 | CNLOPB |
| 2008 | OIL | 4012.9 | 6884.1 | 1041.7 | 0 | 11939.6 | 248.4 | 7513.2 | 0 | 0 | 0 | 97.1 | 3564.9 | M3 | CNLOPB |
| 2008 | WATER | 4.2 | 12.2 | 1.6 | 0 | 1.6 | 0 | 10.4 | 0 | 0 | 0 | .1 | 7.2 | M3 | CNLOPB |
| 2009 | GAS | 1546.4 | 701.1 | 867 | 0 | 0 | 521.5 | 1316 | 0 | 561.7 | 0 | 459.9 | 1732.5 | 1000 M3 | CNLOPB |
| 2009 | OIL | 9643.7 | 2239.9 | 2553.6 | 0 | 0 | 4471.4 | 10396.9 | 0 | 4592.4 | 0 | 3407.3 | 4974.8 | M3 | CNLOPB |
| 2009 | WATER | 17.4 | 4.5 | 5.4 | 0 | 0 | 12.2 | 22.5 | 0 | 19 | 0 | 3.8 | 10.2 | M3 | CNLOPB |
| 2010 | GAS | 0 | 2375.2 | 0 | 0 | 0 | 0 | 0 | 263.4 | 272.5 | 1198.5 | 93.9 | 0 | 1000 M3 | CNLOPB |
| 2010 | OIL | 0 | 4470 | 0 | 0 | 0 | 0 | 0 | 1490.8 | 1816.8 | 7242.8 | 541.3 | 0 | M3 | CNLOPB |
| 2010 | WATER | 0 | 35.1 | 0 | 0 | 0 | 0 | 0 | 3.38 | 2.49 | 2.64 | .15 | 0 | M3 | CNLOPB |
| 2011 | GAS | 0 | 0 | 0 | 761.1 | 333.5 | 443.4 | 0 | 55.5 | 48.3 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2011 | OIL | 0 | 0 | 0 | 5396 | 2193.1 | 2840.1 | 0 | 220 | 186.4 | 0 | 0 | 0 | M3 | CNLOPB |
| 2011 | WATER | 0 | 0 | 0 | 60.28 | 26.36 | 33.8 | 0 | 2.6 | 1.4 | 0 | 0 | 0 | M3 | CNLOPB |
| 2012 | GAS | 0 | 1000 M3 | CNLOPB | |||||||||||
| 2012 | OIL | 0 | M3 | CNLOPB | |||||||||||
| 2012 | WATER | 0 | M3 | CNLOPB |

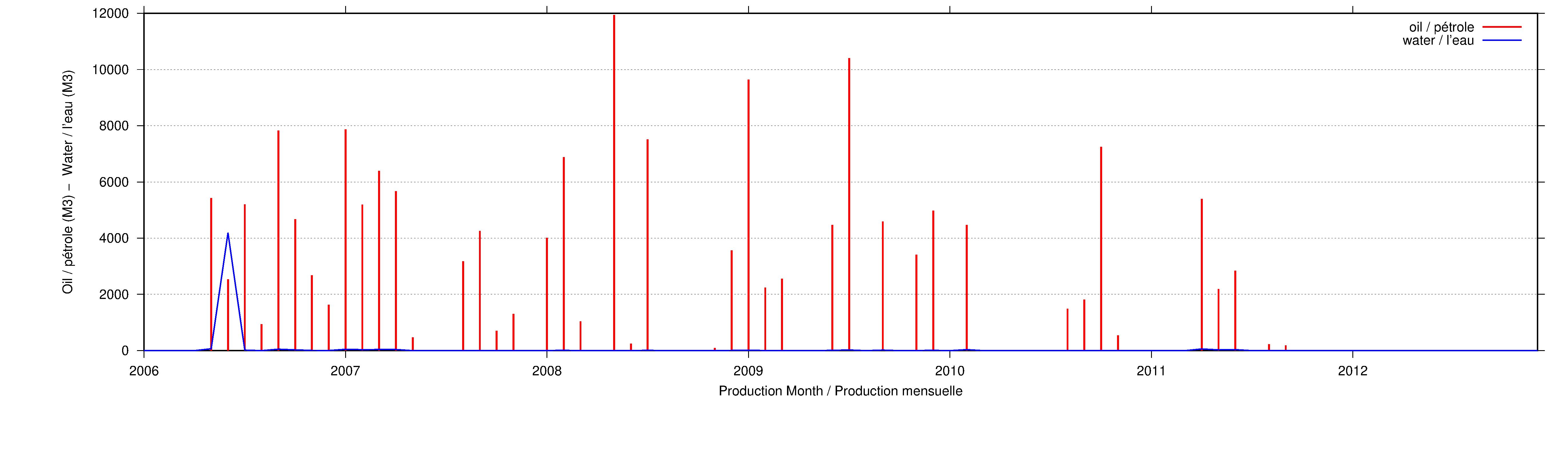

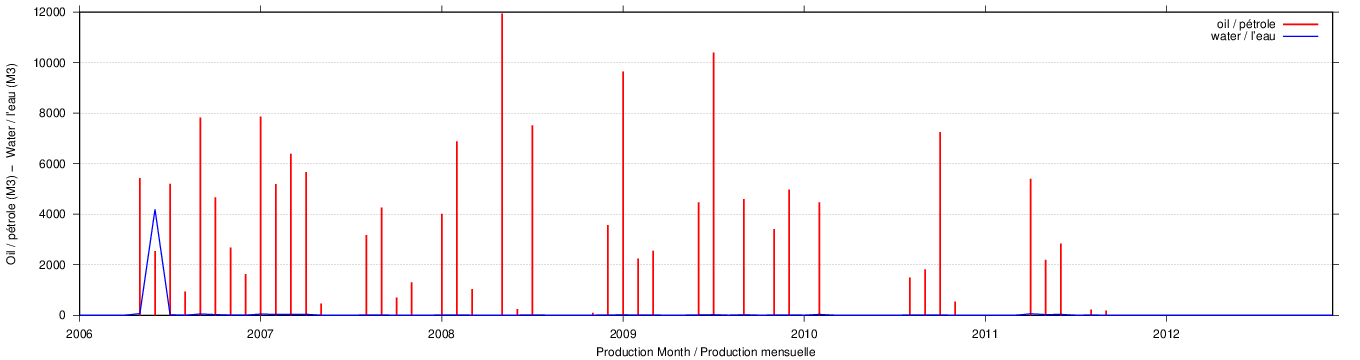

Oil & Water Production
Please note that the oil units and the water units are both cubic metres
Download this plot in Postscript format. Click the plot for a large JPEG version.
