Production
| Current Wells | Production | |||||
| Location | Drilling | Testing | Reports | E-logs | Samples | |
| Pressure | Geochem | Temperature | Maturity | Lithostrat | Biostrat | |
Current well
| HMDC HIBERNIA B-16 59 | |
|---|---|
| Unique Well ID: | 359 B16 46500 48450 |
| GSC#: | N308 |
| Spud Date: | 08-AUG-2006 |
| Area: | Grand Banks |
| Well Class: | DEVELOPMENT |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | GAS |
| Oil: | OIL |
| RT: | 76 M |
| WD: | 80 M |
| Field: | HIBERNIA |
| TD: | 5930 M |
| TVD: | 4159.3 M |
| Status: | PROD |
Yearly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Yearly Volume | Cumulative Volume | Units | Data Source |
|---|---|---|---|---|---|
| 2007 | GAS | 4168.1 | 4168.1 | 1000 M3 | CNLOPB |
| 2008 | GAS | 19134.2 | 23302.3 | 1000 M3 | CNLOPB |
| 2009 | GAS | 81080.9 | 104383.2 | 1000 M3 | CNLOPB |
| 2010 | GAS | 33924.7 | 138307.9 | 1000 M3 | CNLOPB |
| 2011 | GAS | 73666.9 | 211974.8 | 1000 M3 | CNLOPB |
| 2012 | GAS | 65131.9 | 277106.7 | 1000 M3 | CNLOPB |
| 2013 | GAS | 34493.8 | 311600.5 | 1000 M3 | CNLOPB |
| 2014 | GAS | 14711.1 | 326311.6 | 1000 M3 | CNLOPB |
| 2015 | GAS | 20829.9 | 347141.5 | 1000 M3 | CNLOPB |
| 2016 | GAS | 10938.2 | 358079.7 | 1000 M3 | CNLOPB |
| 2017 | GAS | 559.3 | 358639 | 1000 M3 | CNLOPB |
| 2018 | GAS | 954.7 | 359593.7 | 1000 M3 | CNLOPB |
| 2019 | GAS | 1313.2 | 360906.9 | 1000 M3 | CNLOPB |
| 2020 | GAS | 180.1 | 361087 | 1000 M3 | CNLOPB |
| 2021 | GAS | 7350.2 | 368437.2 | 1000 M3 | CNLOPB |
| 2022 | GAS | 3378.9 | 371816.1 | 1000 M3 | CNLOPB |
| 2023 | GAS | 194.6 | 372010.7 | 1000 M3 | CNLOPB |
| 2024 | GAS | 21712 | 393722.7 | 1000 M3 | CNLOPB |
| 2007 | OIL | 55236.6 | 55236.6 | M3 | CNLOPB |
| 2008 | OIL | 171803.6 | 227040.2 | M3 | CNLOPB |
| 2009 | OIL | 686799.1 | 913839.3 | M3 | CNLOPB |
| 2010 | OIL | 296833 | 1210672.3 | M3 | CNLOPB |
| 2011 | OIL | 626574.2 | 1837246.5 | M3 | CNLOPB |
| 2012 | OIL | 585968.4 | 2423214.9 | M3 | CNLOPB |
| 2013 | OIL | 303225.4 | 2726440.3 | M3 | CNLOPB |
| 2014 | OIL | 118156.8 | 2844597.1 | M3 | CNLOPB |
| 2015 | OIL | 139917.5 | 2984514.6 | M3 | CNLOPB |
| 2016 | OIL | 67754.1 | 3052268.7 | M3 | CNLOPB |
| 2017 | OIL | 3096 | 3055364.7 | M3 | CNLOPB |
| 2018 | OIL | 6105.4 | 3061470.1 | M3 | CNLOPB |
| 2019 | OIL | 10992.2 | 3072462.3 | M3 | CNLOPB |
| 2020 | OIL | 1915.5 | 3074377.8 | M3 | CNLOPB |
| 2021 | OIL | 61549.6 | 3135927.4 | M3 | CNLOPB |
| 2022 | OIL | 36367.1 | 3172294.5 | M3 | CNLOPB |
| 2023 | OIL | 1891.2 | 3174185.7 | M3 | CNLOPB |
| 2024 | OIL | 213203.4 | 3387389.1 | M3 | CNLOPB |
| 2007 | WATER | 118.1 | 118.1 | M3 | CNLOPB |
| 2008 | WATER | 99.5 | 217.6 | M3 | CNLOPB |
| 2009 | WATER | 30259.4 | 30477 | M3 | CNLOPB |
| 2010 | WATER | 53857.71 | 84334.71 | M3 | CNLOPB |
| 2011 | WATER | 220535.53 | 304870.24 | M3 | CNLOPB |
| 2012 | WATER | 330238.9 | 635109.14 | M3 | CNLOPB |
| 2013 | WATER | 766423.7 | 1401532.84 | M3 | CNLOPB |
| 2014 | WATER | 98826.6 | 1500359.44 | M3 | CNLOPB |
| 2015 | WATER | 635.3 | 1500994.74 | M3 | CNLOPB |
| 2016 | WATER | 602.4 | 1501597.14 | M3 | CNLOPB |
| 2017 | WATER | .3 | 1501597.44 | M3 | CNLOPB |
| 2019 | WATER | 815.2 | 1502412.64 | M3 | CNLOPB |
| 2020 | WATER | 561.4 | 1502974.04 | M3 | CNLOPB |
| 2021 | WATER | 9868.3 | 1512842.34 | M3 | CNLOPB |
| 2022 | WATER | 10713.1 | 1523555.44 | M3 | CNLOPB |
| 2023 | WATER | 561.5 | 1524116.94 | M3 | CNLOPB |
| 2024 | WATER | 218744.2 | 1742861.14 | M3 | CNLOPB |
Monthly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | Units | Data Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2007 | GAS | .2 | 0 | 368.1 | 554.4 | 9.4 | 1216 | 1047.5 | 433.5 | 376.9 | 88.1 | 74 | 1000 M3 | CNLOPB | |
| 2007 | OIL | 1699.6 | 0 | 3152.2 | 4353.2 | 796 | 11345.6 | 10182.8 | 9385.4 | 4955.2 | 6812.9 | 2553.7 | M3 | CNLOPB | |
| 2007 | WATER | 0 | 0 | 0 | 8.9 | 1.5 | 46.7 | 55.1 | 5.9 | 0 | 0 | 0 | M3 | CNLOPB | |
| 2008 | GAS | 0 | 979.2 | 1063.7 | 1030 | 1342.1 | 1278 | 1121.7 | 2130.5 | 1707.4 | 2364.3 | 2232.8 | 3884.5 | 1000 M3 | CNLOPB |
| 2008 | OIL | 0 | 8414.2 | 10692.8 | 10099.5 | 12557.2 | 11870.1 | 11065.2 | 19468.7 | 14817.2 | 20233.7 | 19336.7 | 33248.3 | M3 | CNLOPB |
| 2008 | WATER | 0 | 0 | 0 | 0 | 0 | 12.5 | 5.9 | 0 | 24.1 | 24.1 | 20.6 | 12.3 | M3 | CNLOPB |
| 2009 | GAS | 7176 | 7846.2 | 7854 | 7997.6 | 3062 | 5241.9 | 8161.9 | 7969.5 | 7872.9 | 6741.1 | 5701.6 | 5456.2 | 1000 M3 | CNLOPB |
| 2009 | OIL | 63511.3 | 65305.5 | 66079.3 | 70981.2 | 26891.7 | 47688.1 | 67030.5 | 64341.9 | 63469.8 | 57965.1 | 45512.8 | 48021.9 | M3 | CNLOPB |
| 2009 | WATER | 72.6 | 87 | 195.7 | 114.8 | 137.3 | 193.6 | 14.2 | 0 | 135.1 | 3745.9 | 9236.6 | 16326.6 | M3 | CNLOPB |
| 2010 | GAS | 2857.1 | 5115.4 | 1792.4 | 0 | 853.5 | 0 | 2692.1 | 1734.9 | 1512.1 | 4165.3 | 6684.2 | 6517.7 | 1000 M3 | CNLOPB |
| 2010 | OIL | 25521.8 | 41536.7 | 15397 | 0 | 7719.4 | 0 | 21337.4 | 15792.6 | 14897.5 | 37991.9 | 58115 | 58523.7 | M3 | CNLOPB |
| 2010 | WATER | 8047.1 | 10899.9 | 3356.5 | 0 | 695.1 | 0 | 454.26 | 1505.64 | 1214.95 | 7133.45 | 10436.31 | 10114.5 | M3 | CNLOPB |
| 2011 | GAS | 7614.1 | 5083.3 | 6253.6 | 8408.3 | 8147.8 | 4475.5 | 5734.6 | 5647.6 | 5183.8 | 5587.1 | 4865.4 | 6665.8 | 1000 M3 | CNLOPB |
| 2011 | OIL | 64970.9 | 44273.9 | 54615.6 | 77085.6 | 67880.8 | 36246.2 | 45741.2 | 47001.8 | 41902.7 | 46194.5 | 44976.8 | 55684.2 | M3 | CNLOPB |
| 2011 | WATER | 18340.26 | 12140.59 | 12609.14 | 21759.95 | 22975.89 | 12776.7 | 19608.8 | 21278 | 18212.3 | 20639.6 | 16563.7 | 23630.6 | M3 | CNLOPB |
| 2012 | GAS | 6519.5 | 7428.9 | 7873.2 | 7818.3 | 7461.4 | 6211 | 5242.7 | 2583.4 | 513.9 | 4977.8 | 4751.6 | 3750.2 | 1000 M3 | CNLOPB |
| 2012 | OIL | 52529.9 | 61935.2 | 68840.4 | 70009.5 | 69284.2 | 63269 | 54027.6 | 26311.5 | 5996.6 | 37316.2 | 42826.7 | 33621.6 | M3 | CNLOPB |
| 2012 | WATER | 25545 | 31773.4 | 25585.4 | 25916.6 | 25554.8 | 23303 | 18851.4 | 9836.1 | 2458.6 | 52624.4 | 47435.8 | 41354.4 | M3 | CNLOPB |
| 2013 | GAS | 3737 | 2987 | 3705.2 | 2887.8 | 3548.3 | 2415.7 | 3174 | 2549.9 | 3031.4 | 1533.1 | 1978.6 | 2945.8 | 1000 M3 | CNLOPB |
| 2013 | OIL | 33739.8 | 24695.7 | 31496.5 | 24470.9 | 31124.2 | 23013.4 | 28092.8 | 22200.8 | 27230 | 16531.3 | 17407 | 23223 | M3 | CNLOPB |
| 2013 | WATER | 47607.6 | 45002.2 | 64449 | 54147.6 | 72051.5 | 50812.3 | 72707.6 | 70398.4 | 83496.4 | 60509.9 | 66053.5 | 79187.7 | M3 | CNLOPB |
| 2014 | GAS | 2508.4 | 1302.7 | 418.7 | 404 | 989.5 | 951.8 | 1019.6 | 1975.5 | 1682.7 | 1304.4 | 1185.9 | 967.9 | 1000 M3 | CNLOPB |
| 2014 | OIL | 19682 | 9037.9 | 4511.1 | 3737.1 | 3688.8 | 6928.3 | 8889.6 | 16887 | 13682.6 | 10515.1 | 11336.3 | 9261 | M3 | CNLOPB |
| 2014 | WATER | 76935.4 | 21807.6 | 9.1 | 1.9 | .3 | 30 | 3.1 | 11.4 | 10.7 | 9.2 | 5 | 2.9 | M3 | CNLOPB |
| 2015 | GAS | 2188.9 | 1090.9 | 2179.6 | 2408 | 2255.6 | 2103.6 | 1183.7 | 2005.4 | 1150.1 | 740.1 | 1299.7 | 2224.3 | 1000 M3 | CNLOPB |
| 2015 | OIL | 16540.8 | 12029.5 | 13786.1 | 13026 | 12676.8 | 12511.7 | 12879.5 | 13302.7 | 6766.8 | 4037.3 | 7848.1 | 14512.2 | M3 | CNLOPB |
| 2015 | WATER | 4.9 | 390.5 | 59.8 | 9.3 | 15.8 | 6.3 | 3.5 | 2.2 | 1 | .4 | 14 | 127.6 | M3 | CNLOPB |
| 2016 | GAS | 4442.1 | 999.4 | 1557.1 | 1336.2 | 452.6 | 549 | 0 | 0 | 75.6 | 598.4 | 0 | 927.8 | 1000 M3 | CNLOPB |
| 2016 | OIL | 25318.4 | 7628.1 | 9733.4 | 8312.1 | 2762.8 | 2939.9 | 0 | 0 | 391.9 | 4300.5 | 0 | 6367 | M3 | CNLOPB |
| 2016 | WATER | 506.2 | 68.2 | 16.4 | 5.9 | .9 | 1.8 | 0 | 0 | .3 | 1.5 | 0 | 1.2 | M3 | CNLOPB |
| 2017 | GAS | 0 | 0 | 0 | 0 | 0 | 559.3 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2017 | OIL | 0 | 0 | 0 | 0 | 0 | 3096 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2017 | WATER | 0 | 0 | 0 | 0 | 0 | .3 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2018 | GAS | 0 | 0 | 0 | 0 | 0 | 222.8 | 0 | 72.5 | 285.1 | 62.2 | 58.1 | 254 | 1000 M3 | CNLOPB |
| 2018 | OIL | 0 | 0 | 0 | 0 | 0 | 1422.5 | 0 | 474.7 | 1814.1 | 443.7 | 348.5 | 1601.9 | M3 | CNLOPB |
| 2018 | WATER | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2019 | GAS | 113 | 232.6 | 455.8 | 0 | 147.7 | 151.6 | 183.6 | 0 | 0 | 28.9 | 0 | 0 | 1000 M3 | CNLOPB |
| 2019 | OIL | 652.5 | 1453.7 | 3403.9 | 0 | 1563.9 | 1641.3 | 1960.1 | 0 | 0 | 316.8 | 0 | 0 | M3 | CNLOPB |
| 2019 | WATER | 0 | 0 | 191 | 0 | 191.6 | 174.4 | 190.8 | 0 | 0 | 67.4 | 0 | 0 | M3 | CNLOPB |
| 2020 | GAS | 68 | 112.1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2020 | OIL | 729.1 | 1186.4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2020 | WATER | 181.8 | 379.6 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2021 | GAS | 0 | 0 | 0 | 0 | 727.5 | 1585.8 | 1536.1 | 1127.6 | 625.9 | 698.1 | 719.2 | 330 | 1000 M3 | CNLOPB |
| 2021 | OIL | 0 | 0 | 0 | 0 | 5093.6 | 10056.3 | 10664.7 | 11621.3 | 6446.5 | 7176.8 | 6910.5 | 3579.9 | M3 | CNLOPB |
| 2021 | WATER | 0 | 0 | 0 | 0 | 643.4 | 458.7 | 729 | 1763.2 | 1395.1 | 1948.1 | 1937.1 | 993.7 | M3 | CNLOPB |
| 2022 | GAS | 514.2 | 439.5 | 517.4 | 298.7 | 202.7 | 362.9 | 180.4 | 245.5 | 195.6 | 149.1 | 17.4 | 255.5 | 1000 M3 | CNLOPB |
| 2022 | OIL | 5893.7 | 5050.5 | 5780.6 | 3187.7 | 2103.5 | 3659.8 | 1895.5 | 2553 | 2064.5 | 1671.3 | 146.4 | 2360.6 | M3 | CNLOPB |
| 2022 | WATER | 1603 | 1259.6 | 1615.3 | 1000.4 | 656.6 | 1207.2 | 650.6 | 824.2 | 685.6 | 482.9 | 40.3 | 687.4 | M3 | CNLOPB |
| 2023 | GAS | 194.6 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2023 | OIL | 1891.2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2023 | WATER | 561.5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2024 | GAS | 886 | 735.8 | 951.3 | 2954.3 | 4007.4 | 2935 | 3107.2 | 3071.3 | 3063.7 | 1000 M3 | CNLOPB | |||
| 2024 | OIL | 9209.9 | 7583.3 | 8828.6 | 28854.2 | 38315 | 29533.1 | 30735.1 | 29369 | 30775.2 | M3 | CNLOPB | |||
| 2024 | WATER | 2355.9 | 1990.6 | 6556.2 | 22026.3 | 30021.5 | 30142.6 | 33504.2 | 46248 | 45898.9 | M3 | CNLOPB |

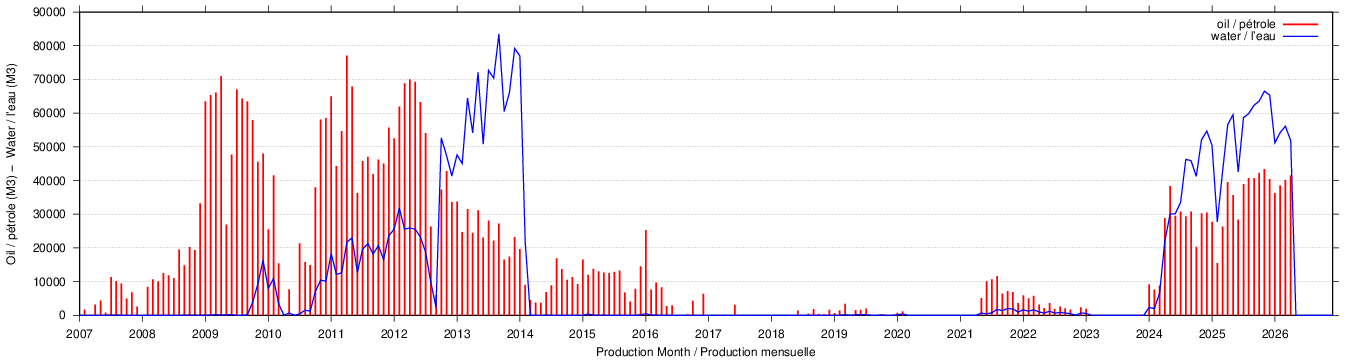

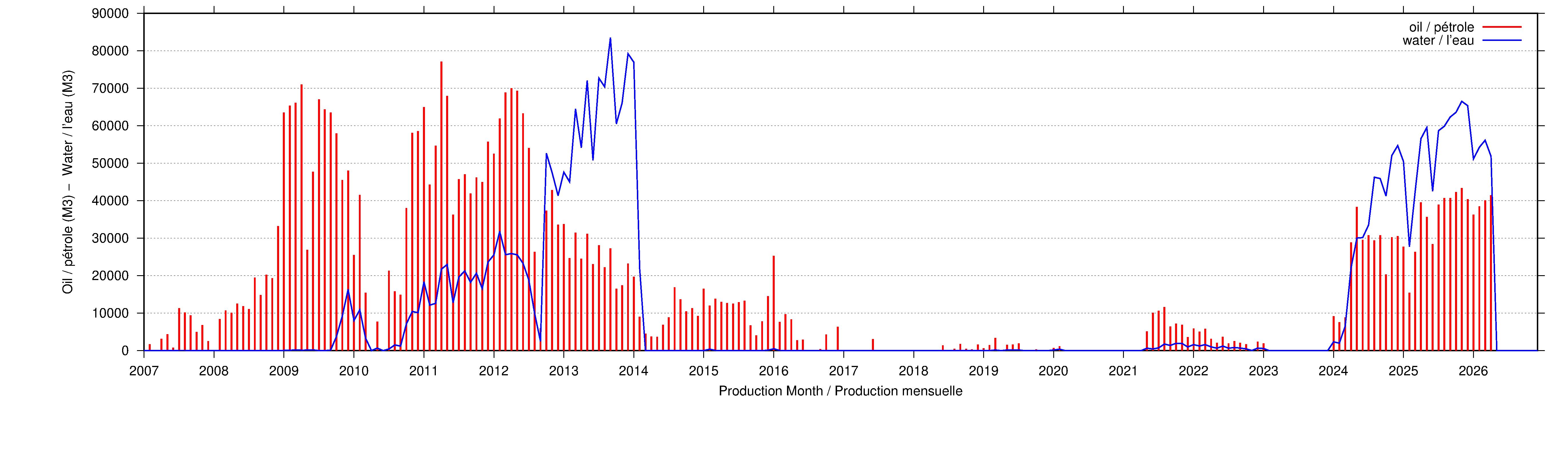

Oil & Water Production
Please note that the oil units and the water units are both cubic metres
Download this plot in Postscript format. Click the plot for a large JPEG version.
