Current well
| HMDC HIBERNIA B-16 56 | |
|---|---|
| Unique Well ID: | 356 B16 46500 48450 |
| GSC#: | N314 |
| Spud Date: | 02-OCT-2006 |
| Area: | Grand Banks |
| Well Class: | DEVELOPMENT |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | GAS |
| Oil: | OIL |
| RT: | 76 M |
| WD: | 80 M |
| Field: | HIBERNIA |
| TD: | 10122 M |
| TVD: | 4173.1 M |
| Status: | PROD |
Yearly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Yearly Volume | Cumulative Volume | Units | Data Source |
|---|---|---|---|---|---|
| 2010 | GAS | 165209.2 | 165209.2 | 1000 M3 | CNLOPB |
| 2011 | GAS | 170179.2 | 335388.4 | 1000 M3 | CNLOPB |
| 2012 | GAS | 161932.5 | 497320.9 | 1000 M3 | CNLOPB |
| 2013 | GAS | 263353.1 | 760674 | 1000 M3 | CNLOPB |
| 2014 | GAS | 338547.1 | 1099221.1 | 1000 M3 | CNLOPB |
| 2015 | GAS | 434458.6 | 1533679.7 | 1000 M3 | CNLOPB |
| 2016 | GAS | 467779.7 | 2001459.4 | 1000 M3 | CNLOPB |
| 2017 | GAS | 742906.5 | 2744365.9 | 1000 M3 | CNLOPB |
| 2018 | GAS | 983852.2 | 3728218.1 | 1000 M3 | CNLOPB |
| 2019 | GAS | 697915.5 | 4426133.6 | 1000 M3 | CNLOPB |
| 2020 | GAS | 470338.7 | 4896472.3 | 1000 M3 | CNLOPB |
| 2021 | GAS | 578295 | 5474767.3 | 1000 M3 | CNLOPB |
| 2022 | GAS | 522320.2 | 5997087.5 | 1000 M3 | CNLOPB |
| 2023 | GAS | 667768.8 | 6664856.3 | 1000 M3 | CNLOPB |
| 2024 | GAS | 555884.2 | 7220740.5 | 1000 M3 | CNLOPB |
| 2010 | OIL | 668234.9 | 668234.9 | M3 | CNLOPB |
| 2011 | OIL | 663602.1 | 1331837 | M3 | CNLOPB |
| 2012 | OIL | 623527 | 1955364 | M3 | CNLOPB |
| 2013 | OIL | 949870.4 | 2905234.4 | M3 | CNLOPB |
| 2014 | OIL | 861095.1 | 3766329.5 | M3 | CNLOPB |
| 2015 | OIL | 586383.2 | 4352712.7 | M3 | CNLOPB |
| 2016 | OIL | 724840.5 | 5077553.2 | M3 | CNLOPB |
| 2017 | OIL | 1016258 | 6093811.2 | M3 | CNLOPB |
| 2018 | OIL | 702081.2 | 6795892.4 | M3 | CNLOPB |
| 2019 | OIL | 381772.6 | 7177665 | M3 | CNLOPB |
| 2020 | OIL | 299049.9 | 7476714.9 | M3 | CNLOPB |
| 2021 | OIL | 344498.8 | 7821213.7 | M3 | CNLOPB |
| 2022 | OIL | 298925.7 | 8120139.4 | M3 | CNLOPB |
| 2023 | OIL | 340889.5 | 8461028.9 | M3 | CNLOPB |
| 2024 | OIL | 227546.9 | 8688575.8 | M3 | CNLOPB |
| 2010 | WATER | 168.81 | 168.81 | M3 | CNLOPB |
| 2011 | WATER | 2082.52 | 2251.33 | M3 | CNLOPB |
| 2012 | WATER | 4544.4 | 6795.73 | M3 | CNLOPB |
| 2013 | WATER | 16864.5 | 23660.23 | M3 | CNLOPB |
| 2014 | WATER | 16709.5 | 40369.73 | M3 | CNLOPB |
| 2015 | WATER | 16971.2 | 57340.93 | M3 | CNLOPB |
| 2016 | WATER | 15781.9 | 73122.83 | M3 | CNLOPB |
| 2017 | WATER | 24062.1 | 97184.93 | M3 | CNLOPB |
| 2018 | WATER | 40614.7 | 137799.63 | M3 | CNLOPB |
| 2019 | WATER | 48568.6 | 186368.23 | M3 | CNLOPB |
| 2020 | WATER | 70130.4 | 256498.63 | M3 | CNLOPB |
| 2021 | WATER | 92231.2 | 348729.83 | M3 | CNLOPB |
| 2022 | WATER | 70914.2 | 419644.03 | M3 | CNLOPB |
| 2023 | WATER | 76006.6 | 495650.63 | M3 | CNLOPB |
| 2024 | WATER | 58691.4 | 554342.03 | M3 | CNLOPB |
Monthly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | Units | Data Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2010 | GAS | 0 | 0 | 0 | 0 | 3253.6 | 20853.1 | 29161.2 | 25537.5 | 22519 | 20996.6 | 22119.6 | 20768.6 | 1000 M3 | CNLOPB |
| 2010 | OIL | 0 | 0 | 0 | 0 | 13965.5 | 81673.9 | 118926.9 | 101983.8 | 95321.1 | 88278.8 | 87980.5 | 80104.4 | M3 | CNLOPB |
| 2010 | WATER | 0 | 0 | 0 | 0 | 0 | 14.7 | 19.28 | 27.02 | 31.73 | 32 | 33.62 | 10.46 | M3 | CNLOPB |
| 2011 | GAS | 20389 | 13799.3 | 11572.5 | 13334.7 | 15138.6 | 9916.7 | 15241.8 | 16027.8 | 13136.7 | 14646 | 12907.2 | 14068.9 | 1000 M3 | CNLOPB |
| 2011 | OIL | 75829.2 | 52803.6 | 45282.7 | 56707.6 | 58984.1 | 37790.8 | 56141.5 | 60592.8 | 50016.8 | 57578.4 | 53945.9 | 57928.7 | M3 | CNLOPB |
| 2011 | WATER | 7.8 | 27.35 | 42.49 | 75.88 | 265.3 | 169.2 | 265.4 | 403.3 | 203.9 | 187.1 | 132.4 | 302.4 | M3 | CNLOPB |
| 2012 | GAS | 14988.1 | 14766.9 | 15105.6 | 16357.9 | 16442.9 | 15150.3 | 14324.9 | 6996.4 | 4416.6 | 13140 | 14741.7 | 15501.2 | 1000 M3 | CNLOPB |
| 2012 | OIL | 58030.5 | 56616.9 | 55892 | 61314.7 | 62200.9 | 60488 | 55598.2 | 26418.5 | 19388.4 | 49652.8 | 59835.2 | 58090.9 | M3 | CNLOPB |
| 2012 | WATER | 303.2 | 244 | 407.8 | 548.6 | 836.7 | 648.9 | 461.6 | 235.1 | 168.9 | 183 | 227.1 | 279.5 | M3 | CNLOPB |
| 2013 | GAS | 14886.4 | 16305.4 | 19129.7 | 25641.8 | 24297.2 | 16235.3 | 24664.6 | 25007.3 | 22690.1 | 24610.9 | 25327.5 | 24556.9 | 1000 M3 | CNLOPB |
| 2013 | OIL | 56567.2 | 60758.2 | 70130.1 | 88721.8 | 90289.2 | 65539.8 | 91612.1 | 88982.8 | 81547.7 | 89360.7 | 88861.4 | 77499.4 | M3 | CNLOPB |
| 2013 | WATER | 353.7 | 425.3 | 631.5 | 871.5 | 1264.1 | 1221.3 | 1845.9 | 1985.1 | 2194.2 | 2073.9 | 1816.3 | 2181.7 | M3 | CNLOPB |
| 2014 | GAS | 21885.2 | 25659.4 | 29752.6 | 25130.8 | 31497 | 27598.9 | 30576.7 | 28400.4 | 29309.3 | 27510.1 | 32482.5 | 28744.2 | 1000 M3 | CNLOPB |
| 2014 | OIL | 66482.5 | 76198.9 | 83019.9 | 66700.8 | 77876 | 66442.7 | 75209 | 69326.5 | 68359 | 66331 | 76414.9 | 68733.9 | M3 | CNLOPB |
| 2014 | WATER | 1765.2 | 1672.7 | 1556 | 1254.6 | 1518.6 | 1478.9 | 1372.7 | 1231 | 1191 | 1169.6 | 1274.1 | 1225.1 | M3 | CNLOPB |
| 2015 | GAS | 34583.2 | 42545.4 | 41261.1 | 39501.9 | 36690.5 | 37942.4 | 43655.4 | 45861.7 | 22954.8 | 0 | 36196.2 | 53266 | 1000 M3 | CNLOPB |
| 2015 | OIL | 80604.6 | 61312.4 | 59830 | 50205.3 | 43664.1 | 47072.4 | 54445.3 | 55864.4 | 27095.9 | 0 | 41598 | 64690.8 | M3 | CNLOPB |
| 2015 | WATER | 1442.1 | 2069.5 | 2313.6 | 1829 | 1686.8 | 1409.9 | 1568.8 | 1605.6 | 813.8 | 0 | 963.8 | 1268.3 | M3 | CNLOPB |
| 2016 | GAS | 52484.5 | 44885.1 | 41419.4 | 40293.2 | 42532.9 | 28177.2 | 6620.3 | 42028.3 | 42903.3 | 43284.9 | 42117.1 | 41033.5 | 1000 M3 | CNLOPB |
| 2016 | OIL | 58057.2 | 49074.9 | 44023.8 | 42633.4 | 45918.6 | 29535.2 | 24299.2 | 83388 | 85074.1 | 87321.4 | 86370.8 | 89143.9 | M3 | CNLOPB |
| 2016 | WATER | 1750 | 1702.3 | 1800.2 | 1825.2 | 1918.7 | 1133.3 | 1038.1 | 828 | 976.6 | 958.1 | 954.9 | 896.5 | M3 | CNLOPB |
| 2017 | GAS | 46286.4 | 37489.4 | 48352.6 | 46919.1 | 57980.5 | 61271.4 | 66517.6 | 68059.8 | 69085.4 | 75855.6 | 76711.9 | 88376.8 | 1000 M3 | CNLOPB |
| 2017 | OIL | 92368.8 | 68670.5 | 89711.8 | 85853 | 96357.4 | 86266.6 | 86680.1 | 85851.4 | 78892.2 | 83236 | 79967.8 | 82402.4 | M3 | CNLOPB |
| 2017 | WATER | 1016.7 | 667.2 | 1227.8 | 1264.7 | 1615.1 | 1818.4 | 2467.6 | 2253 | 2972.5 | 2741.6 | 2889.4 | 3128.1 | M3 | CNLOPB |
| 2018 | GAS | 92384.5 | 90781.6 | 95190.8 | 100717.2 | 111549.5 | 104109.1 | 51015.1 | 109341.7 | 22266 | 45161.3 | 64851.6 | 96483.8 | 1000 M3 | CNLOPB |
| 2018 | OIL | 81080.9 | 75766.3 | 71002.6 | 73507.4 | 74788.2 | 72023.3 | 34571 | 71831.2 | 14309.2 | 34470.1 | 41594.6 | 57136.4 | M3 | CNLOPB |
| 2018 | WATER | 3061.9 | 2770.2 | 3045 | 2873.5 | 4757.1 | 4226.8 | 2772.4 | 5131.7 | 997.5 | 2300.6 | 3070.6 | 5607.4 | M3 | CNLOPB |
| 2019 | GAS | 88853.5 | 85912.8 | 101694.6 | 89449.4 | 79500 | 79278.4 | 45146.4 | 2191.2 | 7029.6 | 56951.7 | 55728.4 | 6179.5 | 1000 M3 | CNLOPB |
| 2019 | OIL | 47261.2 | 45910.7 | 51598.2 | 47060.7 | 44290.2 | 44601.7 | 24309.8 | 1573.8 | 4322.2 | 34285.2 | 33257.6 | 3301.3 | M3 | CNLOPB |
| 2019 | WATER | 4242.5 | 4731.2 | 7809.3 | 5878.2 | 6037.7 | 5381.2 | 2959.5 | 12.9 | 406.7 | 4778.3 | 5726 | 605.1 | M3 | CNLOPB |
| 2020 | GAS | 11346.5 | 45059.5 | 48879.2 | 51340.8 | 46610.5 | 39973.9 | 24400 | 38168.1 | 37843 | 39181.6 | 42188.1 | 45347.5 | 1000 M3 | CNLOPB |
| 2020 | OIL | 7651.5 | 28442.5 | 31898.7 | 30253 | 25767.2 | 22877.6 | 14672 | 23398.1 | 26899.2 | 28211.4 | 29583.9 | 29394.8 | M3 | CNLOPB |
| 2020 | WATER | 1414.6 | 6536.3 | 7681.5 | 8188.6 | 6278.8 | 5416.5 | 4256 | 6425 | 6053.2 | 5145.8 | 5781 | 6953.1 | M3 | CNLOPB |
| 2021 | GAS | 50709.4 | 45111.1 | 53867.2 | 45707.5 | 49525.3 | 48631 | 48774.6 | 47210.3 | 50850.9 | 42863.9 | 45377.2 | 49666.6 | 1000 M3 | CNLOPB |
| 2021 | OIL | 30475.7 | 28412.7 | 31449.6 | 27695.6 | 29313.2 | 29451.3 | 29683.1 | 29510.7 | 30045.4 | 24546.6 | 24292.4 | 29622.5 | M3 | CNLOPB |
| 2021 | WATER | 8018.4 | 6099.2 | 7551.2 | 6643.2 | 7763.4 | 8396 | 9314.4 | 8914.9 | 8133.5 | 6756.4 | 6904.9 | 7735.7 | M3 | CNLOPB |
| 2022 | GAS | 50257.8 | 45364.3 | 49342.4 | 46292.3 | 52240.4 | 50086.7 | 49006.2 | 50936.3 | 12488.1 | 9969.5 | 50241.7 | 56094.5 | 1000 M3 | CNLOPB |
| 2022 | OIL | 30621.5 | 27408.8 | 29131.5 | 26169.8 | 27904.9 | 29407.6 | 29229.9 | 29387 | 7293.8 | 6184.4 | 26655.1 | 29531.4 | M3 | CNLOPB |
| 2022 | WATER | 8343.6 | 7537.7 | 7533.9 | 7020.8 | 7777 | 5799.6 | 6567.6 | 6830 | 1760.6 | 1299 | 4802.6 | 5641.8 | M3 | CNLOPB |
| 2023 | GAS | 58471.3 | 44257.5 | 51757.5 | 57826.8 | 61314.5 | 55301.6 | 49865.7 | 49602.1 | 58718.1 | 63212.7 | 55629.6 | 61811.4 | 1000 M3 | CNLOPB |
| 2023 | OIL | 31644.9 | 25046 | 27393.5 | 31095 | 29555.2 | 28582.1 | 27525.8 | 25184.8 | 29221.1 | 30952.7 | 25693.9 | 28994.5 | M3 | CNLOPB |
| 2023 | WATER | 5355.4 | 4147.1 | 4669.9 | 6914.1 | 9412.2 | 6046.2 | 5647.9 | 5453.5 | 6300 | 6750.2 | 6966.3 | 8343.8 | M3 | CNLOPB |
| 2024 | GAS | 63159.9 | 61320.8 | 58438.6 | 65338.8 | 67112.9 | 60615 | 61744.4 | 60371 | 57782.8 | 1000 M3 | CNLOPB | |||
| 2024 | OIL | 27501.9 | 26490 | 22228.7 | 26398.8 | 25837.3 | 24342.6 | 25524.7 | 25456.3 | 23766.6 | M3 | CNLOPB | |||
| 2024 | WATER | 8008.6 | 7366.4 | 6088.2 | 6241.8 | 7049.8 | 6880.3 | 5553.5 | 5935 | 5567.8 | M3 | CNLOPB |

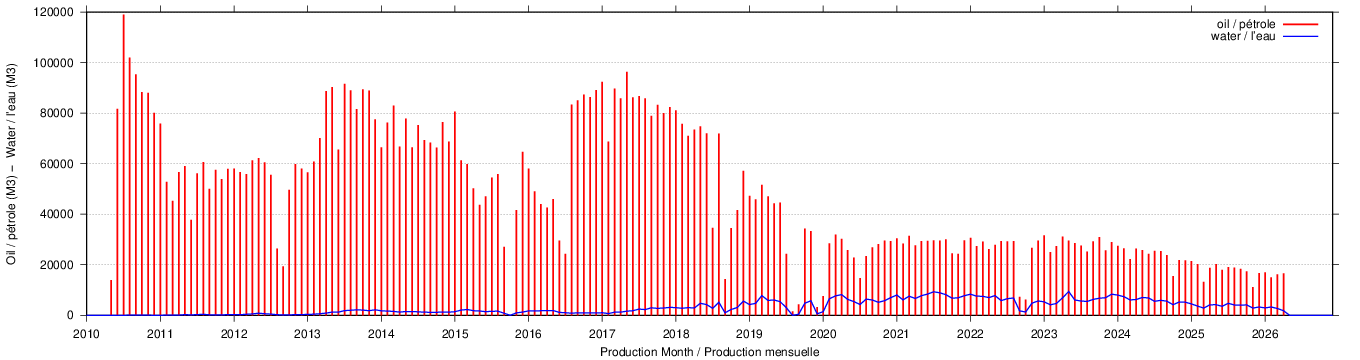

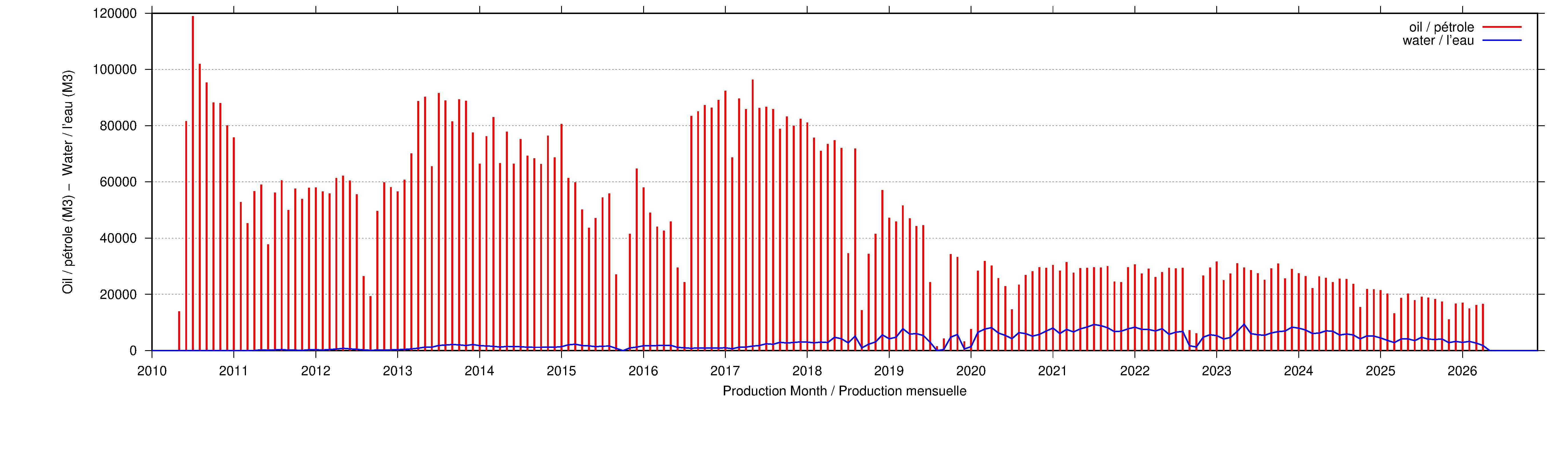

Oil & Water Production
Please note that the oil units and the water units are both cubic metres
Download this plot in Postscript format. Click the plot for a large JPEG version.
