Current well
| HMDC HIBERNIA B-16 57X | |
|---|---|
| Unique Well ID: | 357 B16 46500 48453 |
| GSC#: | N349 |
| Spud Date: | 15-SEP-2009 |
| Area: | Grand Banks |
| Well Class: | DEVELOPMENT |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | GAS |
| Oil: | OIL |
| RT: | 76 M |
| WD: | 80 M |
| Field: | HIBERNIA |
| TD: | 5655 M |
| TVD: | M |
| Status: | PROD |
Yearly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Yearly Volume | Cumulative Volume | Units | Data Source |
|---|---|---|---|---|---|
| 2009 | GAS | 8493 | 8493 | 1000 M3 | CNLOPB |
| 2010 | GAS | 243873.5 | 252366.5 | 1000 M3 | CNLOPB |
| 2011 | GAS | 287022.4 | 539388.9 | 1000 M3 | CNLOPB |
| 2012 | GAS | 137319.1 | 676708 | 1000 M3 | CNLOPB |
| 2013 | GAS | 84467.5 | 761175.5 | 1000 M3 | CNLOPB |
| 2014 | GAS | 63920.7 | 825096.2 | 1000 M3 | CNLOPB |
| 2015 | GAS | 59957.1 | 885053.3 | 1000 M3 | CNLOPB |
| 2016 | GAS | 27037.7 | 912091 | 1000 M3 | CNLOPB |
| 2017 | GAS | 25893.4 | 937984.4 | 1000 M3 | CNLOPB |
| 2018 | GAS | 66431.6 | 1004416 | 1000 M3 | CNLOPB |
| 2019 | GAS | 39690.7 | 1044106.7 | 1000 M3 | CNLOPB |
| 2020 | GAS | 34683.3 | 1078790 | 1000 M3 | CNLOPB |
| 2021 | GAS | 36328.4 | 1115118.4 | 1000 M3 | CNLOPB |
| 2022 | GAS | 20293.8 | 1135412.2 | 1000 M3 | CNLOPB |
| 2023 | GAS | 16662.4 | 1152074.6 | 1000 M3 | CNLOPB |
| 2024 | GAS | 13538.3 | 1165612.9 | 1000 M3 | CNLOPB |
| 2009 | OIL | 41338.7 | 41338.7 | M3 | CNLOPB |
| 2010 | OIL | 1195986.2 | 1237324.9 | M3 | CNLOPB |
| 2011 | OIL | 1404369.1 | 2641694 | M3 | CNLOPB |
| 2012 | OIL | 699013.8 | 3340707.8 | M3 | CNLOPB |
| 2013 | OIL | 410816.2 | 3751524 | M3 | CNLOPB |
| 2014 | OIL | 276828.8 | 4028352.8 | M3 | CNLOPB |
| 2015 | OIL | 265418.3 | 4293771.1 | M3 | CNLOPB |
| 2016 | OIL | 134666.6 | 4428437.7 | M3 | CNLOPB |
| 2017 | OIL | 113943.1 | 4542380.8 | M3 | CNLOPB |
| 2018 | OIL | 246340.5 | 4788721.3 | M3 | CNLOPB |
| 2019 | OIL | 191597.2 | 4980318.5 | M3 | CNLOPB |
| 2020 | OIL | 163996.4 | 5144314.9 | M3 | CNLOPB |
| 2021 | OIL | 188433.4 | 5332748.3 | M3 | CNLOPB |
| 2022 | OIL | 79837.1 | 5412585.4 | M3 | CNLOPB |
| 2023 | OIL | 63955.1 | 5476540.5 | M3 | CNLOPB |
| 2024 | OIL | 48428.1 | 5524968.6 | M3 | CNLOPB |
| 2010 | WATER | 384.32 | 384.32 | M3 | CNLOPB |
| 2011 | WATER | 22927.25 | 23311.57 | M3 | CNLOPB |
| 2012 | WATER | 725581.6 | 748893.17 | M3 | CNLOPB |
| 2013 | WATER | 1200474.2 | 1949367.37 | M3 | CNLOPB |
| 2014 | WATER | 1387948 | 3337315.37 | M3 | CNLOPB |
| 2015 | WATER | 1254540.2 | 4591855.57 | M3 | CNLOPB |
| 2016 | WATER | 636211.1 | 5228066.67 | M3 | CNLOPB |
| 2017 | WATER | 537915.8 | 5765982.47 | M3 | CNLOPB |
| 2018 | WATER | 166759.9 | 5932742.37 | M3 | CNLOPB |
| 2019 | WATER | 21488.7 | 5954231.07 | M3 | CNLOPB |
| 2020 | WATER | 26178.1 | 5980409.17 | M3 | CNLOPB |
| 2021 | WATER | 51322.5 | 6031731.67 | M3 | CNLOPB |
| 2022 | WATER | 126812.3 | 6158543.97 | M3 | CNLOPB |
| 2023 | WATER | 157025.2 | 6315569.17 | M3 | CNLOPB |
| 2024 | WATER | 129891.5 | 6445460.67 | M3 | CNLOPB |
Monthly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | Units | Data Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2009 | GAS | 438.9 | 8054.1 | 1000 M3 | CNLOPB | ||||||||||
| 2009 | OIL | 2061.1 | 39277.6 | M3 | CNLOPB | ||||||||||
| 2009 | WATER | 0 | 0 | M3 | CNLOPB | ||||||||||
| 2010 | GAS | 14434.1 | 8473.2 | 20508.6 | 20162.4 | 21687.2 | 19261.7 | 22785.4 | 22268.9 | 22844.7 | 23329.3 | 25164.8 | 22953.2 | 1000 M3 | CNLOPB |
| 2010 | OIL | 72544.5 | 41333.3 | 97629.8 | 100496.5 | 112419 | 92987.2 | 110968.8 | 104398.6 | 116705.5 | 115099.7 | 119443 | 111960.3 | M3 | CNLOPB |
| 2010 | WATER | 0 | 45.9 | 24.2 | 0 | 75.4 | 42.9 | 12.43 | 16.8 | 8.27 | 8.34 | 129.24 | 20.84 | M3 | CNLOPB |
| 2011 | GAS | 27737.7 | 19786.7 | 20953.8 | 23595.1 | 27355.2 | 19578.6 | 26599.7 | 28249.7 | 22027.4 | 24160.6 | 23733.3 | 23244.6 | 1000 M3 | CNLOPB |
| 2011 | OIL | 131750.9 | 95403.3 | 101031.4 | 124968.9 | 132369.5 | 91558.5 | 120206 | 131843.9 | 105287.9 | 120148.8 | 123009 | 126791 | M3 | CNLOPB |
| 2011 | WATER | 16.63 | 10.86 | 7.64 | 289.13 | 381.19 | 109.4 | 12 | 6 | 307.9 | 945.1 | 10247.7 | 10593.7 | M3 | CNLOPB |
| 2012 | GAS | 20202.2 | 16743.7 | 14853.9 | 14599.6 | 12780.1 | 12009.6 | 8514.4 | 5041.1 | 977.8 | 12072.6 | 11243.1 | 8281 | 1000 M3 | CNLOPB |
| 2012 | OIL | 106116.3 | 85753.8 | 66586.9 | 69574.8 | 73417.1 | 63757.9 | 43842.7 | 25653.8 | 5701.1 | 57438.7 | 58367.8 | 42802.9 | M3 | CNLOPB |
| 2012 | WATER | 27551.8 | 45431 | 68588.5 | 70654.3 | 89550.1 | 100989.8 | 69706.1 | 43699.4 | 10651.1 | 74579.3 | 72549.3 | 51630.9 | M3 | CNLOPB |
| 2013 | GAS | 7942.8 | 6877 | 8662.4 | 6960.6 | 7694.9 | 5367.3 | 8394.4 | 7526 | 7270.4 | 4855.5 | 5283.1 | 7633.1 | 1000 M3 | CNLOPB |
| 2013 | OIL | 43503.6 | 36008.7 | 43612.8 | 31232.4 | 36130.1 | 27471.6 | 39660.1 | 34761.8 | 34798.7 | 22963.4 | 25409.9 | 35263.1 | M3 | CNLOPB |
| 2013 | WATER | 66726.7 | 72530.8 | 113411.3 | 95342.3 | 116882.4 | 87917.7 | 126946.6 | 124766.3 | 113195.7 | 90467.2 | 94809.6 | 97477.6 | M3 | CNLOPB |
| 2014 | GAS | 5604.9 | 6515.2 | 5366.6 | 5446.4 | 6706.1 | 6708.5 | 6360 | 5503.5 | 4376.9 | 2484.7 | 4001.7 | 4846.2 | 1000 M3 | CNLOPB |
| 2014 | OIL | 26197.7 | 30175 | 24543 | 24360.4 | 26738.8 | 28632.9 | 29108 | 26953.5 | 20167.9 | 10316.4 | 15075.2 | 14560 | M3 | CNLOPB |
| 2014 | WATER | 117264.2 | 121581.2 | 97115.9 | 106752.4 | 158701.2 | 122674.6 | 103673.6 | 118250.8 | 126050.9 | 105680 | 135520.2 | 74683 | M3 | CNLOPB |
| 2015 | GAS | 8050.8 | 3371.2 | 5776.1 | 4625.9 | 8337.6 | 5036.5 | 3846.6 | 5175.7 | 2936.6 | 1610.4 | 6252.2 | 4937.5 | 1000 M3 | CNLOPB |
| 2015 | OIL | 33445.6 | 16851.5 | 28013.6 | 20841.9 | 34955.3 | 23363.7 | 19581.9 | 21630.6 | 11261 | 5725.6 | 25692.7 | 24054.9 | M3 | CNLOPB |
| 2015 | WATER | 99342.2 | 83529.8 | 108311.5 | 135582.7 | 120959.2 | 99104.5 | 131667 | 137974.3 | 72862.6 | 29335.7 | 117123.3 | 118747.4 | M3 | CNLOPB |
| 2016 | GAS | 3818.3 | 2974.8 | 3559.7 | 5402.3 | 250.5 | 0 | 2397.4 | 2055.2 | 1653.9 | 0 | 1973.9 | 2951.7 | 1000 M3 | CNLOPB |
| 2016 | OIL | 18105 | 14872.8 | 17275.2 | 25919.8 | 1195.9 | 0 | 11293.9 | 10155.3 | 8982.2 | 0 | 11131.2 | 15735.3 | M3 | CNLOPB |
| 2016 | WATER | 117617.3 | 103909.1 | 122101.2 | 92082 | 3804.6 | 0 | 27297.5 | 20508.6 | 43081.1 | 0 | 58009.2 | 47800.5 | M3 | CNLOPB |
| 2017 | GAS | 3369.6 | 1990.7 | 1801.6 | 1958 | 2174.1 | 1952.3 | 1934.5 | 1781.7 | 428.2 | 3189.7 | 2929.2 | 2383.8 | 1000 M3 | CNLOPB |
| 2017 | OIL | 16101 | 9127.6 | 8208.2 | 9454.6 | 10583.6 | 7934.7 | 8279 | 6476.5 | 1823.6 | 13466.7 | 13346.2 | 9141.4 | M3 | CNLOPB |
| 2017 | WATER | 43102.9 | 25751.3 | 59122.1 | 68108.6 | 61535.7 | 46706.7 | 51516.6 | 54846.2 | 9462.5 | 53406.4 | 36572.8 | 27784 | M3 | CNLOPB |
| 2018 | GAS | 1946.9 | 2342.7 | 1496.6 | 194.2 | 0 | 3129.1 | 10027.3 | 15387.7 | 3843.5 | 10583.2 | 12556.6 | 4923.8 | 1000 M3 | CNLOPB |
| 2018 | OIL | 7293.8 | 11649.7 | 5662.8 | 648.5 | 0 | 15019.8 | 56555.3 | 52546.7 | 10237.8 | 31626.9 | 31532.2 | 23567 | M3 | CNLOPB |
| 2018 | WATER | 55112.5 | 58491.2 | 35090.2 | 4607.6 | 0 | 4385.1 | 3862 | 2135.5 | 260.9 | 771.7 | 850.8 | 1192.4 | M3 | CNLOPB |
| 2019 | GAS | 5786.7 | 4705.7 | 4639.7 | 2645.7 | 2748.1 | 3479 | 2035.4 | 0 | 262.2 | 4728.6 | 4780.2 | 3879.4 | 1000 M3 | CNLOPB |
| 2019 | OIL | 26721.3 | 22114.8 | 22000.1 | 9531.7 | 13337.4 | 18189.6 | 10550.6 | 0 | 1604.4 | 25161.6 | 24616.7 | 17769 | M3 | CNLOPB |
| 2019 | WATER | 788.1 | 608.6 | 1555.6 | 3301.9 | 3790.8 | 2424.8 | 1082.6 | 0 | 118.9 | 3459.6 | 3013.2 | 1344.6 | M3 | CNLOPB |
| 2020 | GAS | 4587.3 | 4701.4 | 4892.9 | 2251.8 | 616.8 | 1512 | 1415.4 | 2752.9 | 2025.7 | 1217.2 | 4069.1 | 4640.8 | 1000 M3 | CNLOPB |
| 2020 | OIL | 21959.1 | 21280.9 | 23626.3 | 10952.9 | 2890.1 | 5256.5 | 4871.9 | 12724.4 | 9096.6 | 5655.8 | 21185.5 | 24496.4 | M3 | CNLOPB |
| 2020 | WATER | 1729 | 1860 | 1484.3 | 702 | 181.4 | 2556.2 | 3120.2 | 3735.1 | 3477.7 | 2168.3 | 3068.7 | 2095.2 | M3 | CNLOPB |
| 2021 | GAS | 2520.2 | 2681.8 | 3743.4 | 3292.4 | 2776.6 | 4509.1 | 2624.4 | 3643.4 | 2093.7 | 2245.4 | 2686.6 | 3511.4 | 1000 M3 | CNLOPB |
| 2021 | OIL | 12985.2 | 14290.3 | 19555.3 | 18235.5 | 14041.9 | 24076.1 | 14452.7 | 20361.1 | 11208.4 | 10083.3 | 11492.5 | 17651.1 | M3 | CNLOPB |
| 2021 | WATER | 1171.8 | 1277.5 | 1814.7 | 1683.8 | 6480 | 4911.2 | 1535.5 | 8753.8 | 1977.3 | 2280.6 | 7361.8 | 12074.5 | M3 | CNLOPB |
| 2022 | GAS | 2211.7 | 1845.7 | 1986.4 | 1919.7 | 1878.8 | 1818.9 | 1721.8 | 1823.1 | 462.6 | 438.1 | 2557.1 | 1629.9 | 1000 M3 | CNLOPB |
| 2022 | OIL | 9898.3 | 8209.7 | 7842.5 | 7335.9 | 6747.9 | 6892.2 | 7115.5 | 7431.4 | 1911.7 | 1922.7 | 9210.2 | 5319.1 | M3 | CNLOPB |
| 2022 | WATER | 11475.1 | 9137 | 11095.3 | 10377.6 | 13640.6 | 11249.1 | 11391.9 | 11712.6 | 3140.9 | 2748.9 | 18594 | 12249.3 | M3 | CNLOPB |
| 2023 | GAS | 1307.4 | 1099.3 | 1280.5 | 1275.9 | 1573.7 | 1419.3 | 1538 | 1527.7 | 1637.9 | 1384.5 | 976.6 | 1641.6 | 1000 M3 | CNLOPB |
| 2023 | OIL | 4235 | 4470.1 | 5265.1 | 5360.2 | 6173.5 | 4688.2 | 5599.3 | 6160.8 | 6181.6 | 5073.4 | 3369.5 | 7378.4 | M3 | CNLOPB |
| 2023 | WATER | 10103 | 7718.2 | 9652.2 | 13712.7 | 14771.7 | 13407.8 | 12416.1 | 11857 | 17561.2 | 15571.8 | 9890.1 | 20363.4 | M3 | CNLOPB |
| 2024 | GAS | 1532.6 | 1430 | 1339 | 1609.5 | 1614.4 | 1361.9 | 1529.8 | 1576.6 | 1544.5 | 1000 M3 | CNLOPB | |||
| 2024 | OIL | 6243.2 | 5096.8 | 4209.5 | 5506.4 | 5575 | 4994.1 | 5609.6 | 5839.6 | 5353.9 | M3 | CNLOPB | |||
| 2024 | WATER | 18176.2 | 15121.1 | 13076.4 | 15565.8 | 15556.9 | 13667.1 | 13960.1 | 13807.3 | 10960.6 | M3 | CNLOPB |

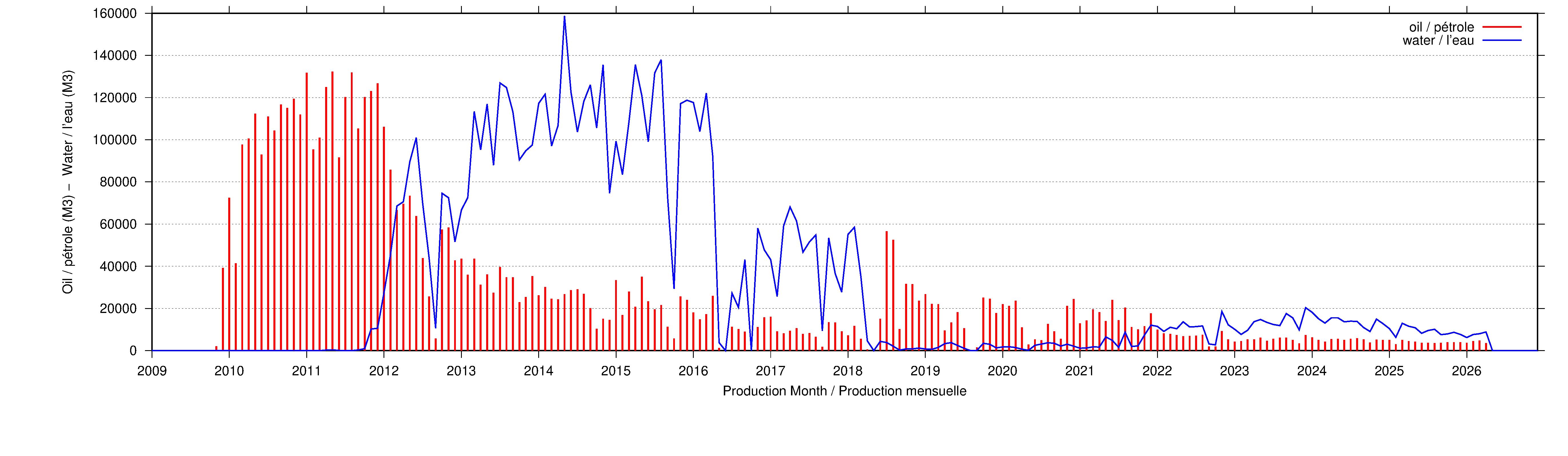

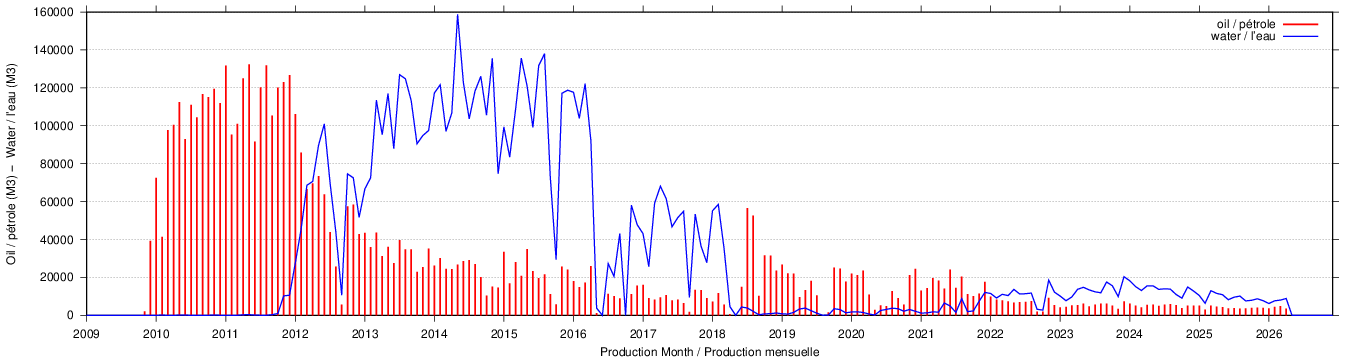

Oil & Water Production
Please note that the oil units and the water units are both cubic metres
Download this plot in Postscript format. Click the plot for a large JPEG version.
