Current well
| HMDC HIBERNIA B-16 5Z | |
|---|---|
| Unique Well ID: | 305 B16 46500 48451 |
| GSC#: | N358 |
| Spud Date: | 18-MAY-2010 |
| Area: | Grand Banks |
| Well Class: | DEVELOPMENT |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | GAS |
| Oil: | OIL |
| RT: | 76 M |
| WD: | 80 M |
| Field: | HIBERNIA |
| TD: | 5532 M |
| TVD: | 4312.22 M |
| Status: | PROD |
Yearly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Yearly Volume | Cumulative Volume | Units | Data Source |
|---|---|---|---|---|---|
| 2010 | GAS | 13773.7 | 13773.7 | 1000 M3 | CNLOPB |
| 2011 | GAS | 151916.1 | 165689.8 | 1000 M3 | CNLOPB |
| 2012 | GAS | 53633.3 | 219323.1 | 1000 M3 | CNLOPB |
| 2013 | GAS | 64301.2 | 283624.3 | 1000 M3 | CNLOPB |
| 2014 | GAS | 54025.7 | 337650 | 1000 M3 | CNLOPB |
| 2015 | GAS | 25718.2 | 363368.2 | 1000 M3 | CNLOPB |
| 2016 | GAS | 45859.4 | 409227.6 | 1000 M3 | CNLOPB |
| 2017 | GAS | 43503.1 | 452730.7 | 1000 M3 | CNLOPB |
| 2018 | GAS | 26863.8 | 479594.5 | 1000 M3 | CNLOPB |
| 2019 | GAS | 34564.1 | 514158.6 | 1000 M3 | CNLOPB |
| 2020 | GAS | 14159.1 | 528317.7 | 1000 M3 | CNLOPB |
| 2010 | OIL | 85074.2 | 85074.2 | M3 | CNLOPB |
| 2011 | OIL | 823902.7 | 908976.9 | M3 | CNLOPB |
| 2012 | OIL | 292629.1 | 1201606 | M3 | CNLOPB |
| 2013 | OIL | 337279.2 | 1538885.2 | M3 | CNLOPB |
| 2014 | OIL | 274185 | 1813070.2 | M3 | CNLOPB |
| 2015 | OIL | 145979.3 | 1959049.5 | M3 | CNLOPB |
| 2016 | OIL | 236203.3 | 2195252.8 | M3 | CNLOPB |
| 2017 | OIL | 221903.9 | 2417156.7 | M3 | CNLOPB |
| 2018 | OIL | 122097.9 | 2539254.6 | M3 | CNLOPB |
| 2019 | OIL | 160056.8 | 2699311.4 | M3 | CNLOPB |
| 2020 | OIL | 59229.2 | 2758540.6 | M3 | CNLOPB |
| 2010 | WATER | 38.31 | 38.31 | M3 | CNLOPB |
| 2011 | WATER | 42069.66 | 42107.97 | M3 | CNLOPB |
| 2012 | WATER | 457904.1 | 500012.07 | M3 | CNLOPB |
| 2013 | WATER | 592901 | 1092913.07 | M3 | CNLOPB |
| 2014 | WATER | 512735 | 1605648.07 | M3 | CNLOPB |
| 2015 | WATER | 249034.7 | 1854682.77 | M3 | CNLOPB |
| 2016 | WATER | 218249.1 | 2072931.87 | M3 | CNLOPB |
| 2017 | WATER | 182832.4 | 2255764.27 | M3 | CNLOPB |
| 2018 | WATER | 242906 | 2498670.27 | M3 | CNLOPB |
| 2019 | WATER | 226824.3 | 2725494.57 | M3 | CNLOPB |
| 2020 | WATER | 144267 | 2869761.57 | M3 | CNLOPB |
Monthly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | Units | Data Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2010 | GAS | 416.9 | 3424.2 | 3104.6 | 0 | 0 | 6828 | 1000 M3 | CNLOPB | ||||||
| 2010 | OIL | 2433.7 | 19453.4 | 19041.9 | 0 | 0 | 44145.2 | M3 | CNLOPB | ||||||
| 2010 | WATER | 0 | 1.27 | 27.55 | 0 | 0 | 9.49 | M3 | CNLOPB | ||||||
| 2011 | GAS | 15297 | 12966.1 | 15577.3 | 15095 | 14930.5 | 7555 | 13729 | 15414.1 | 13053.6 | 11262.8 | 9588.7 | 7447 | 1000 M3 | CNLOPB |
| 2011 | OIL | 99196.7 | 68913.4 | 79222.5 | 87948.8 | 79099.9 | 39740.1 | 67885.1 | 77532.8 | 67713.8 | 57696.1 | 55394.5 | 43559 | M3 | CNLOPB |
| 2011 | WATER | 101.82 | 72.68 | 69.53 | 236.33 | 357 | 137.7 | 285.8 | 437.3 | 232.8 | 1764.8 | 12580.4 | 25793.5 | M3 | CNLOPB |
| 2012 | GAS | 7578.9 | 6052.4 | 5857.3 | 5578.6 | 5567.5 | 2184.7 | 2217.9 | 1066.4 | 530.3 | 6416.8 | 5987.3 | 4595.2 | 1000 M3 | CNLOPB |
| 2012 | OIL | 39946.2 | 31585.3 | 30683 | 31111 | 27993.7 | 11862.2 | 12349 | 5868.3 | 3264 | 32752 | 37349.1 | 27865.3 | M3 | CNLOPB |
| 2012 | WATER | 34310.8 | 38103.2 | 45951 | 46902.6 | 57851.6 | 51483.6 | 58098.6 | 29579.9 | 5843.1 | 29624.6 | 34229.1 | 25926 | M3 | CNLOPB |
| 2013 | GAS | 4369.6 | 5166.2 | 5352.4 | 6258.9 | 6261.1 | 3752.4 | 5881.1 | 4375.2 | 4114.8 | 6611.3 | 7214.2 | 4944 | 1000 M3 | CNLOPB |
| 2013 | OIL | 23785.1 | 27857.7 | 28952.9 | 34631.3 | 32976.5 | 22170.4 | 31502.6 | 21848.3 | 21221.7 | 34219.8 | 35868 | 22244.9 | M3 | CNLOPB |
| 2013 | WATER | 51951.5 | 42749.7 | 62738.1 | 52266.9 | 59364.5 | 39396.4 | 52953 | 44639.8 | 39464 | 41709.7 | 54343.4 | 51324 | M3 | CNLOPB |
| 2014 | GAS | 6572.1 | 6142.4 | 1754.2 | 4569.4 | 6149.6 | 8133 | 6276.7 | 2737.3 | 3744.6 | 2276.2 | 4235.9 | 1434.3 | 1000 M3 | CNLOPB |
| 2014 | OIL | 31070 | 29054.7 | 8631.4 | 24083.9 | 30424.8 | 37569.5 | 32220.4 | 15297.8 | 19347.7 | 13097.4 | 25726.3 | 7661.1 | M3 | CNLOPB |
| 2014 | WATER | 57528.5 | 60867.7 | 32655.3 | 62582.2 | 67532.9 | 49082.3 | 44649 | 24613.2 | 32377.4 | 23969.2 | 43583 | 13294.3 | M3 | CNLOPB |
| 2015 | GAS | 3596 | 1802.5 | 0 | 1769.9 | 1661.9 | 5112.5 | 2946 | 3257.8 | 1729.1 | 903.8 | 1382.3 | 1556.4 | 1000 M3 | CNLOPB |
| 2015 | OIL | 17736.6 | 11886.4 | 0 | 10604.6 | 9374 | 22745.4 | 17969.5 | 17465 | 8673.5 | 4203.3 | 12554.2 | 12766.8 | M3 | CNLOPB |
| 2015 | WATER | 29054.3 | 18878.8 | 0 | 28159.7 | 23051.4 | 40196.3 | 30926.6 | 25777.8 | 12911.8 | 4954.8 | 16138.5 | 18984.7 | M3 | CNLOPB |
| 2016 | GAS | 4098.9 | 2956.8 | 2498.4 | 2450.3 | 943.9 | 3411.1 | 3905 | 4265.1 | 7592.2 | 4686.3 | 5096.8 | 3954.6 | 1000 M3 | CNLOPB |
| 2016 | OIL | 20876.5 | 14770.7 | 12574.7 | 12200.1 | 4958 | 17375.7 | 20218.3 | 20819.6 | 37901.2 | 23845.9 | 27907.4 | 22755.2 | M3 | CNLOPB |
| 2016 | WATER | 23043.9 | 20086.2 | 19608.1 | 23951.7 | 4620.4 | 13131.9 | 17717.6 | 15861.3 | 24775.1 | 18891.4 | 21153 | 15408.5 | M3 | CNLOPB |
| 2017 | GAS | 5582.3 | 4149.2 | 3875.9 | 3489.1 | 4511.4 | 4751 | 3612.3 | 3226 | 2950.1 | 3632 | 2876.9 | 846.9 | 1000 M3 | CNLOPB |
| 2017 | OIL | 30167.3 | 21136.9 | 21406.3 | 19492 | 24242.3 | 24512.2 | 17851.7 | 14674.5 | 14102.5 | 18267.6 | 12501.8 | 3548.8 | M3 | CNLOPB |
| 2017 | WATER | 20029.6 | 12205.3 | 15119.5 | 14299.2 | 18286.1 | 15363.2 | 14941.1 | 14881.9 | 18217.5 | 18102.7 | 16171.8 | 5214.5 | M3 | CNLOPB |
| 2018 | GAS | 0 | 540.1 | 1251.4 | 2637.4 | 3229.9 | 2963.4 | 3380 | 3714.8 | 754.3 | 2149.9 | 2647.4 | 3595.2 | 1000 M3 | CNLOPB |
| 2018 | OIL | 0 | 2222.6 | 6377.6 | 12326.5 | 12686.6 | 12792.4 | 16848.7 | 16116.6 | 3109.2 | 9942.1 | 12259.4 | 17416.2 | M3 | CNLOPB |
| 2018 | WATER | 0 | 3211.4 | 10759 | 22892.6 | 29557.7 | 23755.4 | 26756.7 | 31219.8 | 6334 | 19391.6 | 27392.4 | 41635.4 | M3 | CNLOPB |
| 2019 | GAS | 3971.7 | 3267.2 | 3994.7 | 4414.2 | 3974.8 | 3658.4 | 2081.6 | 0 | 286.4 | 3576.8 | 3182.6 | 2155.7 | 1000 M3 | CNLOPB |
| 2019 | OIL | 16656.9 | 14307.5 | 17438.3 | 20192.1 | 19951.5 | 17312.9 | 9276.5 | 0 | 1495.7 | 17554 | 16260.6 | 9610.8 | M3 | CNLOPB |
| 2019 | WATER | 33787.8 | 28294.7 | 28699.9 | 19813 | 19761 | 19241.1 | 11430.5 | 0 | 1398.1 | 21990.3 | 23979.1 | 18428.8 | M3 | CNLOPB |
| 2020 | GAS | 3198.1 | 3192.6 | 2648.6 | 2236.9 | 2266 | 616.9 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2020 | OIL | 13425.8 | 12584 | 12040.4 | 9545.4 | 9214.8 | 2418.8 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2020 | WATER | 17845.7 | 23683.2 | 29397 | 30827 | 33876.5 | 8637.6 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2021 | GAS | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2021 | OIL | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2021 | WATER | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |

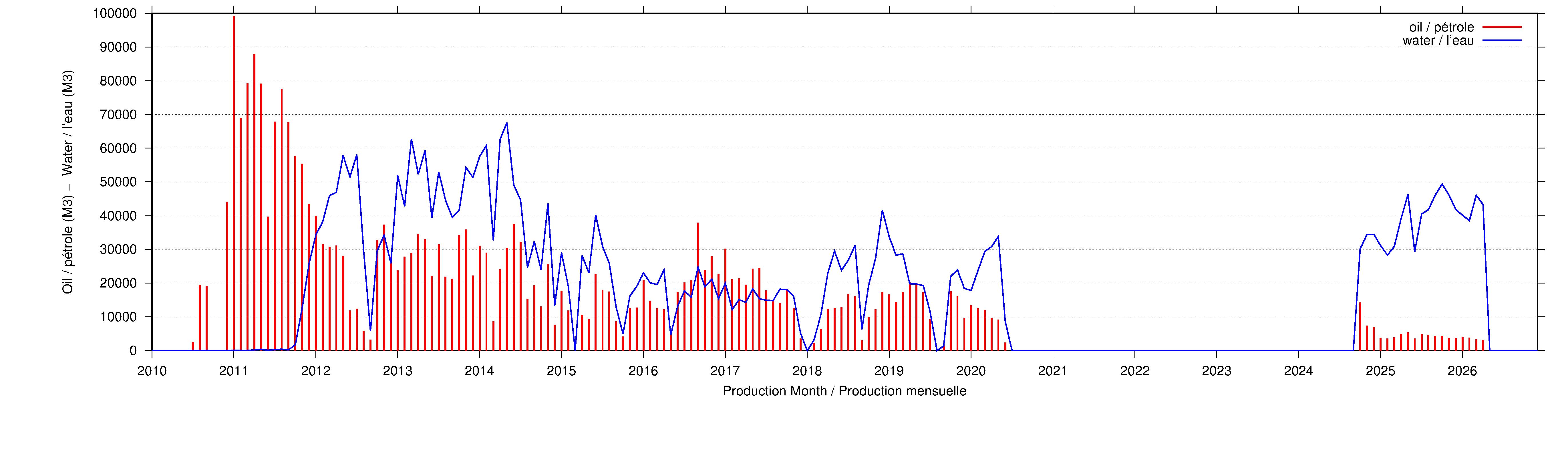

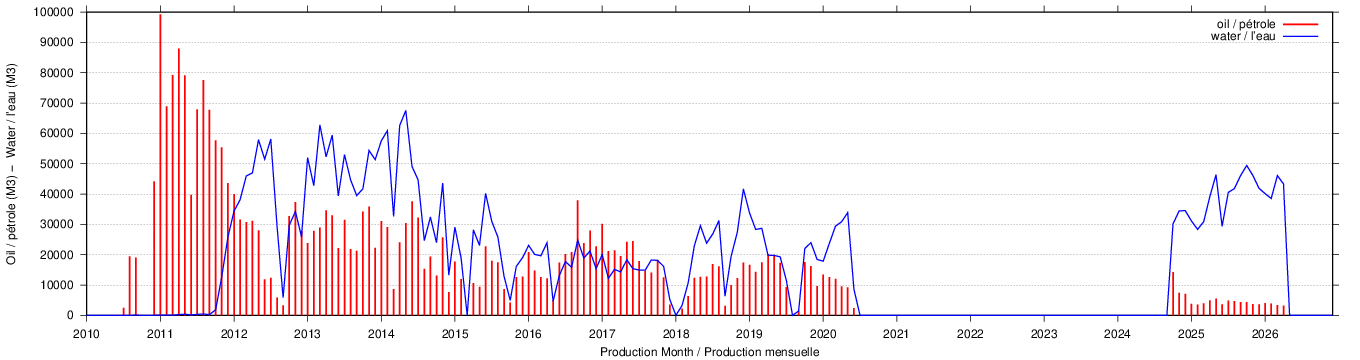

Oil & Water Production
Please note that the oil units and the water units are both cubic metres
Download this plot in Postscript format. Click the plot for a large JPEG version.
