Current well
| HMDC HIBERNIA B-16 54V | |
|---|---|
| Unique Well ID: | 354 B16 46500 48455 |
| GSC#: | N359 |
| Spud Date: | 21-AUG-2010 |
| Area: | Grand Banks |
| Well Class: | WATER INJECTOR |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | UNRATED |
| Oil: | UNRATED |
| RT: | 76 M |
| WD: | 80 M |
| Field: | HIBERNIA |
| TD: | 7592 M |
| TVD: | 4589.6 M |
| Status: | INJEC |
Yearly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Yearly Volume | Cumulative Volume | Units | Data Source |
|---|---|---|---|---|---|
| 2010 | GAS | 2.8 | 2.8 | 1000 M3 | CNLOPB |
| 2010 | OIL | .5 | .5 | M3 | CNLOPB |
| 2010 | WATER | 4893.96 | 4893.96 | M3 | CNLOPB |
Monthly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | Units | Data Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2010 | GAS | 2.8 | 1000 M3 | CNLOPB | |||||||||||
| 2010 | OIL | .5 | M3 | CNLOPB | |||||||||||
| 2010 | WATER | 4893.96 | M3 | CNLOPB |

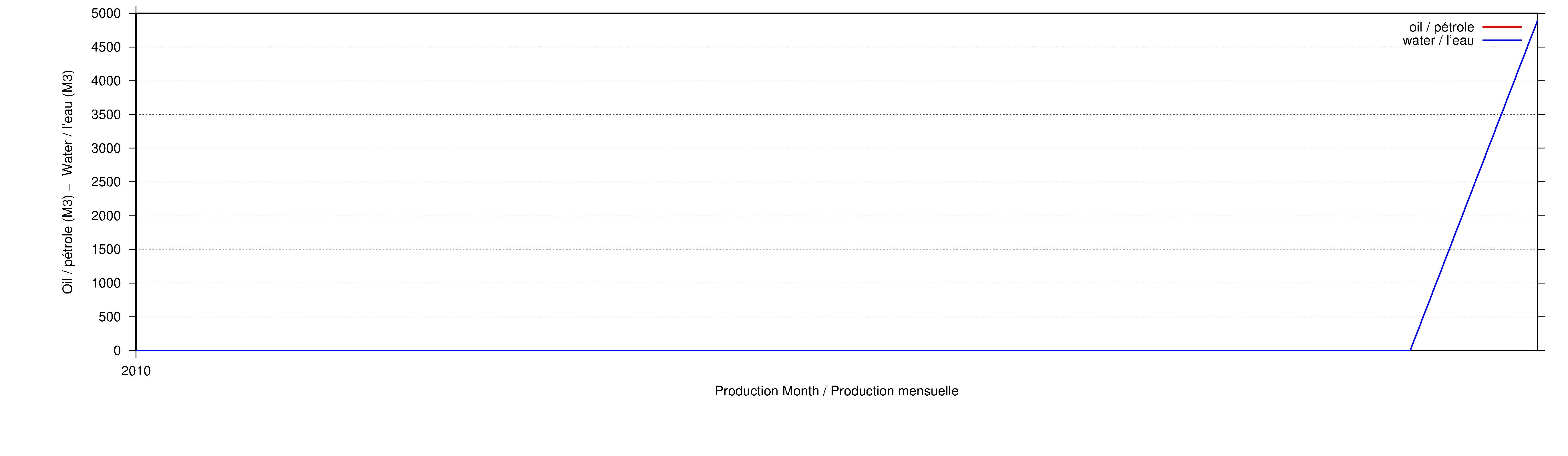

Oil & Water Production
Please note that the oil units and the water units are both cubic metres
Download this plot in Postscript format. Click the plot for a large JPEG version.
