Production
| Current Wells | Production | |||||
| Location | Drilling | Testing | Reports | E-logs | Samples | |
| Pressure | Geochem | Temperature | Maturity | Lithostrat | Biostrat | |
Current well
| HMDC HIBERNIA B-16 48Y | |
|---|---|
| Unique Well ID: | 348 B16 46500 48452 |
| GSC#: | N362 |
| Spud Date: | 31-DEC-2010 |
| Area: | Grand Banks |
| Well Class: | DEVELOPMENT |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | GAS |
| Oil: | OIL |
| RT: | 76 M |
| WD: | 80 M |
| Field: | HIBERNIA |
| TD: | 7404 M |
| TVD: | 3052.26 M |
| Status: | PROD |
Yearly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Yearly Volume | Cumulative Volume | Units | Data Source |
|---|---|---|---|---|---|
| 2011 | GAS | 11211.3 | 11211.3 | 1000 M3 | CNLOPB |
| 2012 | GAS | 9017.6 | 20228.9 | 1000 M3 | CNLOPB |
| 2013 | GAS | 7928.6 | 28157.5 | 1000 M3 | CNLOPB |
| 2014 | GAS | 11178.2 | 39335.7 | 1000 M3 | CNLOPB |
| 2015 | GAS | 16390.4 | 55726.1 | 1000 M3 | CNLOPB |
| 2016 | GAS | 17803.3 | 73529.4 | 1000 M3 | CNLOPB |
| 2017 | GAS | 17175.7 | 90705.1 | 1000 M3 | CNLOPB |
| 2018 | GAS | 11748 | 102453.1 | 1000 M3 | CNLOPB |
| 2019 | GAS | 9213.5 | 111666.6 | 1000 M3 | CNLOPB |
| 2020 | GAS | 9949.8 | 121616.4 | 1000 M3 | CNLOPB |
| 2021 | GAS | 9282.6 | 130899 | 1000 M3 | CNLOPB |
| 2022 | GAS | 8910.3 | 139809.3 | 1000 M3 | CNLOPB |
| 2023 | GAS | 8210.7 | 148020 | 1000 M3 | CNLOPB |
| 2024 | GAS | 27540.8 | 175560.8 | 1000 M3 | CNLOPB |
| 2011 | OIL | 136991.2 | 136991.2 | M3 | CNLOPB |
| 2012 | OIL | 118970.6 | 255961.8 | M3 | CNLOPB |
| 2013 | OIL | 100447.9 | 356409.7 | M3 | CNLOPB |
| 2014 | OIL | 148060.5 | 504470.2 | M3 | CNLOPB |
| 2015 | OIL | 224933.2 | 729403.4 | M3 | CNLOPB |
| 2016 | OIL | 230662.3 | 960065.7 | M3 | CNLOPB |
| 2017 | OIL | 202786.3 | 1162852 | M3 | CNLOPB |
| 2018 | OIL | 131658.8 | 1294510.8 | M3 | CNLOPB |
| 2019 | OIL | 100024 | 1394534.8 | M3 | CNLOPB |
| 2020 | OIL | 111851.2 | 1506386 | M3 | CNLOPB |
| 2021 | OIL | 97440 | 1603826 | M3 | CNLOPB |
| 2022 | OIL | 96905.8 | 1700731.8 | M3 | CNLOPB |
| 2023 | OIL | 92938.7 | 1793670.5 | M3 | CNLOPB |
| 2024 | OIL | 146236.6 | 1939907.1 | M3 | CNLOPB |
| 2011 | WATER | 231.8 | 231.8 | M3 | CNLOPB |
| 2012 | WATER | 266.3 | 498.1 | M3 | CNLOPB |
| 2013 | WATER | 650.1 | 1148.2 | M3 | CNLOPB |
| 2014 | WATER | 109.9 | 1258.1 | M3 | CNLOPB |
| 2015 | WATER | 258.7 | 1516.8 | M3 | CNLOPB |
| 2016 | WATER | 364.6 | 1881.4 | M3 | CNLOPB |
| 2017 | WATER | 1014.3 | 2895.7 | M3 | CNLOPB |
| 2018 | WATER | 2051.6 | 4947.3 | M3 | CNLOPB |
| 2019 | WATER | 1330.1 | 6277.4 | M3 | CNLOPB |
| 2020 | WATER | 4208.7 | 10486.1 | M3 | CNLOPB |
| 2021 | WATER | 6768.1 | 17254.2 | M3 | CNLOPB |
| 2022 | WATER | 11663.7 | 28917.9 | M3 | CNLOPB |
| 2023 | WATER | 14026.1 | 42944 | M3 | CNLOPB |
| 2024 | WATER | 32937.2 | 75881.2 | M3 | CNLOPB |
Monthly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | Units | Data Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2011 | GAS | 0 | 0 | 0 | 58.7 | 1536 | 1339.3 | 1524.9 | 1833 | 1660.7 | 1037.6 | 1074.4 | 1146.7 | 1000 M3 | CNLOPB |
| 2011 | OIL | 0 | 0 | 0 | 396.1 | 17703.2 | 16360.5 | 17872.5 | 21457.5 | 20234.7 | 13214.7 | 14285.3 | 15466.7 | M3 | CNLOPB |
| 2011 | WATER | 0 | 0 | 0 | 3.31 | 86.59 | 40.4 | 46.2 | 34.6 | 2.7 | .3 | .5 | 17.2 | M3 | CNLOPB |
| 2012 | GAS | 1037.8 | 1383.6 | 630.9 | 811.7 | 966.2 | 1032.7 | 1006.6 | 455.5 | 0 | 38.9 | 846.8 | 806.9 | 1000 M3 | CNLOPB |
| 2012 | OIL | 13231 | 16866.3 | 7222.6 | 9814.5 | 13353 | 14774.7 | 14335.1 | 6412.3 | 0 | 530.7 | 12439.7 | 9990.7 | M3 | CNLOPB |
| 2012 | WATER | 4.4 | 44.2 | 21.6 | 46.4 | 100.9 | 13.9 | 12.8 | 6.1 | 0 | .5 | 12 | 3.5 | M3 | CNLOPB |
| 2013 | GAS | 0 | 0 | 391.2 | 1203.1 | 910.3 | 487.1 | 873.3 | 907 | 968.4 | 738.2 | 946.4 | 503.6 | 1000 M3 | CNLOPB |
| 2013 | OIL | 0 | 0 | 5276.1 | 14988.4 | 11630 | 6780.3 | 11048.6 | 11115.4 | 12554 | 8833.7 | 12018.5 | 6202.9 | M3 | CNLOPB |
| 2013 | WATER | 0 | 0 | 53.9 | 99.8 | 22.5 | 4.7 | 6 | 60.3 | 105.1 | 178.5 | 87.5 | 31.8 | M3 | CNLOPB |
| 2014 | GAS | 0 | 0 | 0 | 164.2 | 1392.1 | 1091.8 | 1048.5 | 1229.9 | 1878.9 | 1302.7 | 1597.1 | 1473 | 1000 M3 | CNLOPB |
| 2014 | OIL | 0 | 0 | 0 | 2196.9 | 17306.2 | 12818.6 | 12351 | 15845 | 25116.9 | 18976 | 23306.8 | 20143.1 | M3 | CNLOPB |
| 2014 | WATER | 0 | 0 | 0 | 2 | 5.8 | 2.3 | 2.5 | 10.7 | 48.1 | 17.5 | 10.9 | 10.1 | M3 | CNLOPB |
| 2015 | GAS | 1886.6 | 1493.6 | 1639.9 | 1636.2 | 1056.7 | 1474 | 1770.8 | 1628.2 | 563.6 | 0 | 1502.3 | 1738.5 | 1000 M3 | CNLOPB |
| 2015 | OIL | 24779.2 | 22482.5 | 24927.1 | 23572.1 | 13418.1 | 19503.3 | 23445.4 | 22687.2 | 7614.8 | 0 | 19385.8 | 23117.7 | M3 | CNLOPB |
| 2015 | WATER | 5.6 | 2.8 | 5.9 | 69 | 3.2 | 4.5 | 92.8 | 4.5 | 33.5 | 0 | 26.7 | 10.2 | M3 | CNLOPB |
| 2016 | GAS | 1438.7 | 1513.3 | 1499 | 1509.8 | 1550.8 | 947.9 | 1346.7 | 1840.1 | 1613.4 | 1527.5 | 1572.1 | 1444 | 1000 M3 | CNLOPB |
| 2016 | OIL | 19488.8 | 20928.5 | 20378.8 | 20113.7 | 20749 | 11799 | 16922.7 | 22547.6 | 19249 | 18835.8 | 20087.4 | 19562 | M3 | CNLOPB |
| 2016 | WATER | 18.1 | 33.2 | 17.8 | 4.1 | 2.8 | 96.6 | 9.2 | 4.8 | 14.9 | 144.7 | 3.3 | 15.1 | M3 | CNLOPB |
| 2017 | GAS | 1468.1 | 1188.3 | 1449.8 | 1461.6 | 1954.9 | 1849.4 | 1406.7 | 1888 | 1664.2 | 915.1 | 899.8 | 1029.8 | 1000 M3 | CNLOPB |
| 2017 | OIL | 18798.5 | 14579.2 | 18817.7 | 17877.1 | 22230 | 19692 | 15768.4 | 20747.5 | 19734 | 11802.3 | 10320 | 12419.6 | M3 | CNLOPB |
| 2017 | WATER | 10.8 | 15.2 | 36.4 | 40.9 | 41.7 | 69.3 | 72 | 111.7 | 137.2 | 169.9 | 149.2 | 160 | M3 | CNLOPB |
| 2018 | GAS | 882 | 886.6 | 1301.7 | 1949.5 | 1299.3 | 1287.7 | 705.1 | 603.5 | 281 | 532 | 972.9 | 1046.7 | 1000 M3 | CNLOPB |
| 2018 | OIL | 10244.3 | 10697.3 | 14676.4 | 20838.3 | 12560.2 | 14703.8 | 8863.6 | 7351.8 | 3346.1 | 7107.4 | 10920.2 | 10349.4 | M3 | CNLOPB |
| 2018 | WATER | 103.5 | 229.4 | 242.1 | 508.1 | 197.8 | 410.9 | 207.6 | 17.6 | .4 | .7 | 1.2 | 132.3 | M3 | CNLOPB |
| 2019 | GAS | 1117.4 | 887.8 | 1052.1 | 951.8 | 885.1 | 893.4 | 482.3 | 0 | 14.8 | 1073.7 | 1060.8 | 794.3 | 1000 M3 | CNLOPB |
| 2019 | OIL | 10715 | 9364.4 | 11111.7 | 10233 | 10383.3 | 10585.1 | 5522.6 | 0 | 199.1 | 12159.7 | 11719.4 | 8030.7 | M3 | CNLOPB |
| 2019 | WATER | 124.7 | 155.7 | 237.7 | 218.4 | 4.7 | 116.5 | 102.3 | 0 | 2.7 | 48.8 | 160.6 | 158 | M3 | CNLOPB |
| 2020 | GAS | 907.8 | 966.9 | 926.1 | 899.6 | 948.8 | 788.4 | 689.3 | 769.4 | 775.2 | 796.1 | 859.6 | 622.6 | 1000 M3 | CNLOPB |
| 2020 | OIL | 9990 | 10237.3 | 11000.6 | 10487.8 | 11078.2 | 8890.5 | 7643.9 | 9191.9 | 9135.6 | 8773.9 | 8982.3 | 6439.2 | M3 | CNLOPB |
| 2020 | WATER | 144 | 269.2 | 386.9 | 404.5 | 428.7 | 298.8 | 352.5 | 431.1 | 436.2 | 368.5 | 393.1 | 295.2 | M3 | CNLOPB |
| 2021 | GAS | 870.6 | 765 | 898 | 699.5 | 847.4 | 764.3 | 793.7 | 755.6 | 823.5 | 698.4 | 733.8 | 632.8 | 1000 M3 | CNLOPB |
| 2021 | OIL | 8545.4 | 7579.9 | 9269.6 | 7592.4 | 9021.8 | 8353 | 8541 | 8655.4 | 8840.6 | 7157.2 | 7031.5 | 6852.2 | M3 | CNLOPB |
| 2021 | WATER | 473.3 | 430.6 | 652.3 | 452.8 | 527.1 | 627.6 | 620.9 | 562 | 589.9 | 594.3 | 603.1 | 634.2 | M3 | CNLOPB |
| 2022 | GAS | 888.5 | 775.6 | 840.3 | 804.9 | 840.1 | 771.5 | 748 | 774.1 | 193.8 | 15.2 | 1223.3 | 1035 | 1000 M3 | CNLOPB |
| 2022 | OIL | 10733.2 | 9401.7 | 9993 | 9357.3 | 9188.2 | 8203.6 | 7909.1 | 8367.8 | 2152.7 | 179.7 | 11221.2 | 10198.3 | M3 | CNLOPB |
| 2022 | WATER | 419.3 | 598.2 | 1084.3 | 1092.3 | 1236.8 | 1327.9 | 1705.2 | 1394.8 | 317 | 23 | 1317 | 1147.9 | M3 | CNLOPB |
| 2023 | GAS | 1029.4 | 698.3 | 766.1 | 817.9 | 704.9 | 660.2 | 670.5 | 558.5 | 583.1 | 586.9 | 559.5 | 575.4 | 1000 M3 | CNLOPB |
| 2023 | OIL | 10497.2 | 7404.8 | 7554.9 | 9153.5 | 8888.6 | 7845.4 | 7933.9 | 6636.6 | 6866.1 | 6883.7 | 6417.5 | 6856.5 | M3 | CNLOPB |
| 2023 | WATER | 1660.7 | 1190.9 | 939.3 | 1012.4 | 851.6 | 1052.7 | 1043.3 | 1109.6 | 1197.3 | 1243.1 | 1221.5 | 1503.7 | M3 | CNLOPB |
| 2024 | GAS | 533.6 | 621.7 | 421.6 | 949.2 | 2147 | 3930.8 | 5422.9 | 6703.1 | 6810.9 | 1000 M3 | CNLOPB | |||
| 2024 | OIL | 5995.6 | 7244 | 4480.8 | 11055.8 | 22657.4 | 26217.7 | 24351 | 24069.7 | 20164.6 | M3 | CNLOPB | |||
| 2024 | WATER | 1246.4 | 1315.8 | 929.6 | 2068.3 | 5124.1 | 5471.8 | 5567.6 | 6410.2 | 4803.4 | M3 | CNLOPB |

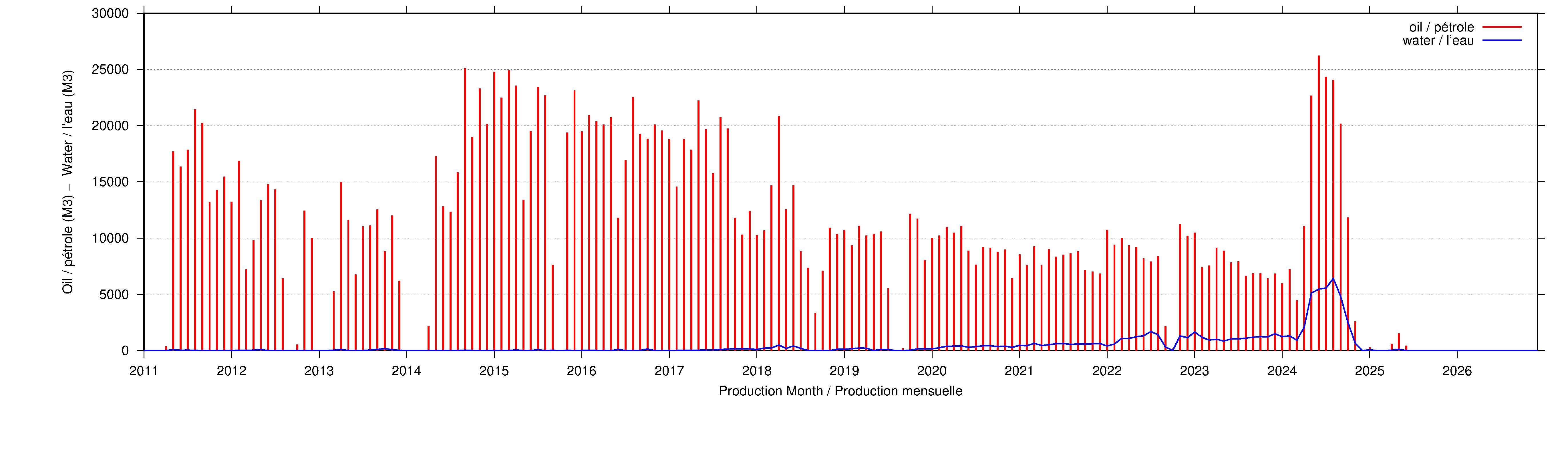

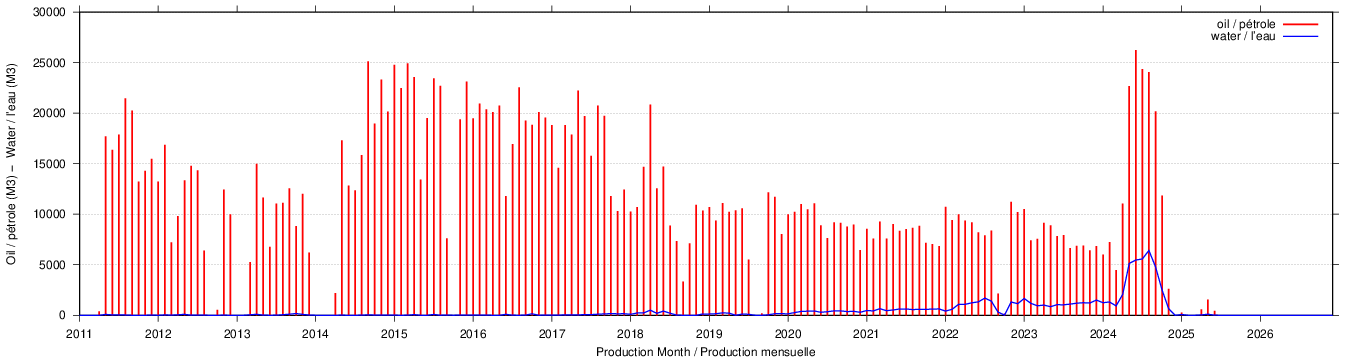

Oil & Water Production
Please note that the oil units and the water units are both cubic metres
Download this plot in Postscript format. Click the plot for a large JPEG version.
