Current well
| HMDC HIBERNIA B-16 22Z | |
|---|---|
| Unique Well ID: | 322 B16 46500 48451 |
| GSC#: | N376 |
| Spud Date: | 09-MAY-2012 |
| Area: | Grand Banks |
| Well Class: | DEVELOPMENT |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | GAS |
| Oil: | OIL |
| RT: | 76 M |
| WD: | 80 M |
| Field: | HIBERNIA |
| TD: | 4305 M |
| TVD: | 3953 M |
| Status: | PROD |
Yearly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Yearly Volume | Cumulative Volume | Units | Data Source |
|---|---|---|---|---|---|
| 2012 | GAS | 54087.6 | 54087.6 | 1000 M3 | CNLOPB |
| 2013 | GAS | 89316.4 | 143404 | 1000 M3 | CNLOPB |
| 2014 | GAS | 55883.4 | 199287.4 | 1000 M3 | CNLOPB |
| 2015 | GAS | 30883.6 | 230171 | 1000 M3 | CNLOPB |
| 2016 | GAS | 26800.2 | 256971.2 | 1000 M3 | CNLOPB |
| 2017 | GAS | 21429 | 278400.2 | 1000 M3 | CNLOPB |
| 2018 | GAS | 3149.2 | 281549.4 | 1000 M3 | CNLOPB |
| 2019 | GAS | 2870.1 | 284419.5 | 1000 M3 | CNLOPB |
| 2020 | GAS | 1487.7 | 285907.2 | 1000 M3 | CNLOPB |
| 2021 | GAS | 2404.7 | 288311.9 | 1000 M3 | CNLOPB |
| 2022 | GAS | 963.5 | 289275.4 | 1000 M3 | CNLOPB |
| 2023 | GAS | 612.5 | 289887.9 | 1000 M3 | CNLOPB |
| 2012 | OIL | 216252.9 | 216252.9 | M3 | CNLOPB |
| 2013 | OIL | 374456.5 | 590709.4 | M3 | CNLOPB |
| 2014 | OIL | 263537.7 | 854247.1 | M3 | CNLOPB |
| 2015 | OIL | 119910.6 | 974157.7 | M3 | CNLOPB |
| 2016 | OIL | 107183.3 | 1081341 | M3 | CNLOPB |
| 2017 | OIL | 86699.8 | 1168040.8 | M3 | CNLOPB |
| 2018 | OIL | 12236.9 | 1180277.7 | M3 | CNLOPB |
| 2019 | OIL | 37680.9 | 1217958.6 | M3 | CNLOPB |
| 2020 | OIL | 26854.7 | 1244813.3 | M3 | CNLOPB |
| 2021 | OIL | 39794.7 | 1284608 | M3 | CNLOPB |
| 2022 | OIL | 16145.7 | 1300753.7 | M3 | CNLOPB |
| 2023 | OIL | 8666.2 | 1309419.9 | M3 | CNLOPB |
| 2012 | WATER | 371.7 | 371.7 | M3 | CNLOPB |
| 2013 | WATER | 618.3 | 990 | M3 | CNLOPB |
| 2014 | WATER | 35552.9 | 36542.9 | M3 | CNLOPB |
| 2015 | WATER | 232688.3 | 269231.2 | M3 | CNLOPB |
| 2016 | WATER | 437239.2 | 706470.4 | M3 | CNLOPB |
| 2017 | WATER | 887351.3 | 1593821.7 | M3 | CNLOPB |
| 2018 | WATER | 183726.9 | 1777548.6 | M3 | CNLOPB |
| 2019 | WATER | 533.6 | 1778082.2 | M3 | CNLOPB |
| 2020 | WATER | 34.5 | 1778116.7 | M3 | CNLOPB |
| 2021 | WATER | 184.2 | 1778300.9 | M3 | CNLOPB |
| 2022 | WATER | 104.9 | 1778405.8 | M3 | CNLOPB |
| 2023 | WATER | 117 | 1778522.8 | M3 | CNLOPB |
Monthly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | Units | Data Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2012 | GAS | 0 | 0 | 0 | 0 | 0 | 1693.9 | 9489.7 | 3325.2 | 4391.5 | 13459.2 | 12280.5 | 9447.6 | 1000 M3 | CNLOPB |
| 2012 | OIL | 0 | 0 | 0 | 0 | 0 | 6661 | 36196.1 | 12534.7 | 20258.7 | 51554.3 | 51359.8 | 37688.3 | M3 | CNLOPB |
| 2012 | WATER | 0 | 0 | 0 | 0 | 0 | 10.4 | 3.5 | 1.3 | 1.5 | 65 | 193.4 | 96.6 | M3 | CNLOPB |
| 2013 | GAS | 7530.9 | 8427.6 | 8597.5 | 8808.6 | 8160.7 | 5992.3 | 7915.1 | 7124.9 | 6644.8 | 6302.8 | 7397.6 | 6413.6 | 1000 M3 | CNLOPB |
| 2013 | OIL | 31549.1 | 34453.6 | 34703.8 | 34113 | 33882.3 | 26409.7 | 32657.3 | 30780.4 | 29508.9 | 27328.8 | 32198.1 | 26871.5 | M3 | CNLOPB |
| 2013 | WATER | 107.5 | 25.9 | 8.1 | 58.2 | 98.2 | 25.6 | 67.1 | 72.8 | 90.1 | 15.4 | 2 | 47.4 | M3 | CNLOPB |
| 2014 | GAS | 4524.7 | 4676.8 | 4443.1 | 4463.5 | 6436.3 | 5332.1 | 5776.9 | 4127.8 | 4303.4 | 4211.2 | 4611.3 | 2976.3 | 1000 M3 | CNLOPB |
| 2014 | OIL | 19444.9 | 21118.2 | 22487 | 20435.4 | 27893.8 | 23328 | 27553.9 | 22118.5 | 19104 | 20045.3 | 23875.9 | 16132.8 | M3 | CNLOPB |
| 2014 | WATER | 22.6 | 4.8 | 8.1 | 30.6 | 19.7 | 37.3 | 102.7 | 1234.2 | 6462.7 | 7216.2 | 8635.4 | 11778.6 | M3 | CNLOPB |
| 2015 | GAS | 4200.7 | 2226.6 | 2968.5 | 2892.4 | 2191.4 | 2040.5 | 1957.3 | 2582 | 2209.1 | 723.5 | 4115.4 | 2776.2 | 1000 M3 | CNLOPB |
| 2015 | OIL | 25096.2 | 10444.7 | 11756.1 | 10183.6 | 7201.8 | 7091.8 | 7014.2 | 8665.2 | 7051.6 | 2141.1 | 13053 | 10211.3 | M3 | CNLOPB |
| 2015 | WATER | 18702.6 | 12417.1 | 18872.6 | 18112.1 | 19099.6 | 22787.1 | 31095.2 | 23306.7 | 12429.1 | 2988.5 | 24501.9 | 28375.8 | M3 | CNLOPB |
| 2016 | GAS | 2139.4 | 3849.2 | 1441.8 | 2407.9 | 4572.8 | 2257.1 | 2932.1 | 3289.1 | 2004.4 | 268 | 0 | 1638.4 | 1000 M3 | CNLOPB |
| 2016 | OIL | 7893.8 | 16042.9 | 5533.2 | 9039 | 17559 | 8459.5 | 10832.4 | 13396.8 | 9208.2 | 1292.5 | 0 | 7926 | M3 | CNLOPB |
| 2016 | WATER | 25618.1 | 47792.4 | 33297.3 | 31554.1 | 65008.9 | 29335 | 45385.9 | 61105.6 | 48098.5 | 6715.9 | 0 | 43327.5 | M3 | CNLOPB |
| 2017 | GAS | 2654.4 | 2019.2 | 1658.8 | 1662.7 | 1779.8 | 1902.6 | 1862.1 | 1574.9 | 1518.1 | 1755 | 916.9 | 2124.5 | 1000 M3 | CNLOPB |
| 2017 | OIL | 10248.4 | 6876.3 | 6512.6 | 7440.3 | 7676.4 | 7797.2 | 6720 | 7220.1 | 6523.2 | 7155.9 | 3624.8 | 8904.6 | M3 | CNLOPB |
| 2017 | WATER | 85726.3 | 56727.6 | 60150.3 | 68221.9 | 76435.1 | 79439.3 | 81610.8 | 68798.7 | 76226.5 | 88491.7 | 36132.2 | 109390.9 | M3 | CNLOPB |
| 2018 | GAS | 1536.9 | 1246.1 | 183.7 | 162 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 20.5 | 1000 M3 | CNLOPB |
| 2018 | OIL | 6243.5 | 4777.7 | 755.4 | 416.6 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 43.7 | M3 | CNLOPB |
| 2018 | WATER | 84562.2 | 69962.2 | 15573.8 | 12117.8 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1510.9 | M3 | CNLOPB |
| 2019 | GAS | 6.7 | 144.6 | 426.6 | 360.7 | 246.8 | 289.3 | 166.4 | 5.3 | 31.3 | 518.6 | 526.3 | 147.5 | 1000 M3 | CNLOPB |
| 2019 | OIL | 98.7 | 1979.6 | 5800.3 | 4618.1 | 2500.9 | 3214.9 | 1836.9 | 81.2 | 408.6 | 7130.2 | 7917.2 | 2094.3 | M3 | CNLOPB |
| 2019 | WATER | .6 | 8 | 16.9 | 13.4 | 14.4 | 32.8 | 17.9 | 0 | 2.9 | 207.6 | 217.9 | 1.2 | M3 | CNLOPB |
| 2020 | GAS | 26.9 | 29.6 | 0 | 16.2 | 79.8 | 0 | 144.5 | 269.8 | 230 | 242 | 154.6 | 294.3 | 1000 M3 | CNLOPB |
| 2020 | OIL | 394.6 | 350.4 | 0 | 468.3 | 1647.2 | 0 | 1856.2 | 4087.4 | 5755.4 | 5744.5 | 2279.8 | 4270.9 | M3 | CNLOPB |
| 2020 | WATER | .2 | .1 | 0 | 6.2 | 15.5 | 0 | 1.8 | 2.8 | 2.9 | 3.8 | .4 | .8 | M3 | CNLOPB |
| 2021 | GAS | 288.9 | 233.2 | 313.8 | 143.9 | 181.7 | 230.4 | 231.9 | 218.9 | 203.8 | 109.4 | 104.3 | 144.5 | 1000 M3 | CNLOPB |
| 2021 | OIL | 3547.2 | 2785.2 | 3377.7 | 2944.7 | 3264.8 | 3440.4 | 3516.1 | 3522.1 | 3862.4 | 2901.6 | 2587 | 4045.5 | M3 | CNLOPB |
| 2021 | WATER | 30 | 33.9 | 13 | 6.1 | 5.1 | 2.4 | 2.8 | 11.4 | 19.8 | 17.9 | 16.4 | 25.4 | M3 | CNLOPB |
| 2022 | GAS | 190 | 5.5 | 0 | 41.4 | 0 | 245.9 | 206.3 | 193.2 | 53.9 | 0 | 0 | 27.3 | 1000 M3 | CNLOPB |
| 2022 | OIL | 4337.8 | 113 | 0 | 822.7 | 0 | 3682.5 | 3319.4 | 2805.4 | 742.9 | 0 | 0 | 322 | M3 | CNLOPB |
| 2022 | WATER | 32.8 | .8 | 0 | 6.2 | 0 | 34.5 | 21.2 | 7.8 | 1.2 | 0 | 0 | .4 | M3 | CNLOPB |
| 2023 | GAS | 59.2 | 57.2 | 0 | 84.5 | 104.6 | 98.8 | 68.4 | 114.8 | 25 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2023 | OIL | 760.2 | 830.2 | 0 | 1201.8 | 1505.4 | 1399.1 | 962.5 | 1649.4 | 357.6 | 0 | 0 | 0 | M3 | CNLOPB |
| 2023 | WATER | 1 | .6 | 0 | 4.1 | 4.9 | 4.8 | 3.1 | 80.9 | 17.6 | 0 | 0 | 0 | M3 | CNLOPB |
| 2024 | GAS | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB | |||
| 2024 | OIL | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB | |||
| 2024 | WATER | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |

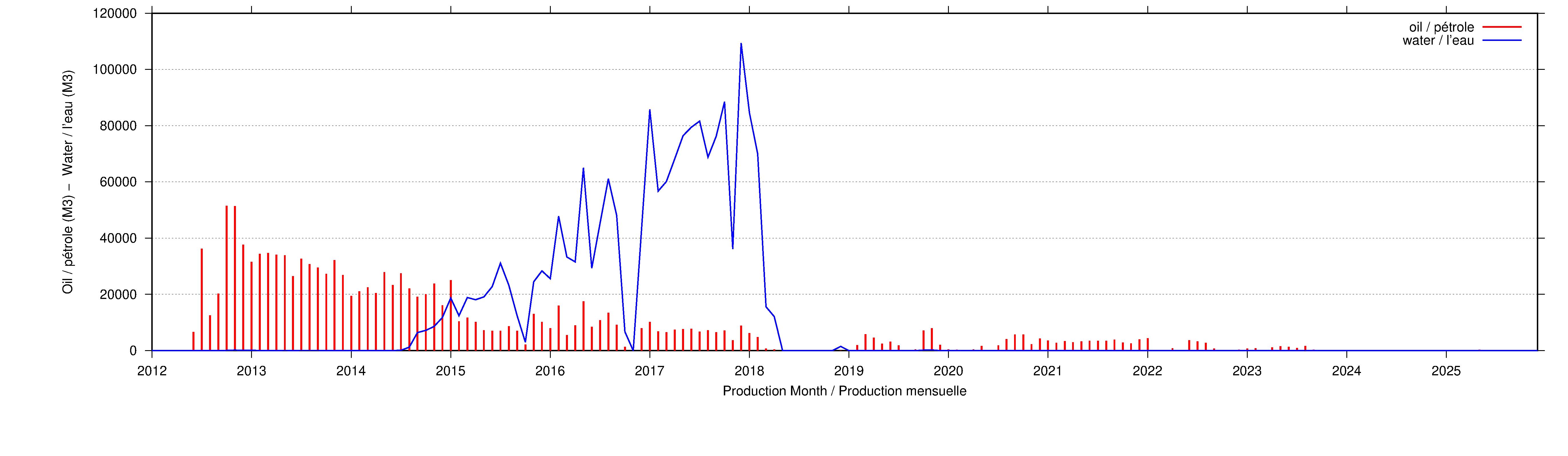

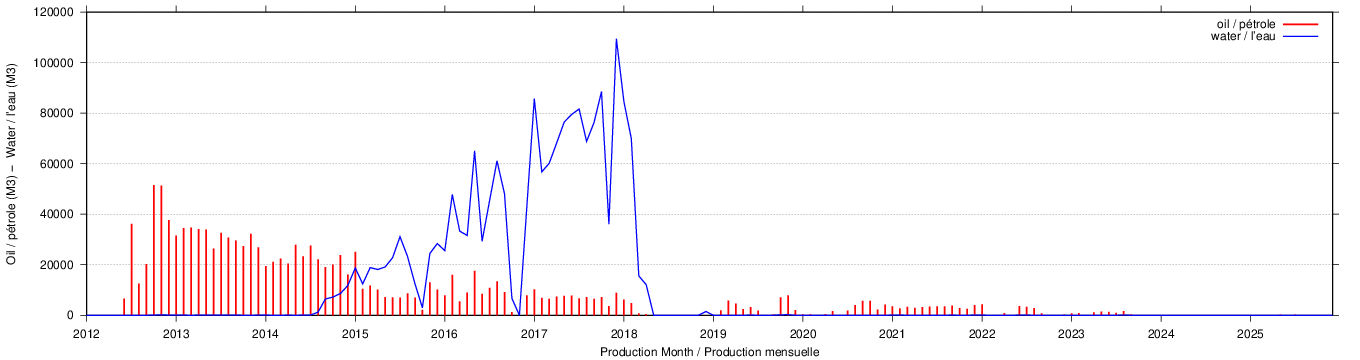

Oil & Water Production
Please note that the oil units and the water units are both cubic metres
Download this plot in Postscript format. Click the plot for a large JPEG version.
