Current well
| HMDC HIBERNIA B-16 45Z | |
|---|---|
| Unique Well ID: | 345 B16 46500 48451 |
| GSC#: | N380 |
| Spud Date: | 24-SEP-2012 |
| Area: | Grand Banks |
| Well Class: | DEVELOPMENT |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | GAS |
| Oil: | OIL |
| RT: | 76 M |
| WD: | 80 M |
| Field: | HIBERNIA |
| TD: | 4562 M |
| TVD: | 3944.59 M |
| Status: | PROD |
Yearly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Yearly Volume | Cumulative Volume | Units | Data Source |
|---|---|---|---|---|---|
| 2012 | GAS | 16586.2 | 16586.2 | 1000 M3 | CNLOPB |
| 2013 | GAS | 67140 | 83726.2 | 1000 M3 | CNLOPB |
| 2014 | GAS | 47746.1 | 131472.3 | 1000 M3 | CNLOPB |
| 2015 | GAS | 46506.5 | 177978.8 | 1000 M3 | CNLOPB |
| 2016 | GAS | 34305.4 | 212284.2 | 1000 M3 | CNLOPB |
| 2017 | GAS | 24605.7 | 236889.9 | 1000 M3 | CNLOPB |
| 2018 | GAS | 13467.8 | 250357.7 | 1000 M3 | CNLOPB |
| 2019 | GAS | 9952.2 | 260309.9 | 1000 M3 | CNLOPB |
| 2020 | GAS | 86.3 | 260396.2 | 1000 M3 | CNLOPB |
| 2021 | GAS | 9601.4 | 269997.6 | 1000 M3 | CNLOPB |
| 2022 | GAS | 773.6 | 270771.2 | 1000 M3 | CNLOPB |
| 2023 | GAS | 18 | 270789.2 | 1000 M3 | CNLOPB |
| 2012 | OIL | 63396 | 63396 | M3 | CNLOPB |
| 2013 | OIL | 247726.9 | 311122.9 | M3 | CNLOPB |
| 2014 | OIL | 194022.6 | 505145.5 | M3 | CNLOPB |
| 2015 | OIL | 169353.8 | 674499.3 | M3 | CNLOPB |
| 2016 | OIL | 138663.2 | 813162.5 | M3 | CNLOPB |
| 2017 | OIL | 100517.2 | 913679.7 | M3 | CNLOPB |
| 2018 | OIL | 41413.8 | 955093.5 | M3 | CNLOPB |
| 2019 | OIL | 18527.5 | 973621 | M3 | CNLOPB |
| 2020 | OIL | 301.7 | 973922.7 | M3 | CNLOPB |
| 2021 | OIL | 26993.6 | 1000916.3 | M3 | CNLOPB |
| 2022 | OIL | 2616 | 1003532.3 | M3 | CNLOPB |
| 2023 | OIL | 68.3 | 1003600.6 | M3 | CNLOPB |
| 2012 | WATER | 23.7 | 23.7 | M3 | CNLOPB |
| 2013 | WATER | 32651.8 | 32675.5 | M3 | CNLOPB |
| 2014 | WATER | 66047.9 | 98723.4 | M3 | CNLOPB |
| 2015 | WATER | 161413.7 | 260137.1 | M3 | CNLOPB |
| 2016 | WATER | 201194.8 | 461331.9 | M3 | CNLOPB |
| 2017 | WATER | 203952.2 | 665284.1 | M3 | CNLOPB |
| 2018 | WATER | 167170.3 | 832454.4 | M3 | CNLOPB |
| 2019 | WATER | 121885.6 | 954340 | M3 | CNLOPB |
| 2020 | WATER | 2144.8 | 956484.8 | M3 | CNLOPB |
| 2021 | WATER | 181388.8 | 1137873.6 | M3 | CNLOPB |
| 2022 | WATER | 16843.1 | 1154716.7 | M3 | CNLOPB |
| 2023 | WATER | 359.1 | 1155075.8 | M3 | CNLOPB |
Monthly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | Units | Data Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2012 | GAS | 232.8 | 6431.6 | 9921.8 | 1000 M3 | CNLOPB | |||||||||
| 2012 | OIL | 873.7 | 25726.1 | 36796.2 | M3 | CNLOPB | |||||||||
| 2012 | WATER | 2.3 | 10.2 | 11.2 | M3 | CNLOPB | |||||||||
| 2013 | GAS | 6327 | 6538.8 | 6983.6 | 6187.3 | 5897.7 | 4056.7 | 5896.3 | 5444.2 | 5058.8 | 5410.8 | 4676.6 | 4662.2 | 1000 M3 | CNLOPB |
| 2013 | OIL | 23620.9 | 23763.3 | 25122.1 | 21009.5 | 21582.3 | 15814.5 | 22460 | 19748.2 | 18790.3 | 19668 | 18911.9 | 17235.9 | M3 | CNLOPB |
| 2013 | WATER | 13 | 29.1 | 203.3 | 1490.5 | 2556 | 2023.4 | 3167.4 | 4385.1 | 5704 | 5708.3 | 3455.5 | 3916.2 | M3 | CNLOPB |
| 2014 | GAS | 4469.8 | 5259.9 | 4806 | 3819.1 | 5188.5 | 4356.4 | 4174.4 | 4122.6 | 3416.4 | 2856.4 | 3052.1 | 2224.5 | 1000 M3 | CNLOPB |
| 2014 | OIL | 17237 | 21307.1 | 19584.6 | 16010.1 | 22674.1 | 17345 | 15601.1 | 15471.2 | 13322.8 | 14015.1 | 11534 | 9920.5 | M3 | CNLOPB |
| 2014 | WATER | 3946.9 | 3610.3 | 6015.5 | 3484.3 | 2705.5 | 3906.9 | 6673.1 | 7977.2 | 4952.9 | 3618.7 | 8887.1 | 10269.5 | M3 | CNLOPB |
| 2015 | GAS | 3376.8 | 3083.1 | 3295.5 | 3244.7 | 4941.7 | 6048.6 | 5622.1 | 5081.2 | 2291.6 | 0 | 4967.6 | 4553.6 | 1000 M3 | CNLOPB |
| 2015 | OIL | 9331.2 | 13007.1 | 14233.9 | 11780.7 | 16382.1 | 21323.7 | 20222.1 | 19288 | 8510.9 | 0 | 17593.1 | 17681 | M3 | CNLOPB |
| 2015 | WATER | 15948.7 | 9186.2 | 10119.4 | 10270.5 | 14999.9 | 18900.5 | 17823.6 | 17687.5 | 8276.4 | 0 | 17225 | 20976 | M3 | CNLOPB |
| 2016 | GAS | 2872 | 3387.3 | 3521.4 | 3097.6 | 3632.9 | 2379.3 | 2040.8 | 3254.4 | 3219 | 2237.2 | 2278.8 | 2384.7 | 1000 M3 | CNLOPB |
| 2016 | OIL | 11555 | 13378.7 | 13899.6 | 13138.8 | 15298.2 | 9080.9 | 7325.3 | 12238.8 | 12984.2 | 9590.4 | 10151.8 | 10021.5 | M3 | CNLOPB |
| 2016 | WATER | 14920.5 | 16651.2 | 16781.7 | 15159.5 | 19366.6 | 12459.8 | 13265.6 | 17779.4 | 20501 | 17659.8 | 19274.1 | 17375.6 | M3 | CNLOPB |
| 2017 | GAS | 2388.4 | 2274.9 | 2370.7 | 2031.1 | 2303.4 | 2343.9 | 2210.2 | 1762.9 | 1770.9 | 1567.9 | 1745.4 | 1836 | 1000 M3 | CNLOPB |
| 2017 | OIL | 9693.4 | 9325.4 | 10634.3 | 9011.9 | 9360.2 | 9025.5 | 8735.7 | 6860.9 | 7316.5 | 6343 | 6948.6 | 7261.8 | M3 | CNLOPB |
| 2017 | WATER | 17284.4 | 14443.8 | 20087.7 | 17477.6 | 19222.9 | 18071.2 | 17640 | 15272.5 | 18089.3 | 13025.6 | 16529.7 | 16807.5 | M3 | CNLOPB |
| 2018 | GAS | 1421.5 | 1689.7 | 198.8 | 1511.5 | 2166.6 | 2402.5 | 1449.9 | 991.1 | 0 | 248.3 | 196.1 | 1191.8 | 1000 M3 | CNLOPB |
| 2018 | OIL | 3524.6 | 6438.1 | 656.6 | 5594.3 | 7857.2 | 9043 | 2807.7 | 1163 | 0 | 317.8 | 210.9 | 3800.6 | M3 | CNLOPB |
| 2018 | WATER | 16518 | 16253.7 | 0 | 14741.4 | 27072.2 | 26752.9 | 22793.4 | 15050.6 | 0 | 3935 | 2889 | 21164.1 | M3 | CNLOPB |
| 2019 | GAS | 1301.8 | 218 | 287.4 | 3069.2 | 99.6 | 0 | 0 | 0 | 279.8 | 2892.9 | 988.6 | 814.9 | 1000 M3 | CNLOPB |
| 2019 | OIL | 3736.3 | 647.9 | 761.1 | 3351.6 | 107.5 | 0 | 0 | 0 | 359.5 | 3764 | 3294.6 | 2505 | M3 | CNLOPB |
| 2019 | WATER | 17583.5 | 3405.4 | 5765.1 | 27158.9 | 1121 | 0 | 0 | 0 | 2151.8 | 26972.7 | 20988.1 | 16739.1 | M3 | CNLOPB |
| 2020 | GAS | 3.1 | 0 | 0 | 0 | 20.4 | 0 | 0 | 28.7 | 0 | 0 | 0 | 34.1 | 1000 M3 | CNLOPB |
| 2020 | OIL | 9.8 | 0 | 0 | 0 | 71.7 | 0 | 0 | 100.4 | 0 | 0 | 0 | 119.8 | M3 | CNLOPB |
| 2020 | WATER | 48.6 | 0 | 0 | 0 | 511 | 0 | 0 | 709.6 | 0 | 0 | 0 | 875.6 | M3 | CNLOPB |
| 2021 | GAS | 66.2 | 0 | 201.3 | 496.9 | 978.1 | 1810.9 | 1498.2 | 1612.9 | 1629 | 1140.9 | 167 | 0 | 1000 M3 | CNLOPB |
| 2021 | OIL | 226.6 | 0 | 686 | 593.6 | 2854.3 | 5941.8 | 3991.6 | 4668 | 4518 | 3090.7 | 423 | 0 | M3 | CNLOPB |
| 2021 | WATER | 1748 | 0 | 5288.1 | 12441.4 | 19798.9 | 36131.4 | 27962 | 28901.7 | 26536.7 | 19784.5 | 2796.1 | 0 | M3 | CNLOPB |
| 2022 | GAS | 0 | 0 | 0 | 0 | 0 | 265.2 | 99 | 409.4 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2022 | OIL | 0 | 0 | 0 | 0 | 0 | 812.1 | 315.8 | 1488.1 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2022 | WATER | 0 | 0 | 0 | 0 | 0 | 5289.3 | 2139.8 | 9414 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2023 | GAS | 0 | 0 | 0 | 6.2 | 11.8 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2023 | OIL | 0 | 0 | 0 | 23.8 | 44.5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2023 | WATER | 0 | 0 | 0 | 129.6 | 229.5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2024 | GAS | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB | |||
| 2024 | OIL | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB | |||
| 2024 | WATER | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |

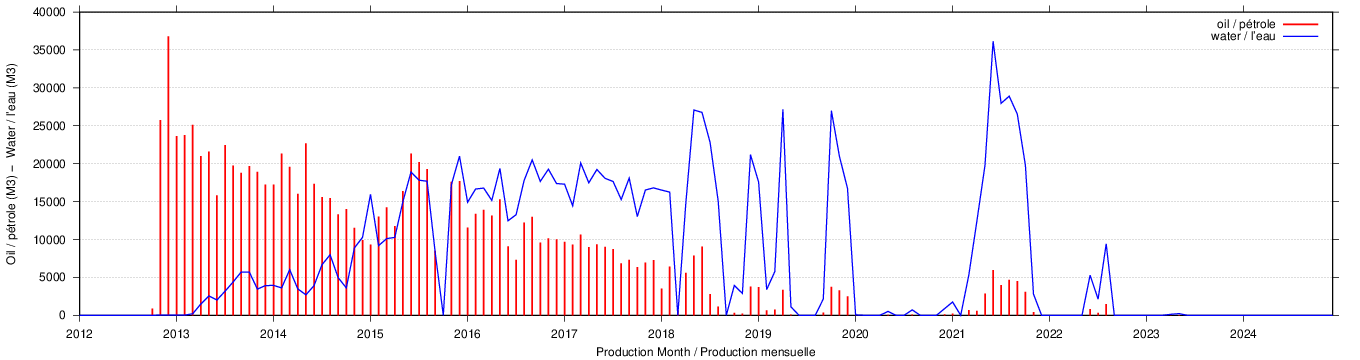

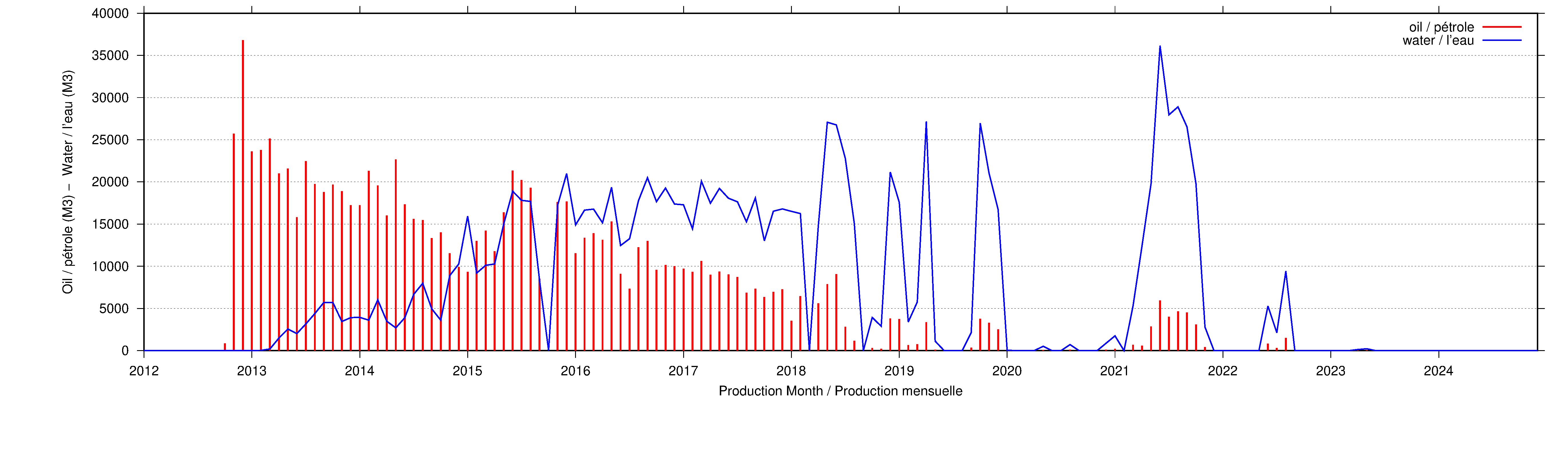

Oil & Water Production
Please note that the oil units and the water units are both cubic metres
Download this plot in Postscript format. Click the plot for a large JPEG version.
