Production
| Current Wells | Production | |||||
| Location | Drilling | Testing | Reports | E-logs | Samples | |
| Pressure | Geochem | Temperature | Maturity | Lithostrat | Biostrat | |
Current well
| HMDC HIBERNIA B-16 10Y | |
|---|---|
| Unique Well ID: | 310 B16 46500 48452 |
| GSC#: | N381 |
| Spud Date: | 02-DEC-2012 |
| Area: | Grand Banks |
| Well Class: | WATER INJECTOR |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | GAS |
| Oil: | OIL |
| RT: | 76 M |
| WD: | 80 M |
| Field: | HIBERNIA |
| TD: | 4818 M |
| TVD: | 3940 M |
| Status: | ABAND |
Yearly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Yearly Volume | Cumulative Volume | Units | Data Source |
|---|---|---|---|---|---|
| 2013 | GAS | 106183.1 | 106183.1 | 1000 M3 | CNLOPB |
| 2014 | GAS | 94450.6 | 200633.7 | 1000 M3 | CNLOPB |
| 2013 | OIL | 446479.1 | 446479.1 | M3 | CNLOPB |
| 2014 | OIL | 416723.8 | 863202.9 | M3 | CNLOPB |
| 2013 | WATER | 10771.9 | 10771.9 | M3 | CNLOPB |
| 2014 | WATER | 117616 | 128387.9 | M3 | CNLOPB |
Monthly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | Units | Data Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2013 | GAS | 1987.5 | 5217 | 6325 | 11735.3 | 8364.5 | 14957 | 12478.6 | 11676.5 | 11350.5 | 11680.2 | 10411 | 1000 M3 | CNLOPB | |
| 2013 | OIL | 8285.5 | 21288.9 | 23862.2 | 50726.5 | 38003.9 | 57292.2 | 51483.3 | 51872.4 | 48864.5 | 51864.1 | 42935.6 | M3 | CNLOPB | |
| 2013 | WATER | 0 | 135.2 | 167.2 | 167.3 | 269.4 | 880.3 | 1178.4 | 915.8 | 1666.3 | 2396.2 | 2995.8 | M3 | CNLOPB | |
| 2014 | GAS | 8776.5 | 11133.2 | 12219.8 | 8205.3 | 10827.7 | 8265.7 | 10614.6 | 9735.9 | 9352.5 | 5319.4 | 1000 M3 | CNLOPB | ||
| 2014 | OIL | 35709.2 | 48117.8 | 55913.2 | 39169.1 | 50307.4 | 35304.8 | 46251.3 | 43621.7 | 39388.3 | 22941 | M3 | CNLOPB | ||
| 2014 | WATER | 3444.4 | 4715.2 | 6474.9 | 6834.6 | 10107.9 | 9189.1 | 15644.9 | 19606.5 | 22830 | 18768.5 | M3 | CNLOPB |

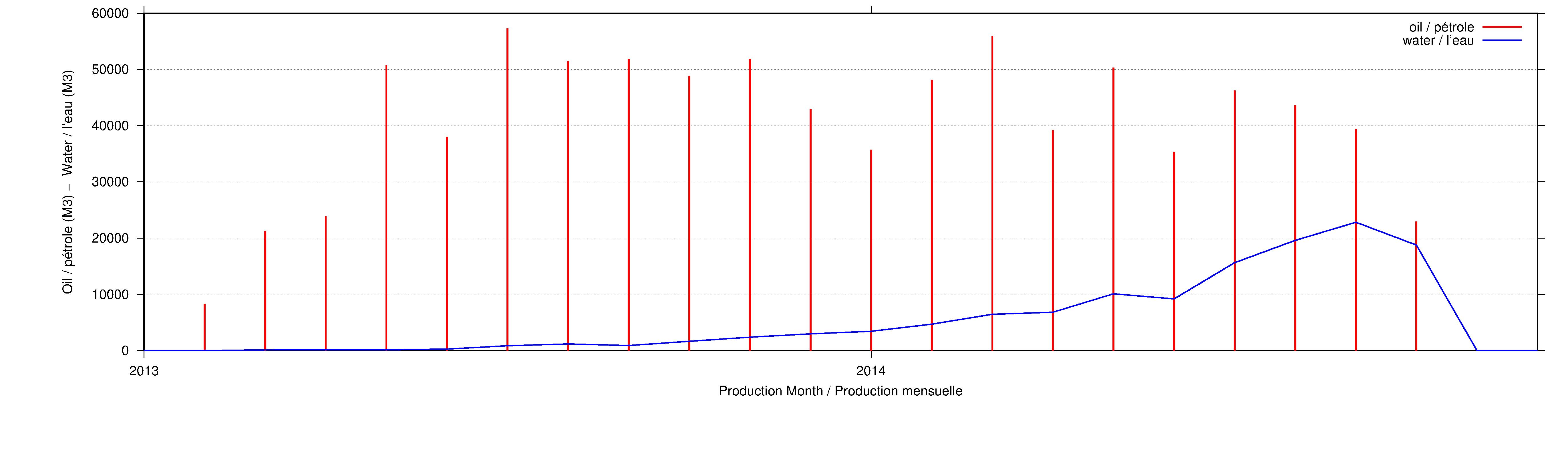

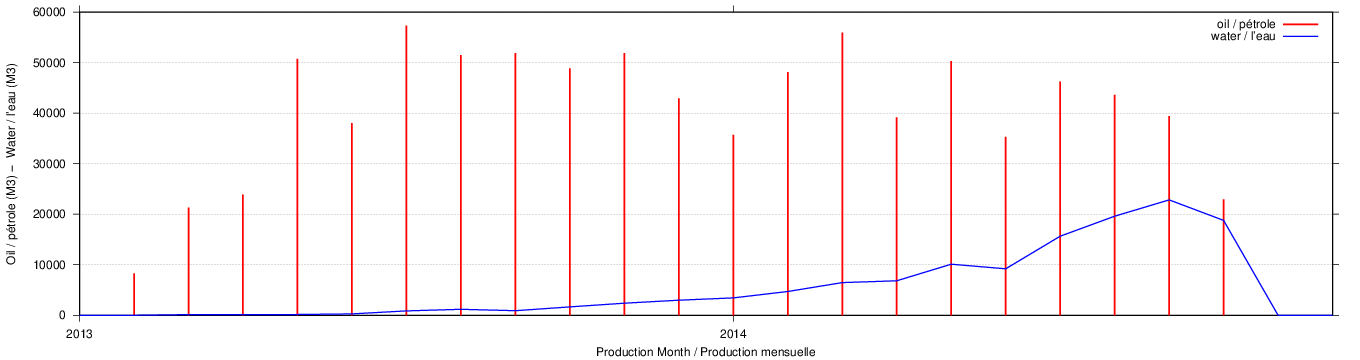

Oil & Water Production
Please note that the oil units and the water units are both cubic metres
Download this plot in Postscript format. Click the plot for a large JPEG version.
