Current well
| EXXONMOBIL ET AL HEBRON L-93 30Z | |
|---|---|
| Unique Well ID: | 330 L93 46400 48151 |
| GSC#: | N511 |
| Spud Date: | 11-MAY-2022 |
| Area: | Grand Banks |
| Well Class: | DEVELOPMENT |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | GAS |
| Oil: | OIL |
| RT: | 81.6 M |
| WD: | 93 M |
| Field: | HEBRON |
| TD: | 5933 M |
| TVD: | 3942.27 M |
| Status: | PROD |
Yearly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Yearly Volume | Cumulative Volume | Units | Data Source |
|---|---|---|---|---|---|
| 2022 | GAS | 7958.2 | 7958.2 | 1000 M3 | CNLOPB |
| 2023 | GAS | 2385.2 | 10343.4 | 1000 M3 | CNLOPB |
| 2024 | GAS | 212.6 | 10556 | 1000 M3 | CNLOPB |
| 2025 | GAS | 423.5 | 10979.5 | 1000 M3 | CNLOPB |
| 2026 | GAS | 6452.8 | 17432.3 | 1000 M3 | CNLOER |
| 2022 | OIL | 75390.1 | 75390.1 | M3 | CNLOPB |
| 2023 | OIL | 21891.6 | 97281.7 | M3 | CNLOPB |
| 2024 | OIL | 1889.7 | 99171.4 | M3 | CNLOPB |
| 2025 | OIL | 3804.3 | 102975.7 | M3 | CNLOPB |
| 2026 | OIL | 59201.1 | 162176.8 | M3 | CNLOER |
| 2022 | WATER | 3150.2 | 3150.2 | M3 | CNLOPB |
| 2023 | WATER | 736.1 | 3886.3 | M3 | CNLOPB |
| 2024 | WATER | 12.4 | 3898.7 | M3 | CNLOPB |
| 2026 | WATER | 681.1 | 4579.8 | M3 | CNLOER |
Monthly Production
Export to Excel | Print Version (Wide Table Format)| Year | Fluid | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | Units | Data Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2022 | GAS | 645.3 | 3498.8 | 1172.6 | 734.6 | 284.2 | 558.7 | 1064 | 1000 M3 | CNLOPB | |||||
| 2022 | OIL | 5586.7 | 32284.4 | 10472.7 | 7552.8 | 3803.2 | 5591.9 | 10098.4 | M3 | CNLOPB | |||||
| 2022 | WATER | 237.7 | 1623.8 | 372.8 | 141.2 | 141.4 | 223.3 | 410 | M3 | CNLOPB | |||||
| 2023 | GAS | 147.7 | 298.3 | 892.5 | 930.8 | 115.9 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2023 | OIL | 1331.9 | 2733.6 | 8092.8 | 8640.4 | 1092.9 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2023 | WATER | 63.9 | 2.6 | 154 | 454.2 | 61.4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2024 | GAS | 0 | 0 | 0 | 0 | 0 | 0 | 18.7 | 193.9 | 0 | 0 | 0 | 0 | 1000 M3 | CNLOPB |
| 2024 | OIL | 0 | 0 | 0 | 0 | 0 | 0 | 171.5 | 1718.2 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2024 | WATER | 0 | 0 | 0 | 0 | 0 | 0 | 10 | 2.4 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2025 | GAS | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 423.5 | 0 | 1000 M3 | CNLOPB |
| 2025 | OIL | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 3804.3 | 0 | M3 | CNLOPB |
| 2025 | WATER | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | M3 | CNLOPB |
| 2026 | GAS | 0 | 1041.1 | 398.7 | 938.3 | 2425.2 | 1649.5 | 1000 M3 | CNLOER | ||||||
| 2026 | OIL | 0 | 9199.2 | 3471 | 9725.3 | 22291.6 | 14514 | M3 | CNLOER | ||||||
| 2026 | WATER | 0 | 19.7 | 4 | 22.7 | 365.3 | 269.4 | M3 | CNLOER |

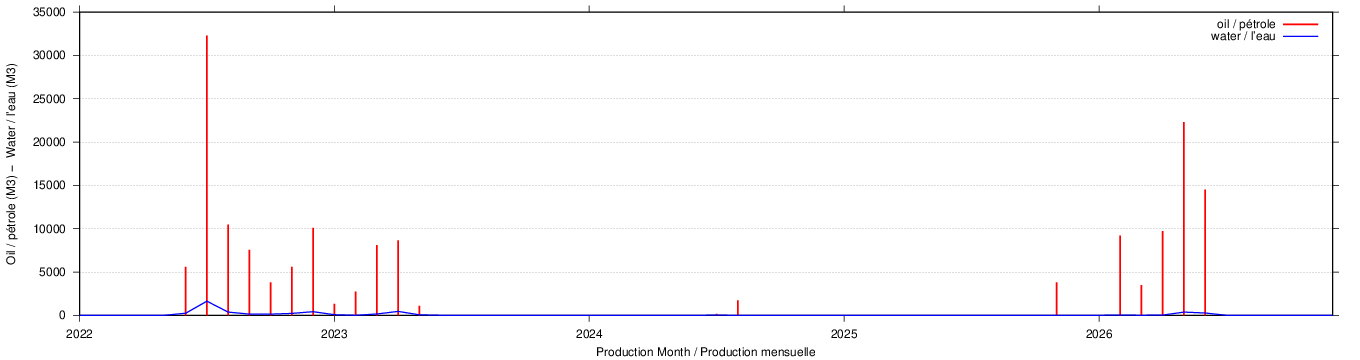

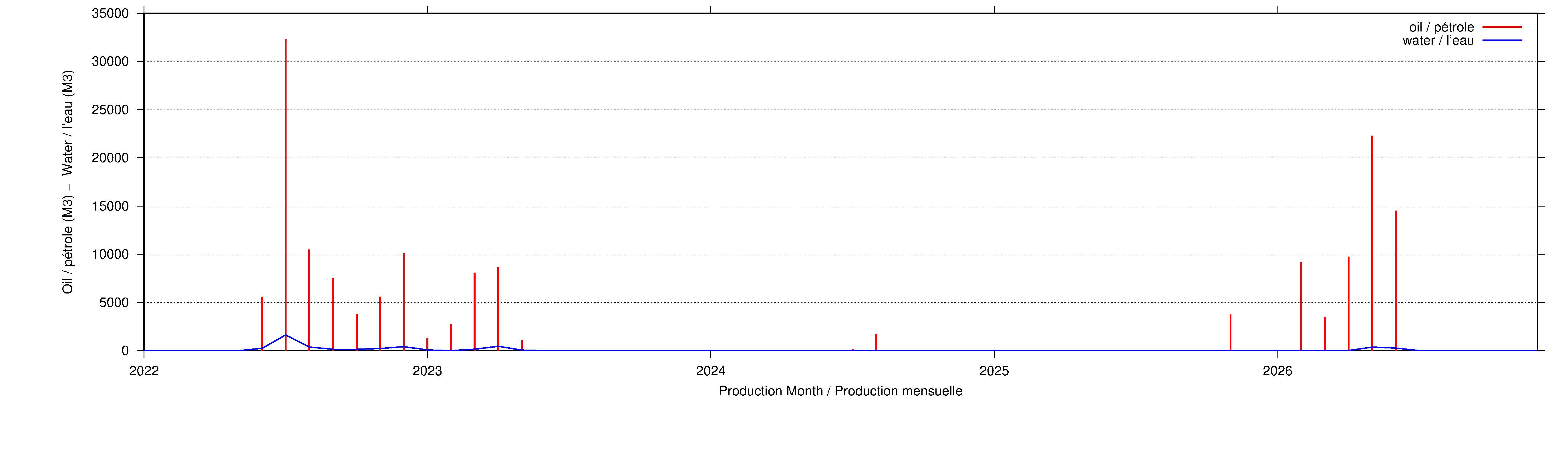

Oil & Water Production
Please note that the oil units and the water units are both cubic metres
Download this plot in Postscript format. Click the plot for a large JPEG version.
