Well Sample Analyses
| Current Wells | Production | |||||
| Location | Drilling | Testing | Reports | E-logs | Samples | |
| Pressure | Geochem | Temperature | Maturity | Lithostrat | Biostrat | |
Current well
| HMDC HIBERNIA B-16 55 | |
|---|---|
| Unique Well ID: | 355 B16 46500 48450 |
| GSC#: | N304 |
| Spud Date: | 25-MAY-2006 |
| Area: | Grand Banks |
| Well Class: | WATER INJECTOR |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | UNRATED |
| Oil: | UNRATED |
| RT: | 76 M |
| WD: | 80 M |
| Field: | HIBERNIA |
| TD: | 7310 M |
| TVD: | 4403 M |
| Status: | ABAND |
Core Analysis Summary
Export to Excel | Print Version (Wide Table Format)| Year | Author | Core # | Number of Analyses | Top Analysis (M) | Bottom Analysis (M) | Average Porosity (%) |
|---|---|---|---|---|---|---|
| 2008 | OMNI LABORATORIES | CORE #01 | 141 | 7187.3 | 15.79 | |
| 2008 | OMNI LABORATORIES | CORE #02 | 60 | 7247.3 | 16.68 |

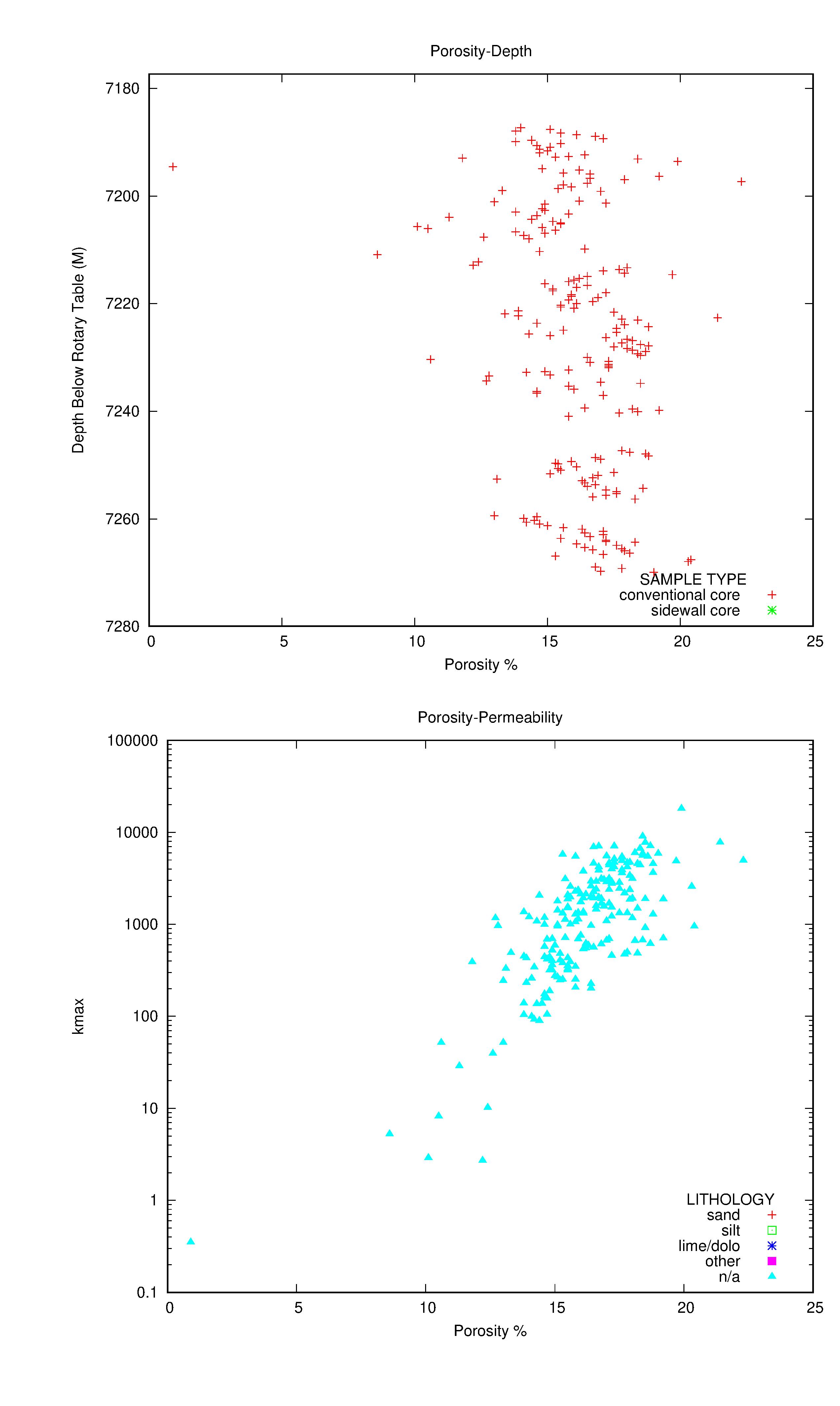

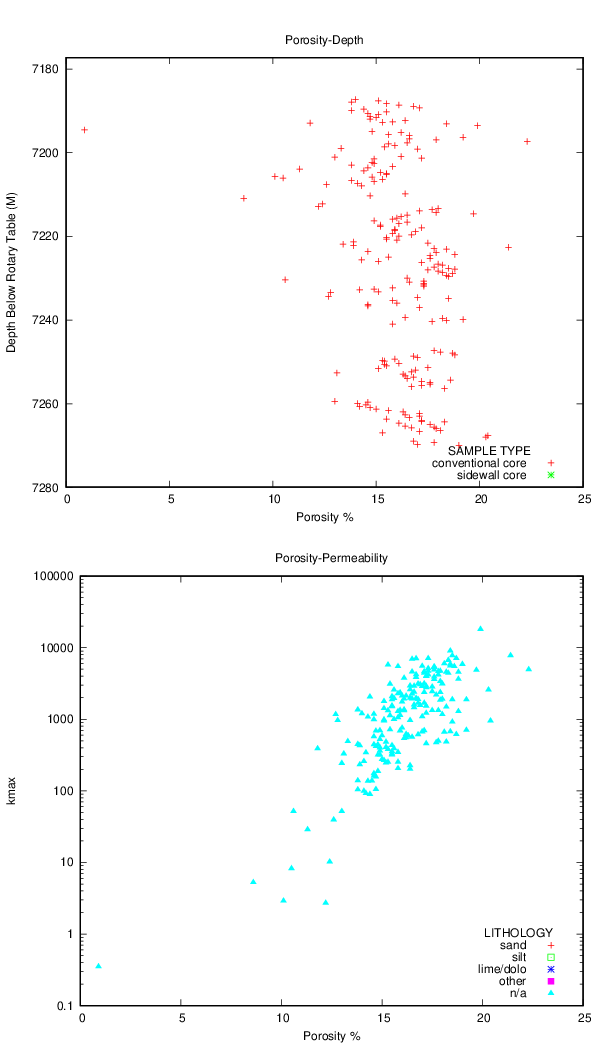

Plots
Download this plot in Postscript format. Click the plot for a large JPEG version.
