Current well
| HUSKY OIL ET AL TIGER'S EYE D-17 | |
|---|---|
| Unique Well ID: | 300 D17 46400 48000 |
| GSC#: | N471 |
| Spud Date: | 03-APR-2019 |
| Area: | Grand Banks |
| Well Class: | EXPLORATORY |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | UNRATED |
| Oil: | UNRATED |
| RT: | 21.15 M |
| WD: | 116.5 M |
| Field: | |
| TD: | 3830 M |
| TVD: | 3720.97 M |
| Status: | ABAND |
Core Analysis Summary
Export to Excel | Print Version (Wide Table Format)| Year | Author | Core # | Number of Analyses | Top Analysis (M) | Bottom Analysis (M) | Average Porosity (%) |
|---|---|---|---|---|---|---|
| 2019 | STRATUM RESERVOIR | SIDEWALL CORE | 14 | 3212 | 11.82 |

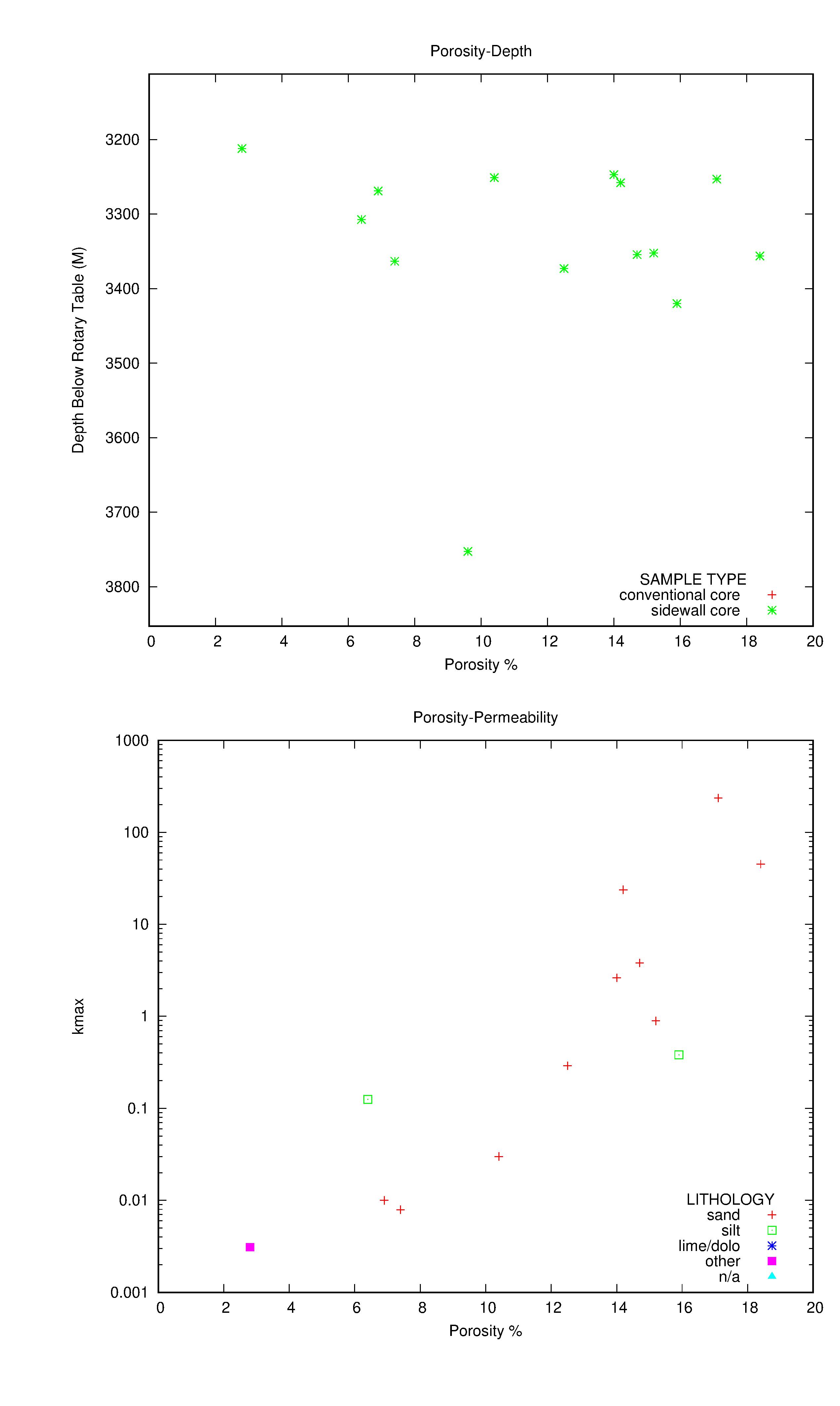

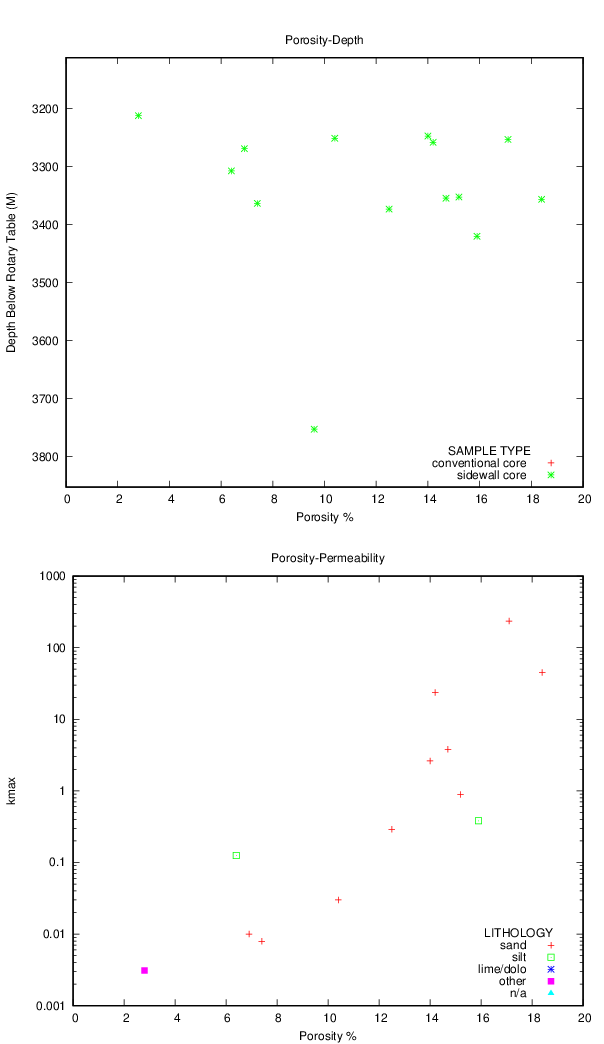

Plots
Download this plot in Postscript format. Click the plot for a large JPEG version.
