Current well
| HMDC HIBERNIA K-39 | |
|---|---|
| Unique Well ID: | 300 K39 46500 48450 |
| GSC#: | N474 |
| Spud Date: | 26-JUN-2019 |
| Area: | Grand Banks |
| Well Class: | DELINEATION |
| Basin: | JEANNE D'ARC BASIN |
| Gas: | UNRATED |
| Oil: | UNRATED |
| RT: | 31 M |
| WD: | 79 M |
| Field: | HIBERNIA |
| TD: | 2982 M |
| TVD: | 2861.74 M |
| Status: | ABAND |
Core Analysis Summary
Export to Excel | Print Version (Wide Table Format)| Year | Author | Core # | Number of Analyses | Top Analysis (M) | Bottom Analysis (M) | Average Porosity (%) |
|---|---|---|---|---|---|---|
| 2020 | CORE LABORATORIES | SIDEWALL CORE | 165 | 2037.2 | 17.11 |

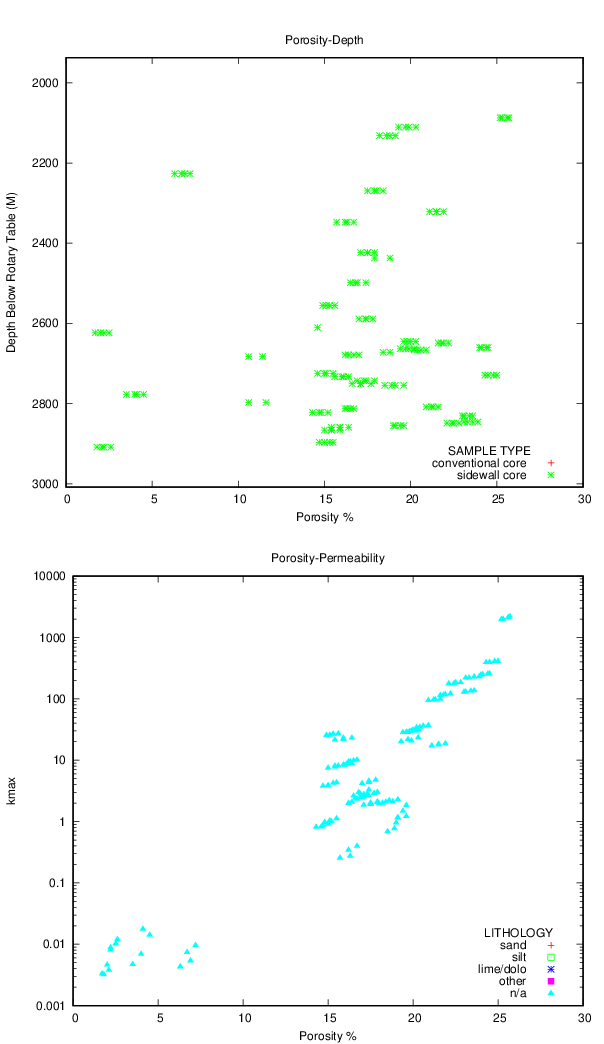

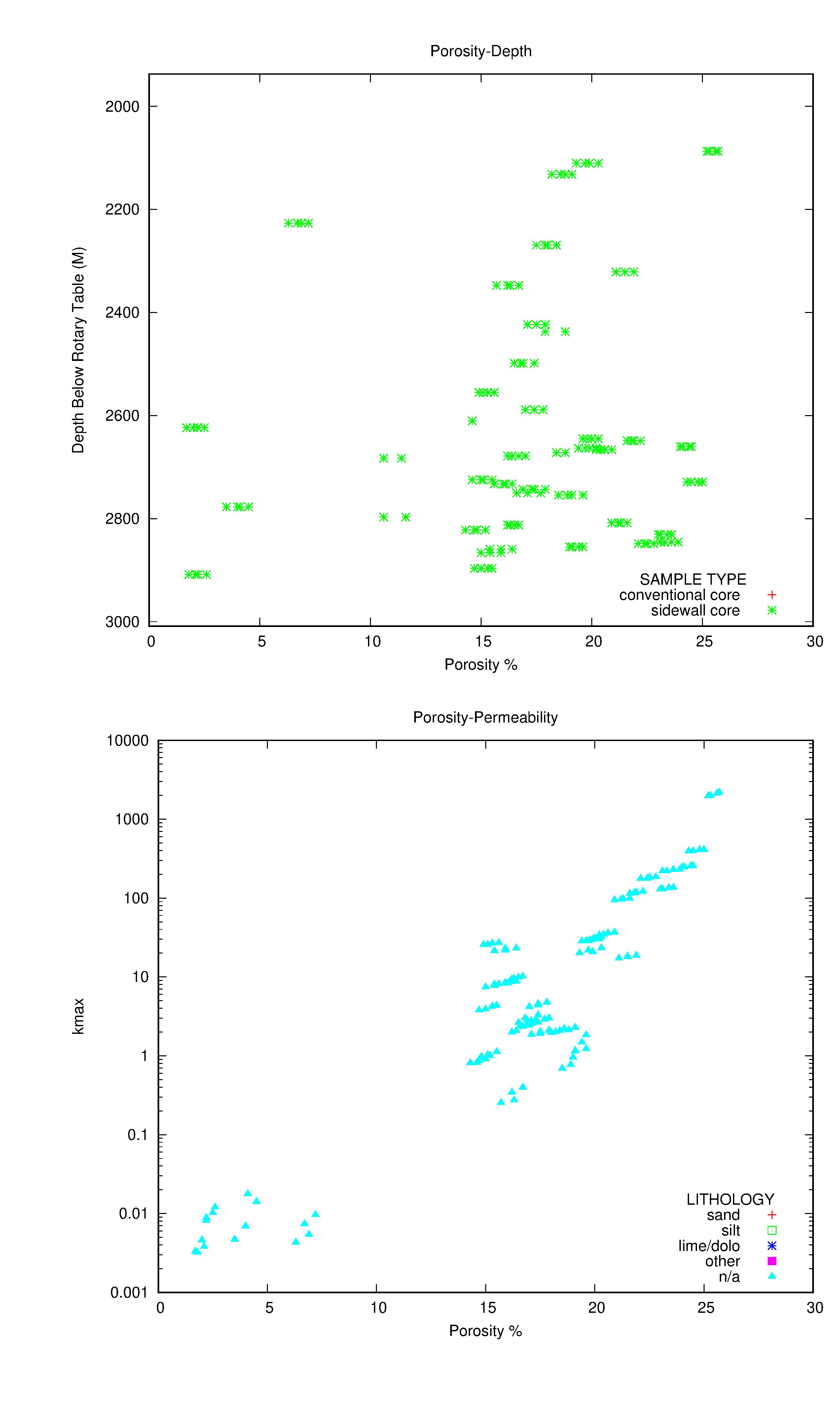

Plots
Download this plot in Postscript format. Click the plot for a large JPEG version.
