Current Project
| GRAND BANKS/NE NFLD SHELF/FLEMISH PASS/ORPHAN BASIN: 45120-020-006 | |
|---|---|
| Company: | MULTI KLIENT INVEST |
| Contractor: | PGS |
| Min Max Latitude: |
45.5 51.5 |
| Min Max Longitude: |
-50.9 -43.6 |
| Year: | 2014 |
| Descriptions: | 21854 KM NORTHEAST NEWFOUNDLAND SLOPE 2-D SEISMIC PROGRAM COMPLETED 01-DEC-2014 |
For more information on this project, please contact:
Canada-Newfoundland and Labrador Offshore Energy Regulator (Data and Information Hub)
240 Waterford Bridge Road, The Tower Corporate Campus - West Campus Hall,
Suite 7100, St. John's, Newfoundland and Labrador, A1E 1E2
Phone: (709) 778-1400
Fax: (709) 778-1473
E-Mail: information@cnlopb.ca
Contact:
Title:
Website: https://home-cnlopb.hub.arcgis.com/
Map and Table Data
number of wells on plot: 488

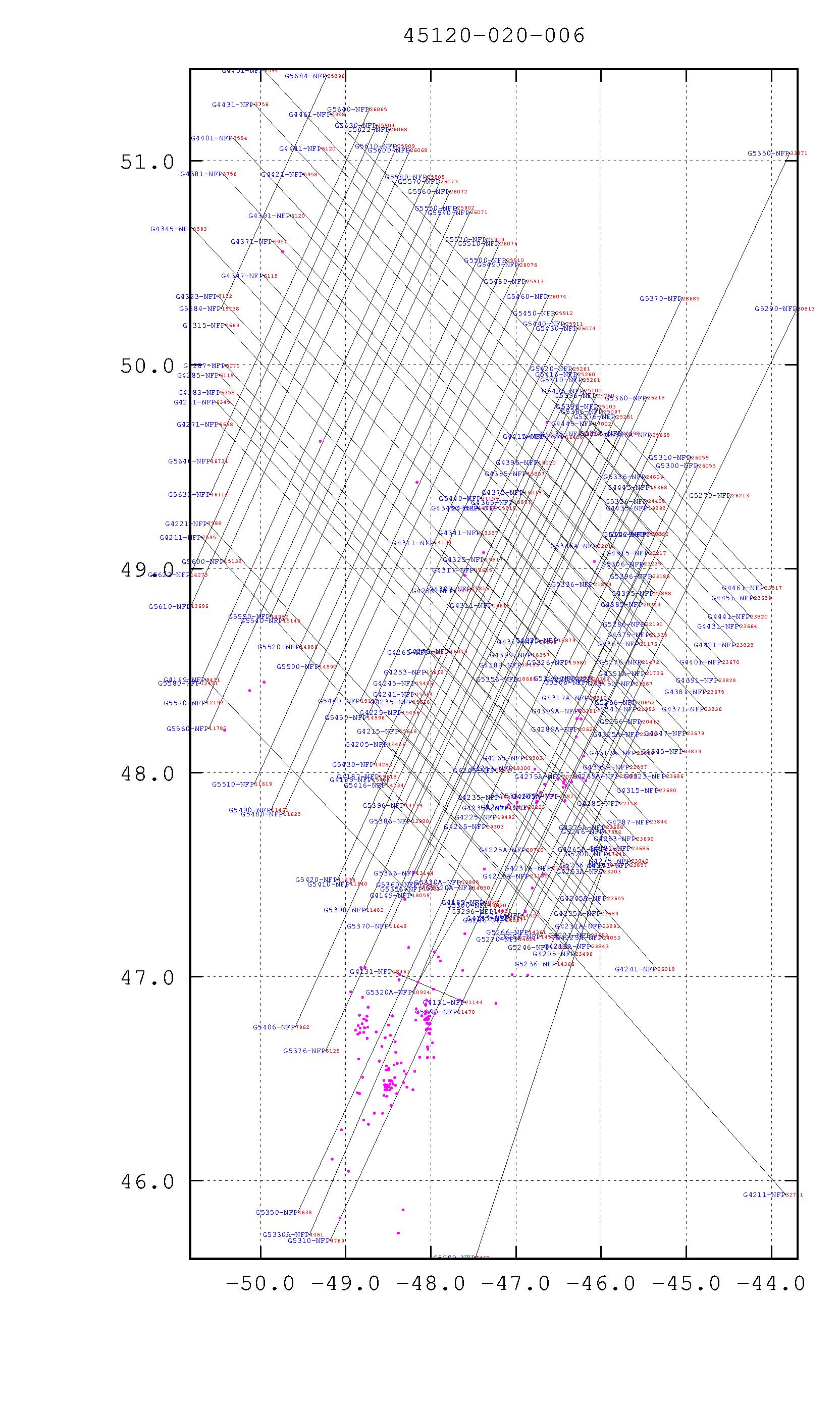

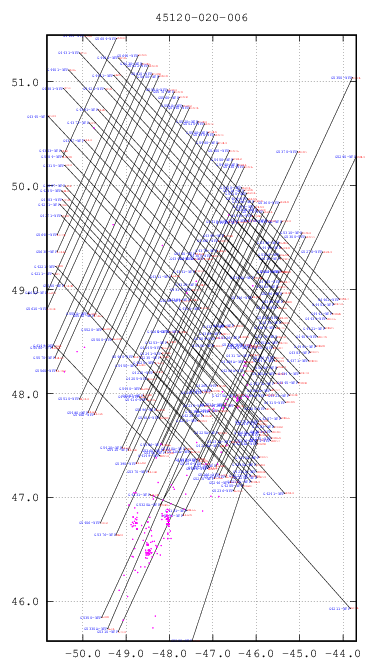

Download this plot in Postscript format. Click the plot for a large JPEG version.
113 records Returned
(All Coordinates | Data Accuracy)Export to Excel | Print Version (Wide Table Format)
| Line | Line Distance (kms) | Start Shotpoint | Lat of Start | Lon of Start | End Shotpoint | Lat of End | Lon of End |
|---|---|---|---|---|---|---|---|
| G4131-NFP | 67.1 | 18461 | 47.03 | -48.45 | 21144 | 46.87 | -47.6 |
| G4149-NFP | 215.8 | 9431 | 48.46 | -50.65 | 18059 | 47.4 | -48.23 |
| G4185-NFP | 119.2 | 15456 | 47.97 | -48.69 | 20221 | 47.37 | -47.38 |
| G4187-NFP | 138.1 | 15618 | 47.98 | -48.61 | 21141 | 47.29 | -47.08 |
| G4205-NFP | 201.1 | 15456 | 48.14 | -48.51 | 23496 | 47.11 | -46.3 |
| G4211-NFP | 628.8 | 7595 | 49.15 | -50.69 | 32711 | 45.93 | -43.83 |
| G4215-NFP | 92.2 | 15618 | 48.2 | -48.37 | 19303 | 47.74 | -47.35 |
| G4215A-NFP | 66.5 | 21185 | 47.5 | -46.84 | 23843 | 47.15 | -46.12 |
| G4221-NFP | 403 | 7588 | 49.22 | -50.62 | 23693 | 47.21 | -46.12 |
| G4225-NFP | 101 | 15456 | 48.3 | -48.34 | 19492 | 47.78 | -47.22 |
| G4225A-NFP | 82.9 | 20740 | 47.62 | -46.88 | 24053 | 47.19 | -45.99 |
| G4231A-NFP | 55 | 21694 | 47.54 | -46.58 | 23891 | 47.25 | -45.99 |
| G4235-NFP | 92.3 | 15618 | 48.35 | -48.22 | 19307 | 47.88 | -47.19 |
| G4235A-NFP | 99.5 | 19712 | 47.83 | -47.08 | 23689 | 47.31 | -46 |
| G4241-NFP | 261 | 15594 | 48.39 | -48.19 | 26019 | 47.04 | -45.34 |
| G4245-NFP | 84.6 | 15456 | 48.44 | -48.18 | 18837 | 48.01 | -47.24 |
| G4245A-NFP | 85.9 | 20223 | 47.83 | -46.86 | 23655 | 47.39 | -45.93 |
| G4253-NFP | 92.1 | 15618 | 48.49 | -48.06 | 19300 | 48.02 | -47.04 |
| G4253A-NFP | 71.5 | 20346 | 47.89 | -46.75 | 23203 | 47.52 | -45.97 |
| G4265-NFP | 101.2 | 15457 | 48.59 | -48.02 | 19503 | 48.07 | -46.9 |
| G4265A-NFP | 49.6 | 20971 | 47.88 | -46.5 | 22952 | 47.63 | -45.96 |
| G4271-NFP | 429.2 | 6698 | 49.71 | -50.49 | 23857 | 47.55 | -45.67 |
| G4275-NFP | 195.8 | 16016 | 48.59 | -47.78 | 23840 | 47.57 | -45.65 |
| G4275A-NFP | 47.8 | 20780 | 47.98 | -46.47 | 22688 | 47.73 | -45.95 |
| G4281-NFP | 433.7 | 6345 | 49.82 | -50.53 | 23686 | 47.63 | -45.64 |
| G4283-NFP | 433.6 | 6358 | 49.87 | -50.47 | 23692 | 47.68 | -45.59 |
| G4285-NFP | 416.2 | 6119 | 49.95 | -50.48 | 22758 | 47.85 | -45.78 |
| G4287-NFP | 442.1 | 6171 | 50 | -50.41 | 23844 | 47.76 | -45.43 |
| G4289-NFP | 71 | 15357 | 48.89 | -47.73 | 18195 | 48.53 | -46.94 |
| G4289A-NFP | 44.2 | 20624 | 48.22 | -46.27 | 22388 | 47.98 | -45.79 |
| G4309-NFP | 63.6 | 15816 | 48.9 | -47.52 | 18357 | 48.58 | -46.82 |
| G4309A-NFP | 54.2 | 20391 | 48.3 | -46.27 | 22557 | 48.03 | -45.67 |
| G4311-NFP | 60.6 | 14194 | 49.13 | -47.96 | 16616 | 48.82 | -47.28 |
| G4315-NFP | 450.6 | 5669 | 50.2 | -50.41 | 23680 | 47.91 | -45.32 |
| G4317-NFP | 68.6 | 15655 | 48.99 | -47.49 | 18395 | 48.64 | -46.73 |
| G4317A-NFP | 51.1 | 20510 | 48.37 | -46.14 | 22550 | 48.1 | -45.59 |
| G4323-NFP | 464.7 | 5112 | 50.34 | -50.5 | 23686 | 47.98 | -45.24 |
| G4325-NFP | 76.6 | 15817 | 49.05 | -47.37 | 18879 | 48.65 | -46.51 |
| G4325A-NFP | 51.1 | 20348 | 48.46 | -46.11 | 22388 | 48.19 | -45.55 |
| G4341-NFP | 166.1 | 15357 | 49.18 | -47.41 | 21993 | 48.31 | -45.57 |
| G4345-NFP | 506.5 | 3593 | 50.67 | -50.8 | 23839 | 48.1 | -45.03 |
| G4345C-NFP | 165.7 | 14967 | 49.3 | -47.44 | 21587 | 48.44 | -45.6 |
| G4347-NFP | 439.3 | 6119 | 50.44 | -49.97 | 23679 | 48.2 | -44.99 |
| G4351A-NFP | 155.6 | 15519 | 49.3 | -47.21 | 21736 | 48.49 | -45.48 |
| G4365-NFP | 133.1 | 15857 | 49.33 | -47.03 | 21176 | 48.63 | -45.55 |
| G4371-NFP | 447.4 | 5957 | 50.6 | -49.86 | 23836 | 48.31 | -44.79 |
| G4375-NFP | 133.1 | 16019 | 49.37 | -46.91 | 21335 | 48.68 | -45.43 |
| G4381-NFP | 498.3 | 3756 | 50.94 | -50.44 | 23675 | 48.4 | -44.76 |
| G4385-NFP | 122.3 | 15857 | 49.47 | -46.87 | 20744 | 48.83 | -45.51 |
| G4391-NFP | 443.2 | 6120 | 50.73 | -49.65 | 23828 | 48.45 | -44.62 |
| G4395-NFP | 122.1 | 16020 | 49.52 | -46.74 | 20898 | 48.88 | -45.38 |
| G4401-NFP | 502.3 | 3594 | 51.11 | -50.33 | 23670 | 48.54 | -44.58 |
| G4415-NFP | 109.1 | 15858 | 49.65 | -46.66 | 20217 | 49.08 | -45.44 |
| G4421-NFP | 447.1 | 5958 | 50.93 | -49.5 | 23825 | 48.63 | -44.42 |
| G4425-NFP | 90.7 | 16408 | 49.65 | -46.42 | 20032 | 49.17 | -45.41 |
| G4431-NFP | 498.2 | 3756 | 51.28 | -50.08 | 23664 | 48.72 | -44.38 |
| G4435-NFP | 69 | 16839 | 49.66 | -46.22 | 19595 | 49.3 | -45.45 |
| G4441-NFP | 443 | 6120 | 51.06 | -49.29 | 23820 | 48.77 | -44.25 |
| G4445-NFP | 59.2 | 17002 | 49.71 | -46.09 | 19368 | 49.4 | -45.43 |
| G4451-NFP | 502.1 | 3594 | 51.44 | -49.96 | 23659 | 48.86 | -44.21 |
| G4461-NFP | 447 | 5958 | 51.23 | -49.17 | 23817 | 48.91 | -44.08 |
| G5200-NFP | 250.6 | 7430 | 45.62 | -47.48 | 17441 | 47.6 | -45.92 |
| G5236-NFP | 67.8 | 14366 | 47.06 | -46.52 | 17076 | 47.55 | -45.98 |
| G5246-NFP | 79 | 14529 | 47.15 | -46.6 | 17684 | 47.71 | -45.97 |
| G5256-NFP | 147.4 | 14526 | 47.2 | -46.71 | 20413 | 48.25 | -45.52 |
| G5266-NFP | 157.5 | 14361 | 47.22 | -46.85 | 20652 | 48.35 | -45.58 |
| G5270-NFP | 305.5 | 14024 | 47.18 | -46.97 | 26213 | 49.36 | -44.47 |
| G5276-NFP | 174 | 14520 | 47.3 | -46.93 | 21472 | 48.54 | -45.52 |
| G5286-NFP | 202.6 | 14097 | 47.28 | -47.12 | 22190 | 48.73 | -45.49 |
| G5290-NFP | 484.6 | 11470 | 46.83 | -47.69 | 30813 | 50.28 | -43.7 |
| G5296-NFP | 229.5 | 14021 | 47.32 | -47.26 | 23186 | 48.96 | -45.4 |
| G5300-NFP | 301.4 | 14020 | 47.35 | -47.32 | 26055 | 49.51 | -44.86 |
| G5306-NFP | 81.5 | 19981 | 48.45 | -46.17 | 23235 | 49.03 | -45.5 |
| G5310-NFP | 534 | 4769 | 45.71 | -49.18 | 26059 | 49.55 | -44.94 |
| G5316-NFP | 98.9 | 19838 | 48.47 | -46.3 | 23788 | 49.17 | -45.48 |
| G5320A-NFP | 78.2 | 10924 | 46.93 | -48.22 | 14050 | 47.44 | -47.51 |
| G5326-NFP | 110.9 | 19980 | 48.54 | -46.38 | 24408 | 49.33 | -45.46 |
| G5330A-NFP | 235.6 | 4461 | 45.74 | -49.42 | 13885 | 47.46 | -47.65 |
| G5336-NFP | 73.9 | 21859 | 48.93 | -46.09 | 24809 | 49.45 | -45.47 |
| G5346A-NFP | 76.6 | 22611 | 49.11 | -46.05 | 25669 | 49.66 | -45.4 |
| G5350-NFP | 719.2 | 4638 | 45.85 | -49.56 | 33371 | 51.04 | -43.78 |
| G5356-NFP | 142.2 | 12983 | 47.43 | -48.1 | 18666 | 48.46 | -46.97 |
| G5360-NFP | 331.4 | 12982 | 47.45 | -48.15 | 26218 | 49.84 | -45.46 |
| G5366-NFP | 299.1 | 13144 | 47.51 | -48.17 | 25098 | 49.66 | -45.75 |
| G5370-NFP | 426.3 | 11648 | 47.25 | -48.49 | 28685 | 50.33 | -45.05 |
| G5376-NFP | 428.5 | 8129 | 46.64 | -49.24 | 25261 | 49.75 | -45.83 |
| G5386-NFP | 278.1 | 13980 | 47.76 | -48.23 | 25097 | 49.77 | -45.98 |
| G5390-NFP | 340.8 | 11482 | 47.33 | -48.76 | 25103 | 49.8 | -46.03 |
| G5396-NFP | 278.2 | 14139 | 47.84 | -48.31 | 25260 | 49.85 | -46.05 |
| G5406-NFP | 428.6 | 7962 | 46.75 | -49.59 | 25100 | 49.87 | -46.2 |
| G5410-NFP | 340.8 | 11640 | 47.46 | -48.95 | 25261 | 49.93 | -46.22 |
| G5416-NFP | 278.4 | 14134 | 47.94 | -48.53 | 25260 | 49.95 | -46.28 |
| G5420-NFP | 344.8 | 11476 | 47.48 | -49.1 | 25261 | 49.98 | -46.33 |
| G5430-NFP | 294.9 | 14283 | 48.04 | -48.67 | 26074 | 50.18 | -46.28 |
| G5440-NFP | 118.9 | 21158 | 49.35 | -47.41 | 25911 | 50.2 | -46.42 |
| G5450-NFP | 273.1 | 14996 | 48.27 | -48.75 | 25912 | 50.25 | -46.54 |
| G5460-NFP | 273.1 | 15157 | 48.35 | -48.83 | 26074 | 50.34 | -46.62 |
| G5480-NFP | 357.3 | 11625 | 47.8 | -49.73 | 25913 | 50.41 | -46.88 |
| G5490-NFP | 365.4 | 11461 | 47.82 | -49.88 | 26076 | 50.49 | -46.96 |
| G5500-NFP | 273.1 | 14990 | 48.52 | -49.31 | 25910 | 50.51 | -47.11 |
| G5510-NFP | 361.5 | 11619 | 47.95 | -50.07 | 26076 | 50.59 | -47.19 |
| G5520-NFP | 273.1 | 14986 | 48.62 | -49.54 | 25909 | 50.62 | -47.34 |
| G5540-NFP | 273.2 | 15146 | 48.75 | -49.74 | 26071 | 50.75 | -47.54 |
| G5550-NFP | 273 | 14982 | 48.77 | -49.89 | 25902 | 50.77 | -47.7 |
| G5560-NFP | 357.2 | 11782 | 48.22 | -50.61 | 26072 | 50.85 | -47.78 |
| G5570-NFP | 346.9 | 12197 | 48.34 | -50.64 | 26073 | 50.9 | -47.89 |
| G5580-NFP | 336.5 | 12451 | 48.44 | -50.71 | 25909 | 50.92 | -48.04 |
| G5600-NFP | 273.2 | 15138 | 49.04 | -50.43 | 26068 | 51.05 | -48.25 |
| G5610-NFP | 305.3 | 13696 | 48.82 | -50.82 | 25909 | 51.07 | -48.4 |
| G5622-NFP | 294.9 | 14273 | 48.97 | -50.82 | 26068 | 51.15 | -48.48 |
| G5630-NFP | 244.7 | 16114 | 49.36 | -50.59 | 25904 | 51.17 | -48.64 |
| G5640-NFP | 233.3 | 16731 | 49.53 | -50.59 | 26065 | 51.25 | -48.72 |
| G5684-NFP | 153.9 | 19738 | 50.28 | -50.46 | 25896 | 51.42 | -49.22 |
