Current Project
| BAFFIN BAY/W GREENLAND SHELF: BB-09 | |
|---|---|
| Company: | TGS-NOPEC |
| Contractor: | TGS-NOPEC |
| Min Max Latitude: |
70.2 75.8 |
| Min Max Longitude: |
-72.7 -54.3 |
| Year: | 2009 |
| Descriptions: | 14945 KMS OF 2-D SEISMICS (AN INFILL OF PREVIOUS TGS SURVEYS) COMPLETED 2009 |
For more information on this project, please contact:
TGS
Suite 720 335 8th Avenue SW
Calgary, Alberta, Canada
Phone: (403) 781 1710
Fax: (403) 781 1700
E-mail:
Contact:
Title:
Website: http://www.tgs.com
Map and Table Data
number of wells on plot: 5

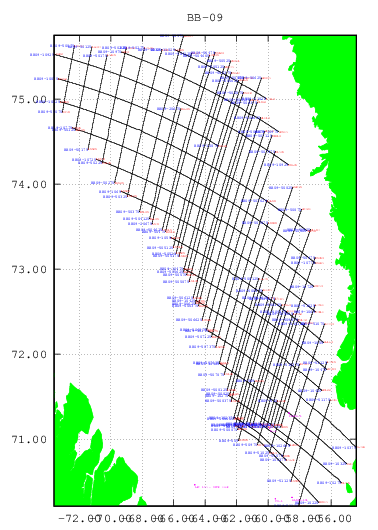

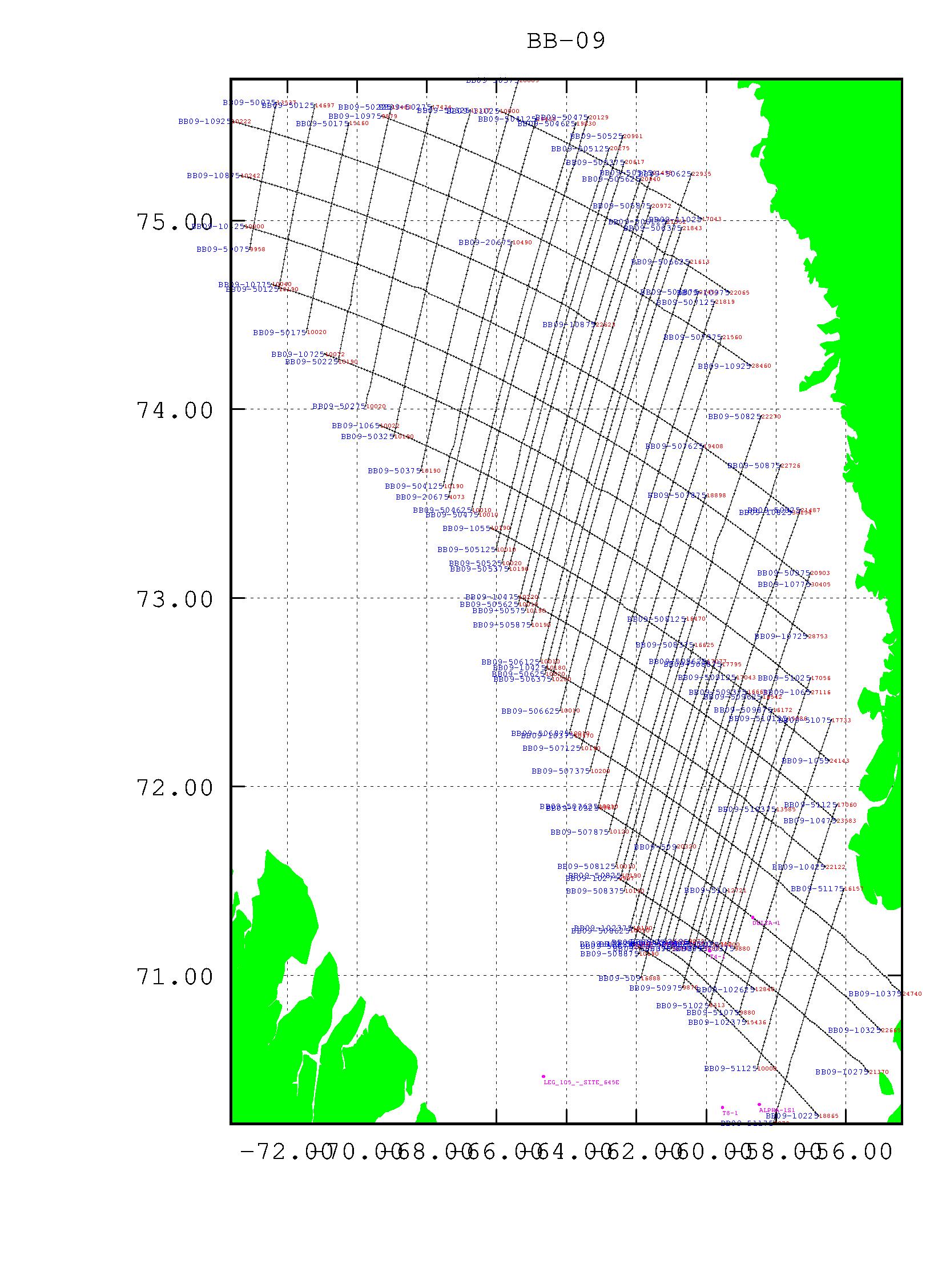

Download this plot in Postscript format. Click the plot for a large JPEG version.
63 records Returned
(All Coordinates | Data Accuracy)Export to Excel | Print Version (Wide Table Format)
| Line | Line Distance (kms) | Start Shotpoint | Lat of Start | Lon of Start | End Shotpoint | Lat of End | Lon of End |
|---|---|---|---|---|---|---|---|
| BB09-10225 | 221.04 | 10010 | 71.17 | -62.1 | 18865 | 70.26 | -56.78 |
| BB09-102375 | 130.9 | 10190 | 71.25 | -62.11 | 15436 | 70.75 | -58.85 |
| BB09-102625 | 74.02 | 9879 | 71.18 | -60.5 | 12840 | 70.93 | -58.61 |
| BB09-10275 | 284.32 | 9997 | 71.52 | -62.51 | 21370 | 70.49 | -55.34 |
| BB09-10325 | 317.45 | 9967 | 71.89 | -63.07 | 22665 | 70.71 | -54.99 |
| BB09-10375 | 364.25 | 10170 | 72.27 | -63.79 | 24740 | 70.91 | -54.39 |
| BB09-10425 | 298.56 | 10180 | 72.63 | -64.59 | 22122 | 71.58 | -56.59 |
| BB09-10475 | 334.07 | 10220 | 73.01 | -65.37 | 23583 | 71.82 | -56.27 |
| BB09-1055 | 348.82 | 10190 | 73.37 | -66.18 | 24143 | 72.14 | -56.48 |
| BB09-1065 | 427.35 | 10022 | 73.92 | -69.35 | 27116 | 72.5 | -57.01 |
| BB09-10725 | 467.02 | 10072 | 74.29 | -70.93 | 28753 | 72.8 | -57.09 |
| BB09-10775 | 509.12 | 10040 | 74.66 | -72.45 | 30405 | 73.07 | -57.01 |
| BB09-10825 | 503.85 | 10000 | 74.97 | -73.23 | 30154 | 73.45 | -57.54 |
| BB09-10875 | 309.48 | 10242 | 75.24 | -73.34 | 22623 | 74.45 | -63.16 |
| BB09-10925 | 455.9 | 10222 | 75.53 | -73.61 | 28460 | 74.23 | -58.71 |
| BB09-10975 | 304.65 | 9879 | 75.55 | -69.3 | 22065 | 74.62 | -59.33 |
| BB09-11025 | 176.08 | 10000 | 75.58 | -65.92 | 17043 | 75.01 | -60.13 |
| BB09-20675 | 160.42 | 4073 | 73.54 | -67.38 | 10490 | 74.89 | -65.56 |
| BB09-50075 | 89.47 | 9958 | 74.85 | -73.08 | 13537 | 75.63 | -72.32 |
| BB09-50125 | 112.67 | 10190 | 74.64 | -72.24 | 14697 | 75.61 | -71.21 |
| BB09-50175 | 128.5 | 10020 | 74.41 | -71.45 | 15160 | 75.52 | -70.24 |
| BB09-50225 | 156.82 | 10190 | 74.25 | -70.54 | 16463 | 75.6 | -69.02 |
| BB09-50275 | 185.35 | 10020 | 74.02 | -69.75 | 17434 | 75.6 | -67.86 |
| BB09-50325 | 203.17 | 10190 | 73.86 | -68.95 | 18317 | 75.58 | -66.76 |
| BB09-50375 | 245.38 | 10190 | 73.68 | -68.17 | 20005 | 75.75 | -65.36 |
| BB09-504125 | 231.13 | 10190 | 73.59 | -67.53 | 19435 | 75.54 | -64.87 |
| BB09-504625 | 245.5 | 10010 | 73.47 | -66.72 | 19830 | 75.52 | -63.73 |
| BB09-50475 | 252.97 | 10010 | 73.44 | -66.52 | 20129 | 75.55 | -63.37 |
| BB09-505125 | 256.63 | 10010 | 73.26 | -66.02 | 20275 | 75.38 | -62.77 |
| BB09-50525 | 273.28 | 10020 | 73.19 | -65.85 | 20951 | 75.45 | -62.38 |
| BB09-505375 | 260.68 | 10190 | 73.16 | -65.65 | 20617 | 75.31 | -62.34 |
| BB09-505625 | 273.25 | 10010 | 72.97 | -65.38 | 20940 | 75.22 | -61.88 |
| BB09-50575 | 281.7 | 10190 | 72.94 | -65.18 | 21458 | 75.25 | -61.54 |
| BB09-505875 | 269.55 | 10190 | 72.86 | -65.01 | 20972 | 75.08 | -61.57 |
| BB09-506125 | 283.55 | 10010 | 72.66 | -64.76 | 21352 | 75 | -61.14 |
| BB09-50625 | 322.88 | 10020 | 72.6 | -64.62 | 22935 | 75.25 | -60.42 |
| BB09-506375 | 291.08 | 10200 | 72.57 | -64.42 | 21843 | 74.96 | -60.69 |
| BB09-506625 | 290.08 | 10010 | 72.4 | -64.19 | 21613 | 74.78 | -60.47 |
| BB09-506875 | 286.08 | 10010 | 72.29 | -63.91 | 21453 | 74.62 | -60.21 |
| BB09-507125 | 290.72 | 10190 | 72.21 | -63.59 | 21819 | 74.57 | -59.76 |
| BB09-507375 | 284 | 10200 | 72.09 | -63.33 | 21560 | 74.39 | -59.54 |
| BB09-507625 | 234.95 | 10010 | 71.9 | -63.09 | 19408 | 73.81 | -60.07 |
| BB09-507875 | 219.45 | 10120 | 71.76 | -62.78 | 18898 | 73.55 | -60 |
| BB09-508125 | 161.5 | 10010 | 71.58 | -62.59 | 16470 | 72.89 | -60.59 |
| BB09-50825 | 302 | 10190 | 71.53 | -62.44 | 22270 | 73.96 | -58.43 |
| BB09-508375 | 160.87 | 10190 | 71.45 | -62.35 | 16625 | 72.75 | -60.35 |
| BB09-508625 | 176.67 | 10010 | 71.24 | -62.19 | 17077 | 72.67 | -59.98 |
| BB09-50875 | 317.65 | 10020 | 71.16 | -62.09 | 22726 | 73.7 | -57.87 |
| BB09-508875 | 190.13 | 10190 | 71.12 | -61.93 | 17795 | 72.65 | -59.55 |
| BB09-509 | 85.8 | 16888 | 70.99 | -61.87 | 20320 | 71.68 | -60.85 |
| BB09-509125 | 176.07 | 10000 | 71.17 | -61.4 | 17043 | 72.58 | -59.14 |
| BB09-50925 | 287.17 | 10000 | 71.18 | -61.18 | 21487 | 73.47 | -57.3 |
| BB09-509375 | 169.62 | 9879 | 71.14 | -61 | 16664 | 72.5 | -58.83 |
| BB09-509625 | 163.48 | 10003 | 71.17 | -60.51 | 16542 | 72.48 | -58.4 |
| BB09-50975 | 275.59 | 9879 | 70.94 | -60.68 | 20903 | 73.13 | -57.01 |
| BB09-509875 | 157.3 | 9880 | 71.14 | -60.09 | 16172 | 72.41 | -58.1 |
| BB09-510 | 35.22 | 11312 | 71.17 | -59.84 | 12721 | 71.45 | -59.41 |
| BB09-510125 | 149.66 | 10000 | 71.17 | -59.61 | 15986 | 72.36 | -57.68 |
| BB09-51025 | 218.57 | 8313 | 70.84 | -59.91 | 17056 | 72.58 | -57.01 |
| BB09-510375 | 92.63 | 9880 | 71.14 | -59.2 | 13585 | 71.88 | -58 |
| BB09-51075 | 196.33 | 9880 | 70.81 | -59.05 | 17733 | 72.35 | -56.41 |
| BB09-51125 | 176.5 | 10000 | 70.51 | -58.54 | 17060 | 71.91 | -56.25 |
| BB09-51175 | 156.95 | 9879 | 70.22 | -58.07 | 16157 | 71.46 | -56.05 |
