Current Project
| DAVIS STRAIT/W GREENLAND SHELF: BLF-03 | |
|---|---|
| Company: | TGS-NOPEC |
| Contractor: | TGS-NOPEC |
| Min Max Latitude: |
62.9 64.9 |
| Min Max Longitude: |
-58.1 -56 |
| Year: | 2003 |
| Descriptions: | 2016 KM NON-EXCLUSIVE 2-D SEISMIC SURVEY (BASIN OF LADY FRANKLIN 2003) |
For more information on this project, please contact:
TGS
Suite 720 335 8th Avenue SW
Calgary, Alberta, Canada
Phone: (403) 781 1710
Fax: (403) 781 1700
E-mail:
Contact:
Title:
Website: http://www.tgs.com

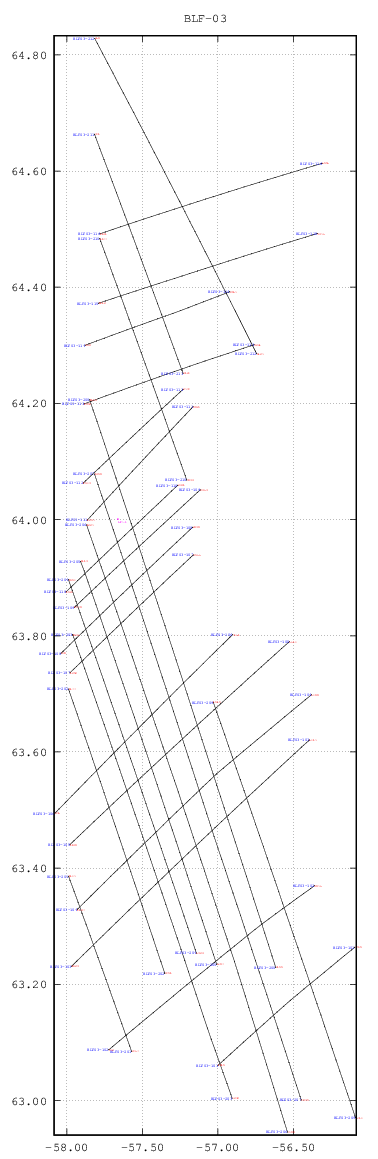

Map and Table Data
number of wells on plot: 1
Download this plot in Postscript format. Click the plot for a large JPEG version.
28 records Returned
(All Coordinates | Data Accuracy)Export to Excel | Print Version (Wide Table Format)
| Line | Line Distance (kms) | Start Shotpoint | Lat of Start | Lon of Start | End Shotpoint | Lat of End | Lon of End |
|---|---|---|---|---|---|---|---|
| BLF03-101 | 51.02 | 1010 | 63.06 | -57 | 3050 | 63.26 | -56.09 |
| BLF03-102 | 75.3 | 842 | 63.09 | -57.72 | 3854 | 63.37 | -56.36 |
| BLF03-103 | 89.8 | 1023 | 63.23 | -57.97 | 4615 | 63.62 | -56.39 |
| BLF03-104 | 87.52 | 1187 | 63.33 | -57.93 | 4688 | 63.7 | -56.38 |
| BLF03-105 | 81.95 | 1138 | 63.44 | -57.98 | 4416 | 63.79 | -56.53 |
| BLF03-106 | 67.67 | 934 | 63.49 | -58.08 | 3641 | 63.8 | -56.9 |
| BLF03-107 | 46.05 | 1202 | 63.74 | -57.98 | 3044 | 63.94 | -57.16 |
| BLF03-108 | 49.25 | 968 | 63.77 | -58.04 | 2938 | 63.99 | -57.17 |
| BLF03-109 | 46.62 | 1078 | 63.85 | -57.95 | 2943 | 64.05 | -57.12 |
| BLF03-110 | 41.65 | 1025 | 63.88 | -58.01 | 2691 | 64.06 | -57.27 |
| BLF03-111 | 40.5 | 1205 | 64 | -57.86 | 2825 | 64.19 | -57.16 |
| BLF03-112 | 36.87 | 1063 | 64.06 | -57.89 | 2537 | 64.22 | -57.23 |
| BLF03-113 | 55.81 | 1009 | 64.2 | -57.89 | 3241 | 64.3 | -56.76 |
| BLF03-114 | 47.43 | 948 | 64.3 | -57.88 | 2845 | 64.39 | -56.92 |
| BLF03-115 | 71.07 | 1112 | 64.37 | -57.79 | 3954 | 64.49 | -56.34 |
| BLF03-116 | 71.83 | 1131 | 64.49 | -57.78 | 4004 | 64.61 | -56.31 |
| BLF03-201 | 39.55 | 1165 | 63.39 | -57.99 | 2747 | 63.08 | -57.57 |
| BLF03-202 | 63.1 | 1177 | 63.71 | -57.99 | 3701 | 63.22 | -57.35 |
| BLF03-203 | 103.45 | 1094 | 63.8 | -57.96 | 5232 | 63 | -56.91 |
| BLF03-204 | 83.08 | 1006 | 63.9 | -57.99 | 4329 | 63.25 | -57.14 |
| BLF03-205 | 89.35 | 1113 | 63.93 | -57.91 | 4687 | 63.23 | -57.01 |
| BLF03-206 | 134.08 | 1225 | 63.99 | -57.87 | 6588 | 62.95 | -56.54 |
| BLF03-207 | 138.05 | 1308 | 64.08 | -57.82 | 6830 | 63 | -56.45 |
| BLF03-208 | 124.76 | 1110 | 64.21 | -57.85 | 6100 | 63.23 | -56.62 |
| BLF03-209 | 92.66 | 1010 | 63.69 | -57.03 | 4716 | 62.97 | -56.09 |
| BLF03-210 | 54.05 | 1177 | 64.48 | -57.78 | 3339 | 64.07 | -57.21 |
| BLF03-211 | 53.88 | 971 | 64.66 | -57.82 | 3126 | 64.25 | -57.23 |
| BLF03-212 | 79.43 | 948 | 64.83 | -57.82 | 4125 | 64.29 | -56.74 |
