Current Project
| DAVIS STRAIT/BAFFIN BAY/W GREENLAND SHELF: DW02 | |
|---|---|
| Company: | TGS-NOPEC |
| Contractor: | TGS-NOPEC |
| Min Max Latitude: |
68.5 72.8 |
| Min Max Longitude: |
-60.9 -54.4 |
| Year: | 2002 |
| Descriptions: | 2235 KM NON-EXCLUSIVE 2-D SEISMIC SURVEY (DISKO WEST 2002) |
For more information on this project, please contact:
TGS
Suite 720 335 8th Avenue SW
Calgary, Alberta, Canada
Phone: (403) 781 1710
Fax: (403) 781 1700
E-mail:
Contact:
Title:
Website: http://www.tgs.com
Map and Table Data
number of wells on plot: 5

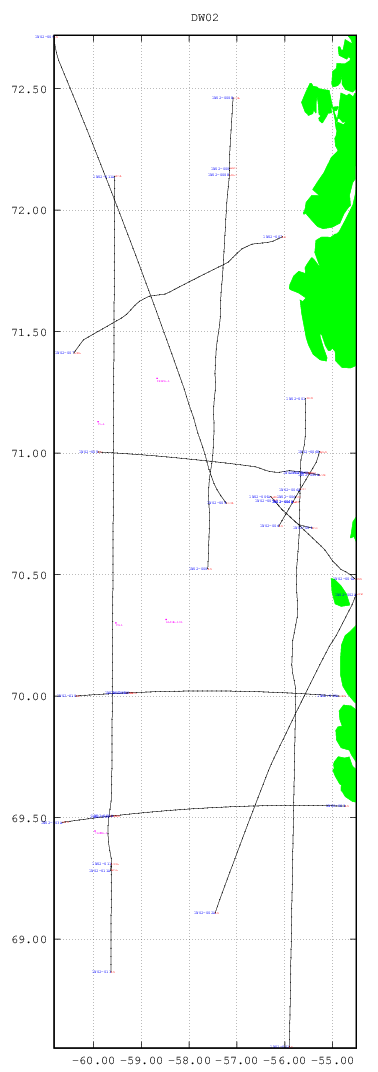

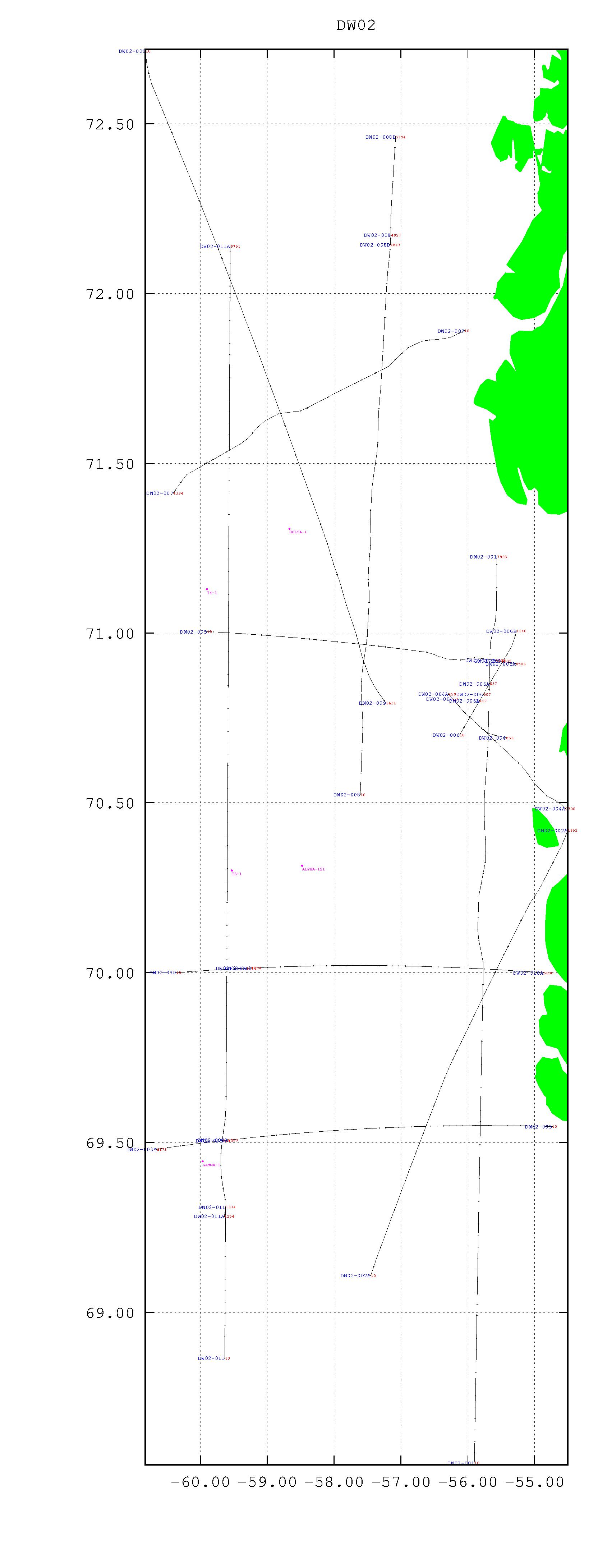

Download this plot in Postscript format. Click the plot for a large JPEG version.
19 records Returned
(All Coordinates | Data Accuracy)Export to Excel | Print Version (Wide Table Format)
| Line | Line Distance (kms) | Start Shotpoint | Lat of Start | Lon of Start | End Shotpoint | Lat of End | Lon of End |
|---|---|---|---|---|---|---|---|
| DW02-001 | 297.97 | 10 | 68.56 | -55.9 | 7968 | 71.22 | -55.56 |
| DW02-002A | 185.17 | 10 | 69.11 | -57.45 | 4952 | 70.42 | -54.51 |
| DW02-003 | 192.44 | 10 | 69.55 | -54.74 | 5140 | 69.5 | -59.67 |
| DW02-003A | 41.75 | 5060 | 69.51 | -59.59 | 6173 | 69.48 | -60.66 |
| DW02-004 | 31.84 | 10 | 70.81 | -56.22 | 856 | 70.69 | -55.43 |
| DW02-004A | 74.82 | 2300 | 70.48 | -54.54 | 4296 | 70.82 | -56.29 |
| DW02-005 | 160.51 | 10 | 71 | -59.9 | 4289 | 70.92 | -55.5 |
| DW02-005A | 11.14 | 4209 | 70.92 | -55.58 | 4506 | 70.91 | -55.28 |
| DW02-006 | 18.64 | 10 | 70.7 | -56.12 | 507 | 70.82 | -55.77 |
| DW02-006A | 7.88 | 427 | 70.8 | -55.83 | 637 | 70.85 | -55.68 |
| DW02-006B | 30.57 | 427 | 70.8 | -55.83 | 1240 | 71.01 | -55.27 |
| DW02-007 | 162.17 | 10 | 71.89 | -56.05 | 4334 | 71.41 | -60.41 |
| DW02-008 | 184.6 | 10 | 70.52 | -57.61 | 4927 | 72.17 | -57.15 |
| DW02-008B | 35.53 | 4847 | 72.14 | -57.16 | 5794 | 72.46 | -57.08 |
| DW02-009 | 248.27 | 10 | 72.71 | -60.82 | 6631 | 70.79 | -57.22 |
| DW02-010 | 42.9 | 10 | 70 | -60.36 | 1154 | 70.01 | -59.24 |
| DW02-010A | 169.76 | 1074 | 70.01 | -59.32 | 5600 | 70 | -54.87 |
| DW02-011 | 49.66 | 10 | 68.86 | -59.64 | 1334 | 69.31 | -59.63 |
| DW02-011A | 318.77 | 1254 | 69.28 | -59.64 | 9751 | 72.14 | -59.56 |
