| DAVIS STRAIT/BAFFIN BAY/W GREENLAND SHELF: DW05 | |
|---|---|
| Company: | TGS-NOPEC |
| Contractor: | TGS-NOPEC |
| Min Max Latitude: |
66.6 71.1 |
| Min Max Longitude: |
-62.1 -54.3 |
| Year: | 2005 |
| Descriptions: | 3215 KM NON-EXCLUSIVE 2-D SEISMIC SURVEY (DISKO WEST 2005) |
For more information on this project, please contact:
TGS
Suite 720 335 8th Avenue SW
Calgary, Alberta, Canada
Phone: (403) 781 1710
Fax: (403) 781 1700
E-mail:
Contact:
Title:
Website: http://www.tgs.com
Map and Table Data
number of wells on plot: 5

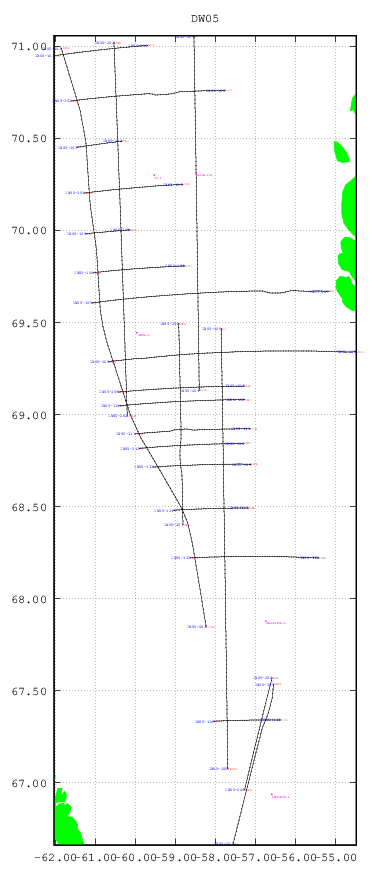

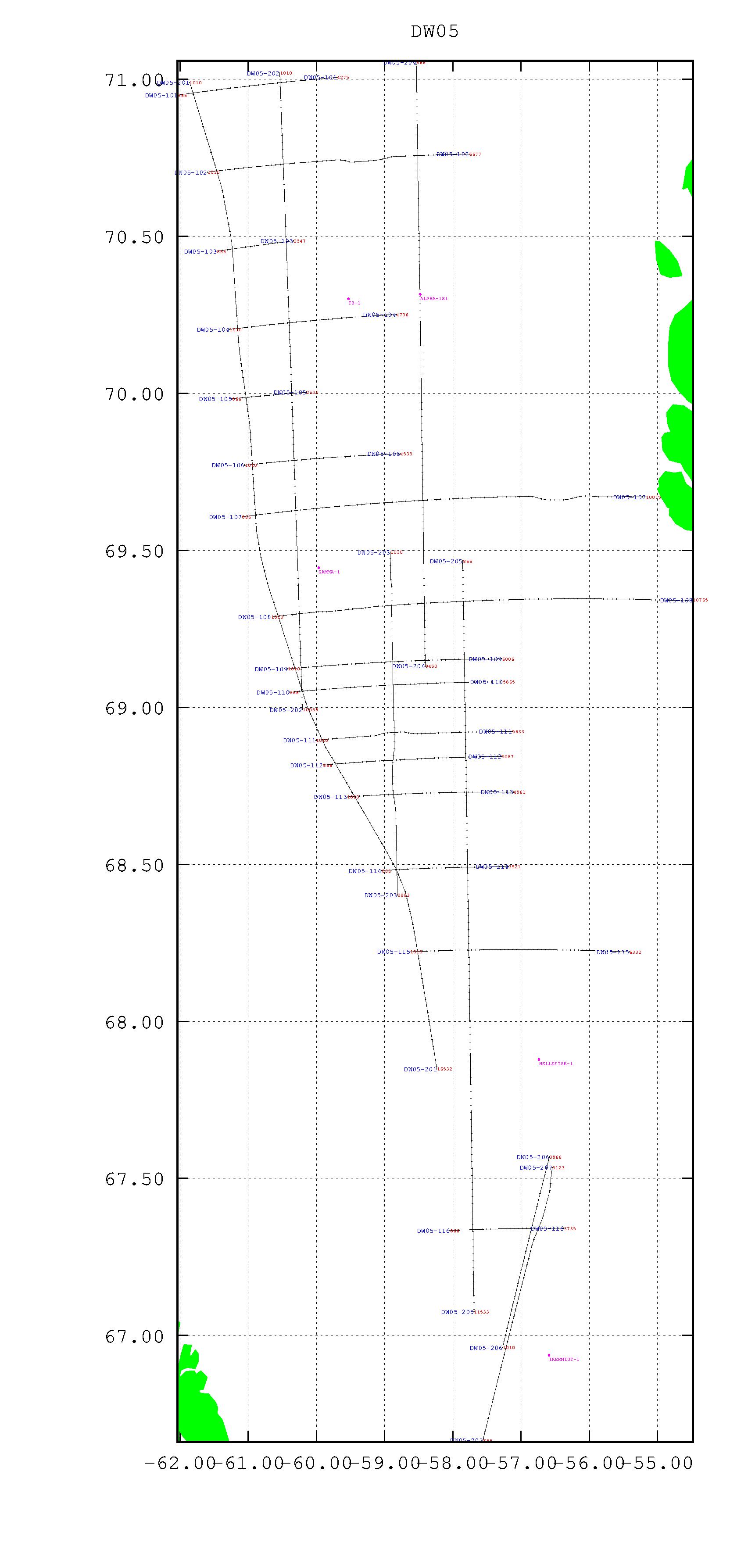

Download this plot in Postscript format. Click the plot for a large JPEG version.
23 records Returned
(All Coordinates | Data Accuracy)Export to Excel | Print Version (Wide Table Format)
| Line | Line Distance (kms) | Start Shotpoint | Lat of Start | Lon of Start | End Shotpoint | Lat of End | Lon of End |
|---|---|---|---|---|---|---|---|
| DW05-101 | 85.23 | 866 | 70.95 | -62.03 | 4275 | 71.01 | -59.7 |
| DW05-102 | 141.67 | 1010 | 70.7 | -61.6 | 6677 | 70.76 | -57.76 |
| DW05-103 | 42.03 | 866 | 70.45 | -61.46 | 2547 | 70.49 | -60.34 |
| DW05-104 | 92.4 | 1010 | 70.2 | -61.27 | 4706 | 70.25 | -58.83 |
| DW05-105 | 41.72 | 866 | 69.98 | -61.24 | 2535 | 70 | -60.15 |
| DW05-106 | 88.13 | 1010 | 69.77 | -61.05 | 4535 | 69.81 | -58.77 |
| DW05-107 | 230.21 | 866 | 69.61 | -61.09 | 10075 | 69.67 | -55.17 |
| DW05-108 | 243.87 | 1010 | 69.29 | -60.66 | 10765 | 69.35 | -54.48 |
| DW05-109 | 124.9 | 1010 | 69.12 | -60.42 | 6006 | 69.15 | -57.28 |
| DW05-110 | 124.97 | 866 | 69.05 | -60.4 | 5865 | 69.08 | -57.26 |
| DW05-111 | 115.58 | 1010 | 68.9 | -60.01 | 5633 | 68.92 | -57.13 |
| DW05-112 | 105.52 | 866 | 68.82 | -59.9 | 5087 | 68.84 | -57.29 |
| DW05-113 | 98.78 | 1010 | 68.71 | -59.55 | 4961 | 68.73 | -57.11 |
| DW05-114 | 76.38 | 866 | 68.48 | -59.05 | 3921 | 68.49 | -57.18 |
| DW05-115 | 133.03 | 1010 | 68.22 | -58.63 | 6332 | 68.23 | -55.41 |
| DW05-116 | 71.73 | 866 | 67.33 | -58.04 | 3735 | 67.34 | -56.38 |
| DW05-201 | 377.98 | 1010 | 70.99 | -61.86 | 16532 | 67.85 | -58.23 |
| DW05-202 | 226.47 | 1010 | 71.02 | -60.54 | 10069 | 68.99 | -60.21 |
| DW05-203 | 121.83 | 1010 | 69.49 | -58.92 | 5883 | 68.4 | -58.81 |
| DW05-204 | 214.6 | 866 | 71.05 | -58.54 | 9450 | 69.13 | -58.41 |
| DW05-205 | 266.67 | 866 | 69.47 | -57.86 | 11533 | 67.08 | -57.69 |
| DW05-206 | 73.9 | 1010 | 66.96 | -57.27 | 3966 | 67.57 | -56.58 |
| DW05-207 | 106.43 | 866 | 66.67 | -57.56 | 5123 | 67.53 | -56.54 |
