Current Project
| DAVIS STRAIT/W GREENLAND SHELF: GRC-01 | |
|---|---|
| Company: | TGS-NOPEC |
| Contractor: | TGS-NOPEC |
| Min Max Latitude: |
61.9 69.2 |
| Min Max Longitude: |
-63.6 -52.8 |
| Year: | 2001 |
| Descriptions: | 2828 KM NON-EXCLUSIVE 2-D SEISMIC SURVEY TYING DAVIS STRAIT CANADIAN WELLS TO OFFSHORE WEST GREENLAND PROSPECTS |
For more information on this project, please contact:
TGS
Suite 720 335 8th Avenue SW
Calgary, Alberta, Canada
Phone: (403) 781 1710
Fax: (403) 781 1700
E-mail:
Contact:
Title:
Website: http://www.tgs.com
Map and Table Data
number of wells on plot: 12

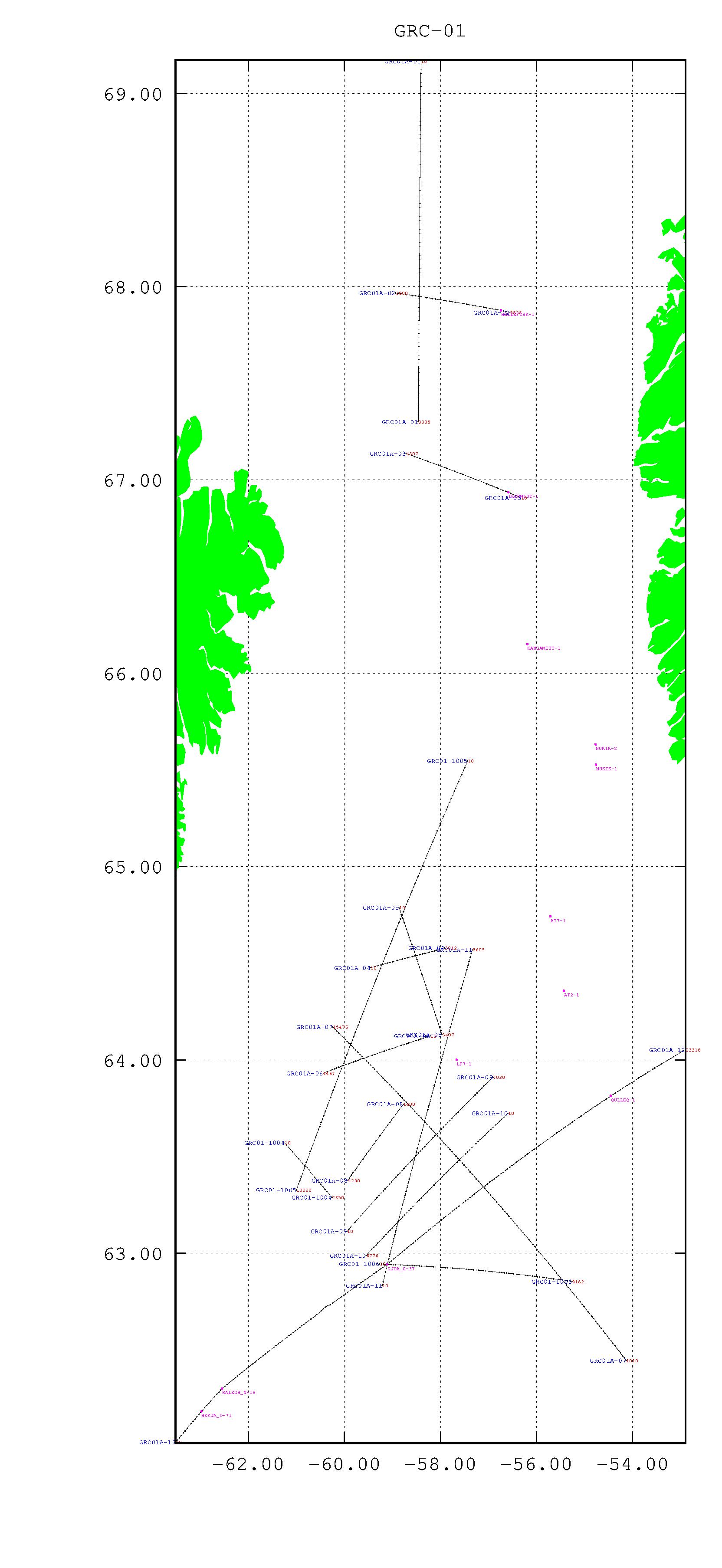

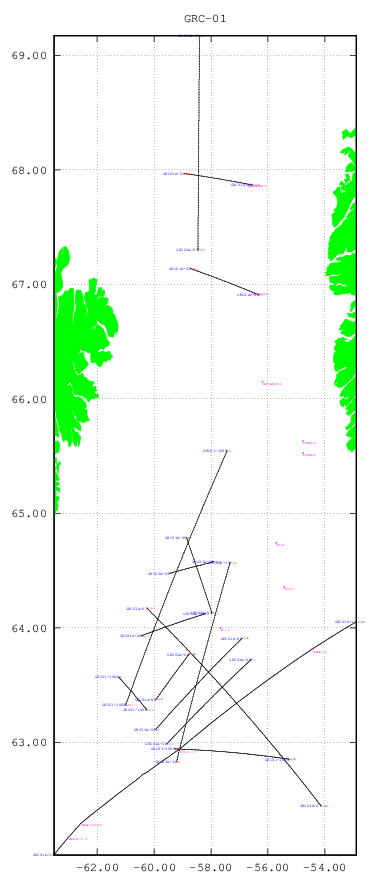

Download this plot in Postscript format. Click the plot for a large JPEG version.
15 records Returned
(All Coordinates | Data Accuracy)Export to Excel | Print Version (Wide Table Format)
| Line | Line Distance (kms) | Start Shotpoint | Lat of Start | Lon of Start | End Shotpoint | Lat of End | Lon of End |
|---|---|---|---|---|---|---|---|
| GRC01-1004 | 58.5 | 10 | 63.57 | -61.25 | 2350 | 63.29 | -60.26 |
| GRC01-1005 | 301.13 | 10 | 65.55 | -57.43 | 13055 | 63.33 | -61 |
| GRC01-1006 | 204.3 | 10 | 62.94 | -59.27 | 9182 | 62.85 | -55.26 |
| GRC01A-01 | 208.22 | 10 | 69.17 | -58.4 | 8339 | 67.3 | -58.46 |
| GRC01A-02 | 100.7 | 1800 | 67.97 | -58.94 | 5828 | 67.87 | -56.55 |
| GRC01A-03 | 107.43 | 10 | 66.91 | -56.32 | 4307 | 67.14 | -58.72 |
| GRC01A-04 | 75.04 | 10 | 64.48 | -59.46 | 3012 | 64.58 | -57.91 |
| GRC01A-05 | 84.92 | 10 | 64.79 | -58.86 | 3407 | 64.13 | -57.97 |
| GRC01A-06 | 111.42 | 10 | 64.12 | -58.21 | 4467 | 63.93 | -60.45 |
| GRC01A-07 | 361.65 | 1010 | 62.45 | -54.13 | 15476 | 64.17 | -60.25 |
| GRC01A-08 | 72.25 | 1400 | 63.77 | -58.78 | 4290 | 63.38 | -59.93 |
| GRC01A-09 | 175.5 | 10 | 63.11 | -59.95 | 7030 | 63.91 | -56.91 |
| GRC01A-10 | 169.15 | 10 | 63.72 | -56.59 | 6776 | 62.99 | -59.55 |
| GRC01A-11 | 214.87 | 10 | 62.83 | -59.21 | 8605 | 64.57 | -57.33 |
| GRC01A-12 | 582.19 | 10 | 62.02 | -63.51 | 23318 | 64.05 | -52.9 |
