| All Projects |
Current Project
| DAVIS STRAIT/W GREENLAND SHELF: GREEN-01 | |
|---|---|
| Company: | TGS-NOPEC |
| Contractor: | TGS-NOPEC |
| Min Max Latitude: |
67.2 69.3 |
| Min Max Longitude: |
-60.2 -55.5 |
| Year: | 2001 |
| Descriptions: | 904 KM 2-D SEISMIC SURVEY |
For more information on this project, please contact:
TGS
Suite 720 335 8th Avenue SW
Calgary, Alberta, Canada
Phone: (403) 781 1710
Fax: (403) 781 1700
E-mail:
Contact:
Title:
Website: http://www.tgs.com
Map and Table Data
number of wells on plot: 1

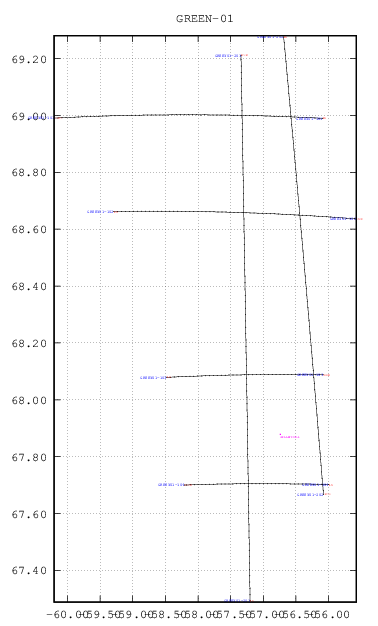

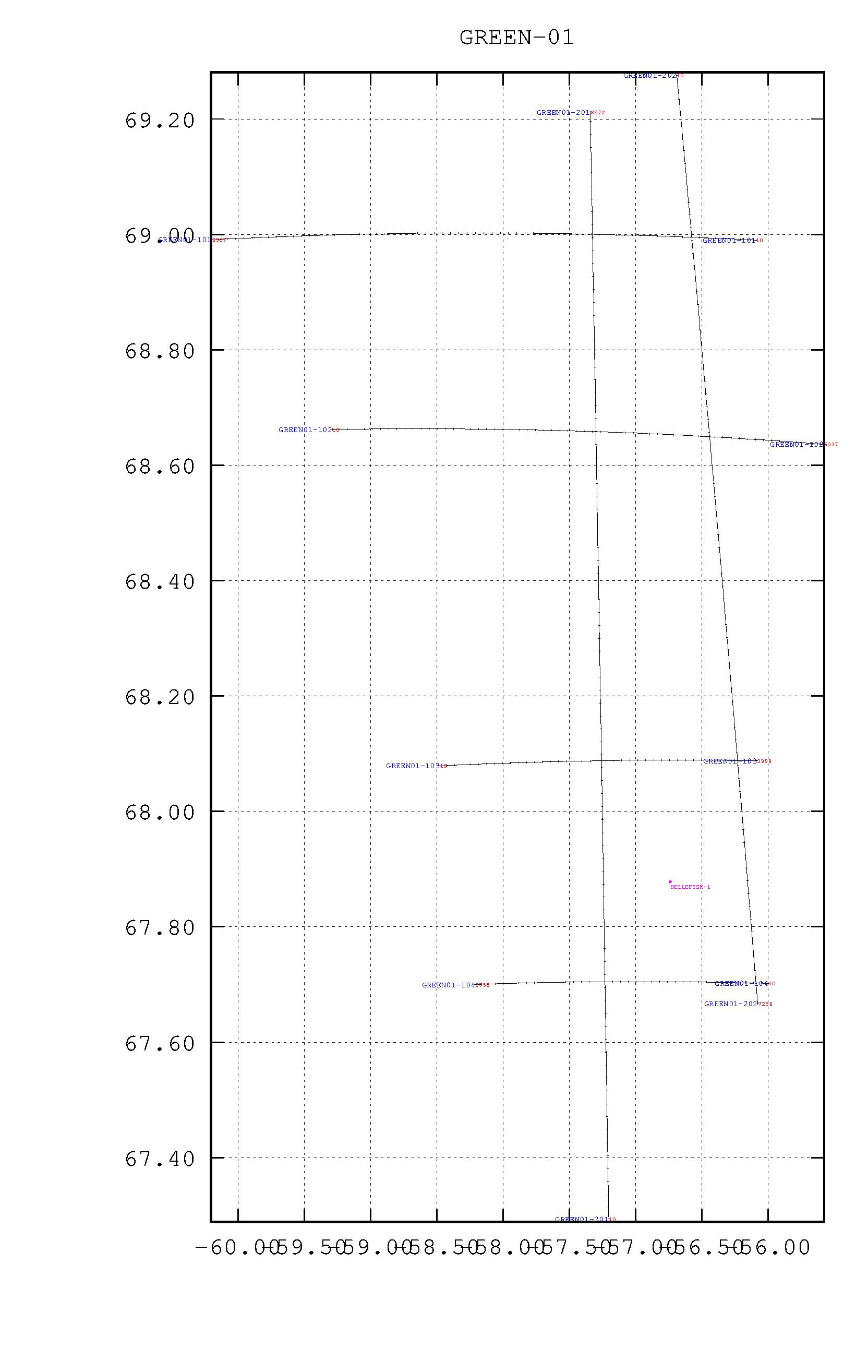

Download this plot in Postscript format. Click the plot for a large JPEG version.
6 records Returned
(All Coordinates | Data Accuracy)Export to Excel | Print Version (Wide Table Format)
| Line | Line Distance (kms) | Start Shotpoint | Lat of Start | Lon of Start | End Shotpoint | Lat of End | Lon of End |
|---|---|---|---|---|---|---|---|
| GREEN01-101 | 164.38 | 10 | 68.99 | -56.09 | 6587 | 69 | -60.2 |
| GREEN01-102 | 150.67 | 10 | 68.66 | -59.29 | 6037 | 68.64 | -55.58 |
| GREEN01-103 | 99.72 | 10 | 68.08 | -58.48 | 3999 | 68.09 | -56.08 |
| GREEN01-104 | 93.7 | 10 | 67.7 | -56 | 3758 | 67.7 | -58.21 |
| GREEN01-201 | 214.05 | 10 | 67.29 | -57.2 | 8572 | 69.21 | -57.34 |
| GREEN01-202 | 181.15 | 10 | 69.28 | -56.69 | 7256 | 67.67 | -56.08 |
