| All Projects |
Current Project
| DAVIS STRAIT/BAFFIN BAY/W GREENLAND SHELF: GREEN-02 | |
|---|---|
| Company: | TGS-NOPEC |
| Contractor: | TGS-NOPEC |
| Min Max Latitude: |
67.2 70.9 |
| Min Max Longitude: |
-60.8 -55 |
| Year: | 2002 |
| Descriptions: | 2417 KM NON-EXCLUSIVE 2-D SEISMIC SURVEY DESIGNED TO INFILL EARLIER TGS-NOPEC SURVEYS & TO ACQUIRE DATA WEST OF KAP FARVEL & DISCO ISLAND |
For more information on this project, please contact:
TGS
Suite 720 335 8th Avenue SW
Calgary, Alberta, Canada
Phone: (403) 781 1710
Fax: (403) 781 1700
E-mail:
Contact:
Title:
Website: http://www.tgs.com
Map and Table Data
number of wells on plot: 4

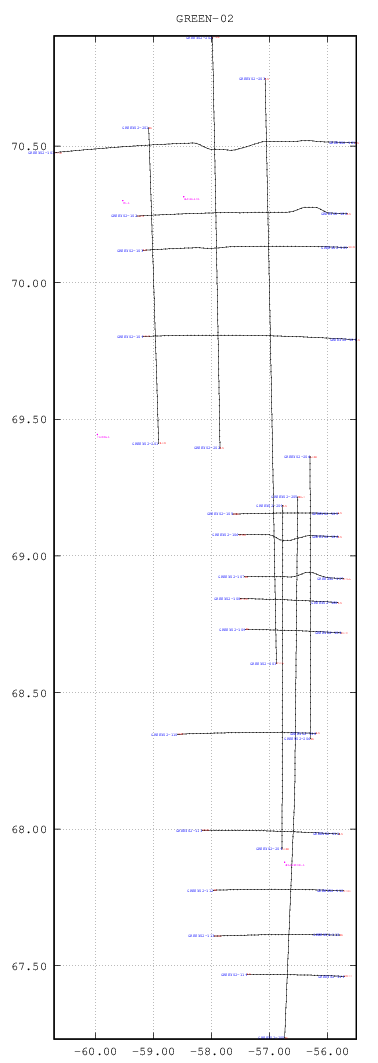

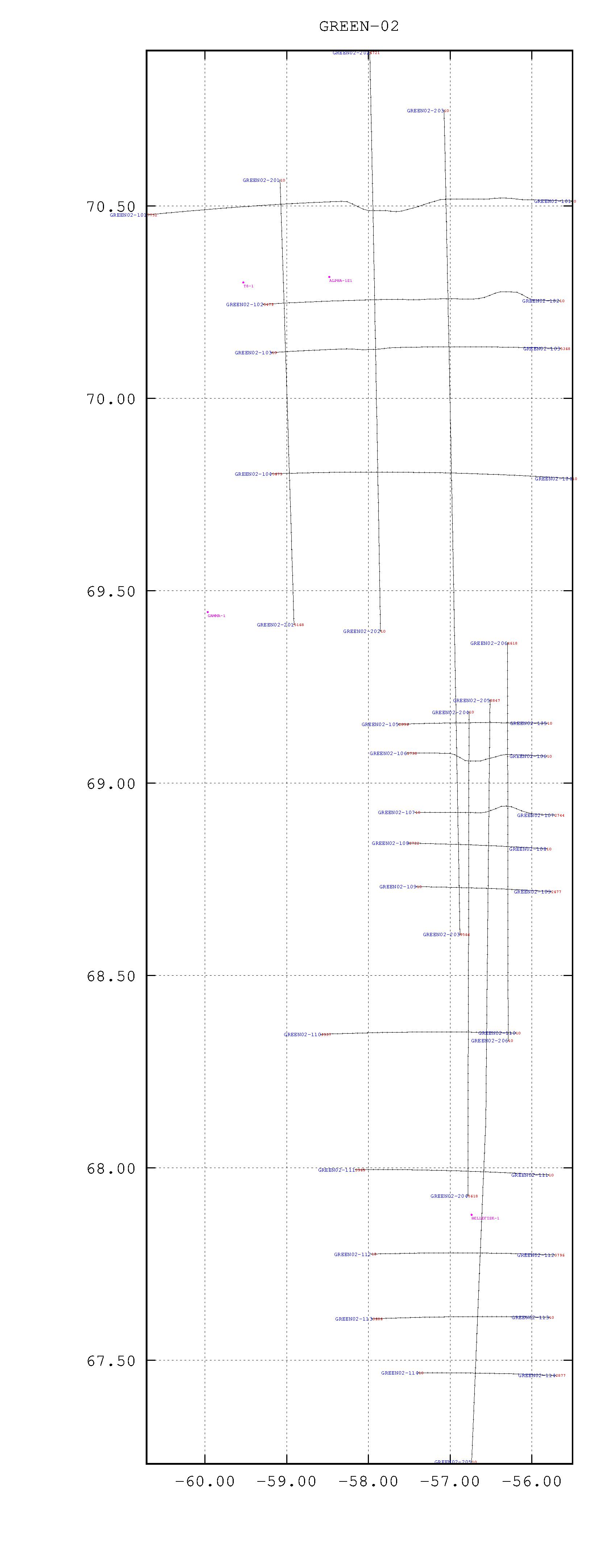

Download this plot in Postscript format. Click the plot for a large JPEG version.
20 records Returned
(All Coordinates | Data Accuracy)Export to Excel | Print Version (Wide Table Format)
| Line | Line Distance (kms) | Start Shotpoint | Lat of Start | Lon of Start | End Shotpoint | Lat of End | Lon of End |
|---|---|---|---|---|---|---|---|
| GREEN02-101 | 193.6 | 10 | 70.51 | -55.52 | 7752 | 70.48 | -60.71 |
| GREEN02-102 | 136.74 | 10 | 70.25 | -55.66 | 5479 | 70.28 | -59.29 |
| GREEN02-103 | 133.99 | 10 | 70.12 | -59.18 | 5368 | 70.13 | -55.65 |
| GREEN02-104 | 141.67 | 10 | 69.79 | -55.51 | 5675 | 69.81 | -59.18 |
| GREEN02-105 | 72.18 | 10 | 69.16 | -55.81 | 2896 | 69.15 | -57.63 |
| GREEN02-106 | 68.28 | 10 | 69.07 | -55.82 | 2738 | 69.06 | -57.53 |
| GREEN02-107 | 68.4 | 10 | 68.92 | -57.43 | 2744 | 68.94 | -55.73 |
| GREEN02-108 | 67.83 | 10 | 68.83 | -55.82 | 2722 | 68.84 | -57.5 |
| GREEN02-109 | 66.7 | 10 | 68.73 | -57.41 | 2677 | 68.72 | -55.76 |
| GREEN02-110 | 98.21 | 10 | 68.35 | -56.2 | 3937 | 68.35 | -58.58 |
| GREEN02-111 | 99.01 | 10 | 67.98 | -55.8 | 3969 | 68 | -58.16 |
| GREEN02-112 | 94.68 | 10 | 67.78 | -57.97 | 3796 | 67.77 | -55.72 |
| GREEN02-113 | 91.93 | 10 | 67.61 | -55.79 | 3686 | 67.61 | -57.95 |
| GREEN02-114 | 71.7 | 10 | 67.47 | -57.39 | 2877 | 67.46 | -55.71 |
| GREEN02-201 | 128.99 | 10 | 70.57 | -59.08 | 5168 | 69.41 | -58.91 |
| GREEN02-202 | 167.84 | 10 | 69.39 | -57.85 | 6721 | 70.9 | -57.98 |
| GREEN02-203 | 238.94 | 10 | 70.75 | -57.07 | 9564 | 68.61 | -56.88 |
| GREEN02-204 | 140.26 | 10 | 69.18 | -56.77 | 5618 | 67.93 | -56.78 |
| GREEN02-205 | 220.92 | 10 | 67.24 | -56.74 | 8847 | 69.22 | -56.51 |
| GREEN02-206 | 115.24 | 10 | 68.33 | -56.29 | 4618 | 69.36 | -56.3 |
