| All Projects |
Current Project
| DAVIS STRAIT/W GREENLAND SHELF: GREEN-99 | |
|---|---|
| Company: | TGS-NOPEC |
| Contractor: | GECO-PRAKLA |
| Min Max Latitude: |
63.7 68.1 |
| Min Max Longitude: |
-58 -53 |
| Year: | 1999 |
| Descriptions: | 2897 KM NON-EXCLUSIVE REGIONAL 2-D SEISMIC SURVEY |
For more information on this project, please contact:
TGS
Suite 720 335 8th Avenue SW
Calgary, Alberta, Canada
Phone: (403) 781 1710
Fax: (403) 781 1700
E-mail:
Contact:
Title:
Website: http://www.tgs.com
Map and Table Data
number of wells on plot: 9

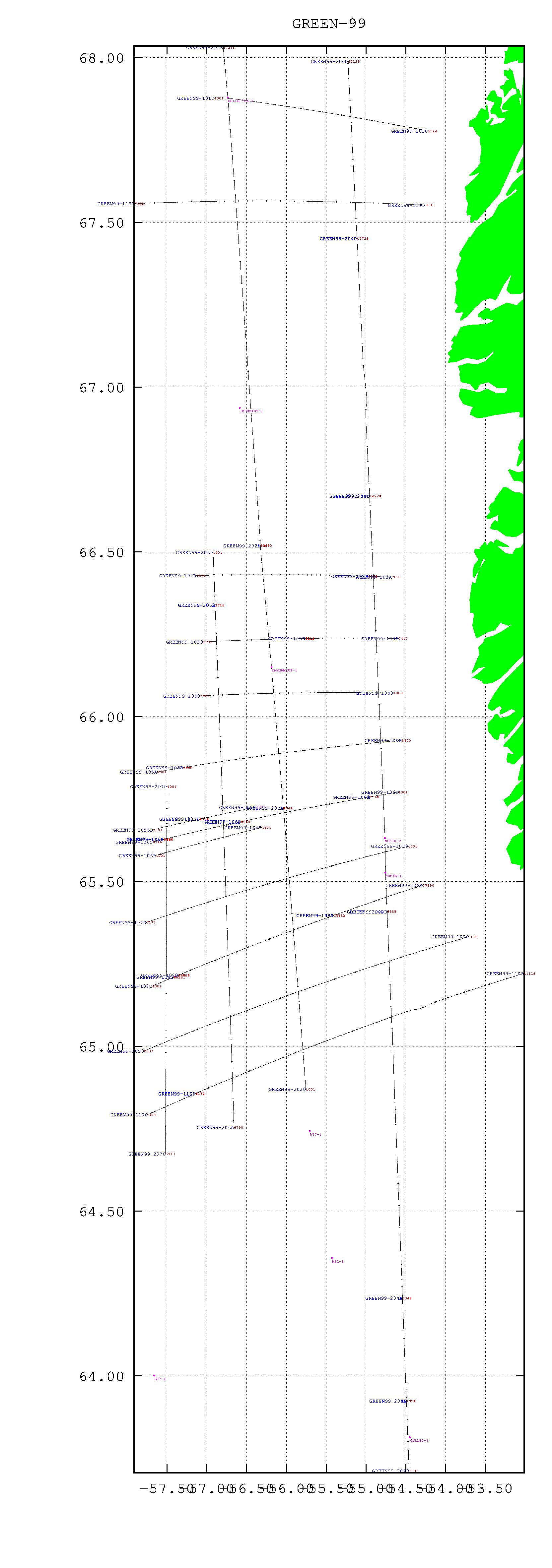

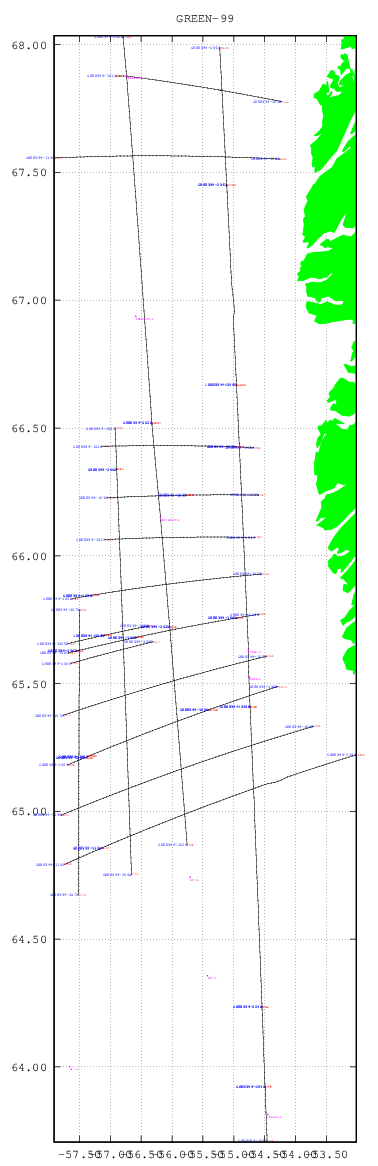

Download this plot in Postscript format. Click the plot for a large JPEG version.
36 records Returned
(All Coordinates | Data Accuracy)Export to Excel | Print Version (Wide Table Format)
| Line | Line Distance (kms) | Start Shotpoint | Lat of Start | Lon of Start | End Shotpoint | Lat of End | Lon of End |
|---|---|---|---|---|---|---|---|
| GREEN99-1010 | 113.59 | 1001 | 67.88 | -56.91 | 6544 | 67.78 | -54.22 |
| GREEN99-102A | 13.3 | 2001 | 66.42 | -54.68 | 2533 | 66.43 | -54.97 |
| GREEN99-102B | 96.46 | 3534 | 66.43 | -54.97 | 7391 | 66.43 | -57.13 |
| GREEN99-1030 | 57.75 | 1001 | 66.23 | -57.05 | 3310 | 66.24 | -55.76 |
| GREEN99-103B | 52.62 | 5311 | 66.24 | -55.76 | 7415 | 66.24 | -54.59 |
| GREEN99-1040 | 109.89 | 1000 | 66.07 | -54.66 | 5403 | 66.06 | -57.08 |
| GREEN99-1055 | 32.81 | 1001 | 65.73 | -56.38 | 3313 | 65.69 | -57.09 |
| GREEN99-1055B | 27.09 | 4314 | 65.69 | -57.09 | 5397 | 65.66 | -57.68 |
| GREEN99-105A | 14.96 | 2001 | 65.83 | -57.62 | 2599 | 65.85 | -57.3 |
| GREEN99-105B | 125.55 | 3600 | 65.85 | -57.3 | 8620 | 65.93 | -54.55 |
| GREEN99-1060 | 16.56 | 1001 | 65.77 | -54.59 | 1665 | 65.76 | -54.95 |
| GREEN99-1065 | 61.87 | 1001 | 65.58 | -57.64 | 3475 | 65.66 | -56.31 |
| GREEN99-106A | 74.88 | 2666 | 65.76 | -54.95 | 5660 | 65.68 | -56.57 |
| GREEN99-106B | 44.98 | 6661 | 65.68 | -56.57 | 8464 | 65.63 | -57.54 |
| GREEN99-106C | 6.28 | 9465 | 65.63 | -57.55 | 9716 | 65.62 | -57.68 |
| GREEN99-1070 | 154.45 | 1001 | 65.61 | -54.47 | 7177 | 65.38 | -57.76 |
| GREEN99-1080 | 93.26 | 21001 | 65.22 | -57.36 | 24730 | 65.4 | -55.41 |
| GREEN99-108A | 52.99 | 35731 | 65.4 | -55.41 | 37850 | 65.49 | -54.29 |
| GREEN99-108C | 12.98 | 9001 | 65.18 | -57.69 | 9520 | 65.21 | -57.42 |
| GREEN99-108D | 2.7 | 10521 | 65.21 | -57.42 | 10629 | 65.22 | -57.36 |
| GREEN99-1090 | 195.11 | 1001 | 65.33 | -53.71 | 8803 | 64.99 | -57.79 |
| GREEN99-1100 | 29.38 | 1001 | 64.79 | -57.75 | 2176 | 64.86 | -57.14 |
| GREEN99-110A | 198.52 | 3177 | 64.86 | -57.14 | 11118 | 65.22 | -53.02 |
| GREEN99-1190 | 155.56 | 1001 | 67.55 | -54.26 | 7222 | 67.56 | -57.91 |
| GREEN99-2020 | 96.01 | 1001 | 64.87 | -55.76 | 4840 | 65.72 | -56.04 |
| GREEN99-202A | 89.73 | 5841 | 65.72 | -56.04 | 9429 | 66.52 | -56.33 |
| GREEN99-202B | 169.76 | 10430 | 66.52 | -56.33 | 17218 | 68.03 | -56.8 |
| GREEN99-2040 | 23.72 | 1001 | 63.71 | -54.46 | 1950 | 63.92 | -54.49 |
| GREEN99-204A | 34.85 | 1951 | 63.92 | -54.49 | 3345 | 64.24 | -54.54 |
| GREEN99-204B | 131.03 | 3346 | 64.24 | -54.54 | 8587 | 65.41 | -54.74 |
| GREEN99-204BB | 140.96 | 8588 | 65.41 | -54.74 | 14227 | 66.67 | -54.96 |
| GREEN99-204C | 87.38 | 14228 | 66.67 | -54.96 | 17723 | 67.45 | -55.11 |
| GREEN99-204D | 60.1 | 17724 | 67.45 | -55.11 | 20128 | 67.99 | -55.23 |
| GREEN99-2060 | 17.86 | 1001 | 66.5 | -56.92 | 1715 | 66.34 | -56.9 |
| GREEN99-206A | 177.05 | 2716 | 66.34 | -56.9 | 9795 | 64.75 | -56.66 |
| GREEN99-2070 | 124.27 | 1001 | 65.79 | -57.5 | 5970 | 64.67 | -57.52 |
